Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

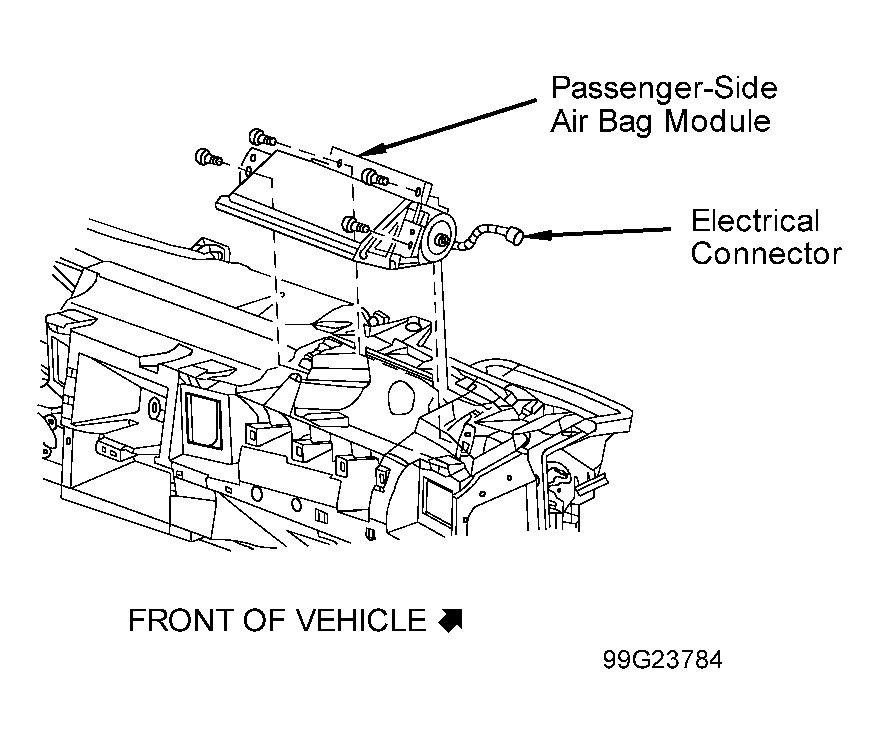

  2. Remove instrument panel trim pad. See INSTRUMENT PANEL TRIM PAD  under REMOVAL & INSTALLATION. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector and disconnect connector. See Figure. Remove passenger-side air bag module mounting bolts. Remove passenger-side air bag module from cross car beam.
  3. To install, reverse removal procedure. Tighten air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
