Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to Transaxle Replacement .

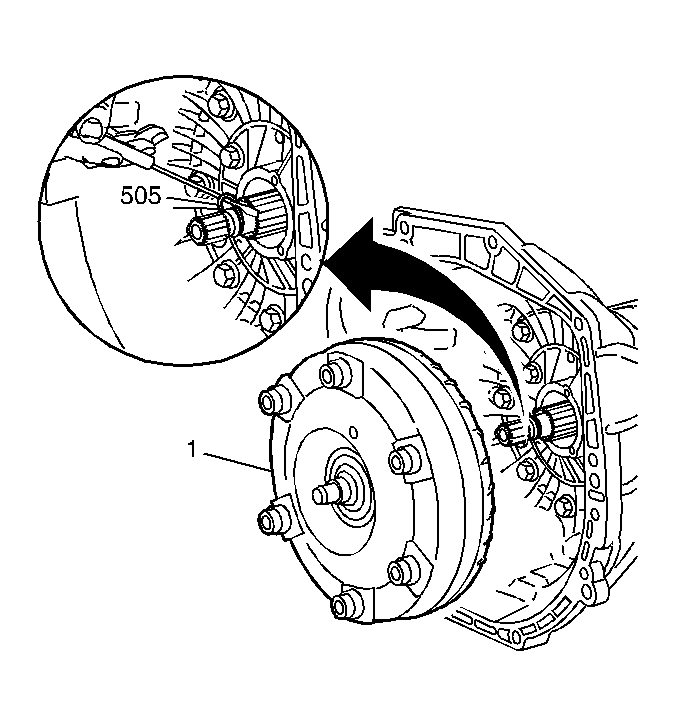

    2. Fig 1: Removing/Installing Torque Converter From Transmission
    GM174736Courtesy of GENERAL MOTORS CORP.
  2. Remove the torque converter (1) from transmission.
  3. Remove the following from the torque converter:
    1. The torque converter seal bolts.
    2. The torque converter seal.
  4. Remove the input shaft seal from input shaft.
