Instrument Cluster Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

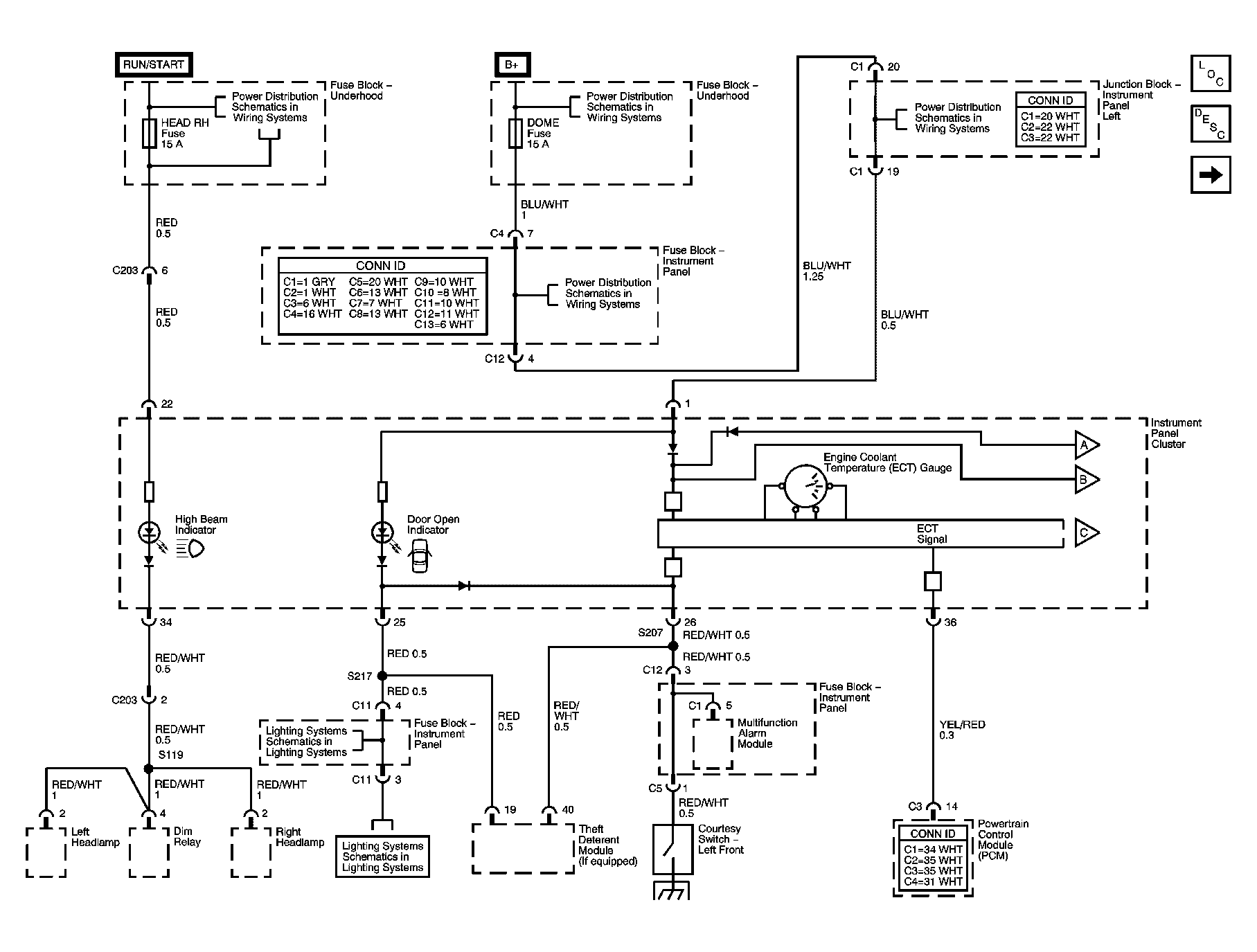

Fig 1: High Beam, Door Open Indicators and Engine Coolant Temperature (ECT) Gauge Schematic

Courtesy of GENERAL MOTORS CORP.

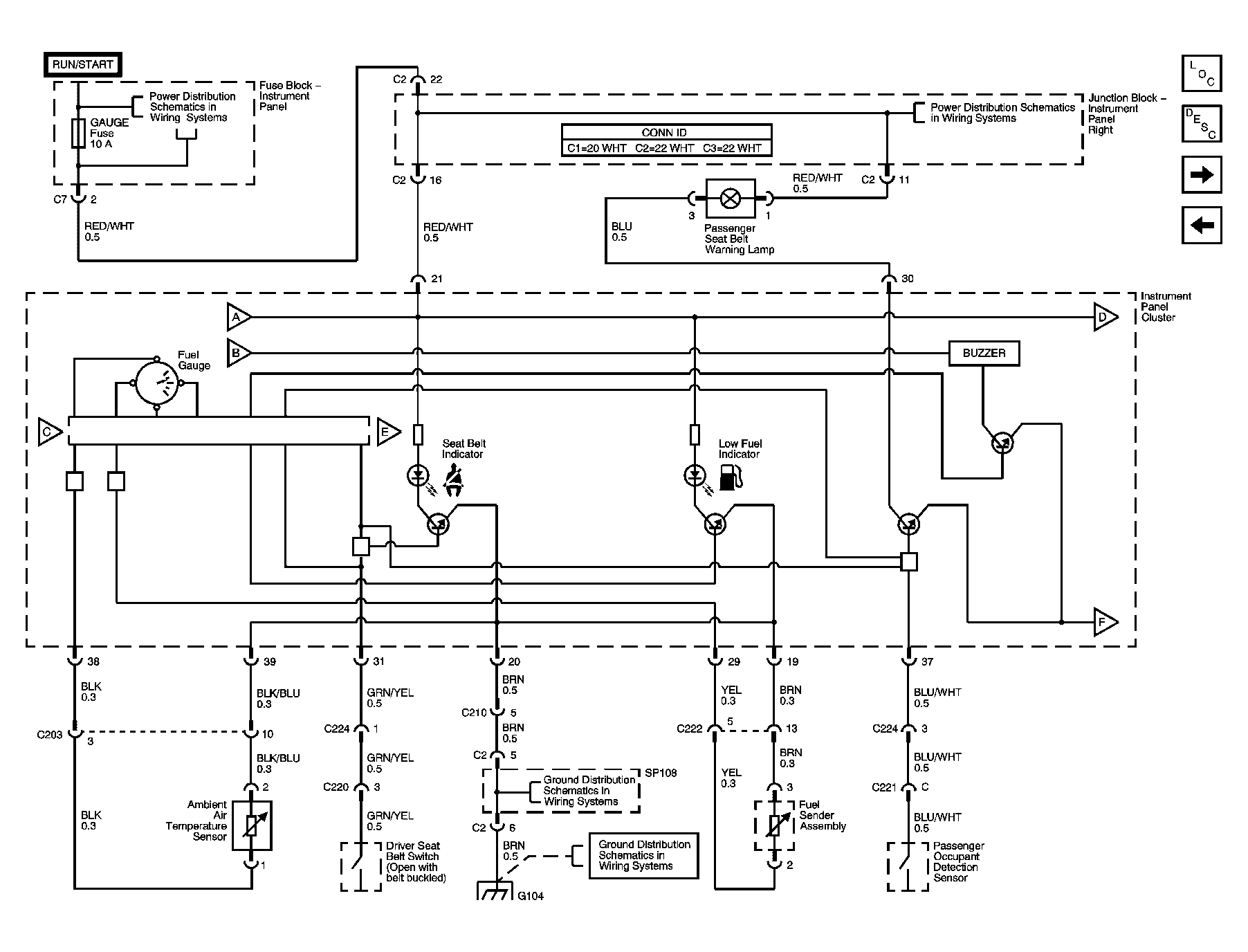

Fig 2: Fuel Gauge, Seat Belt, Low Fuel Indicators and Seat Belt Buzzer Schematic

Courtesy of GENERAL MOTORS CORP.

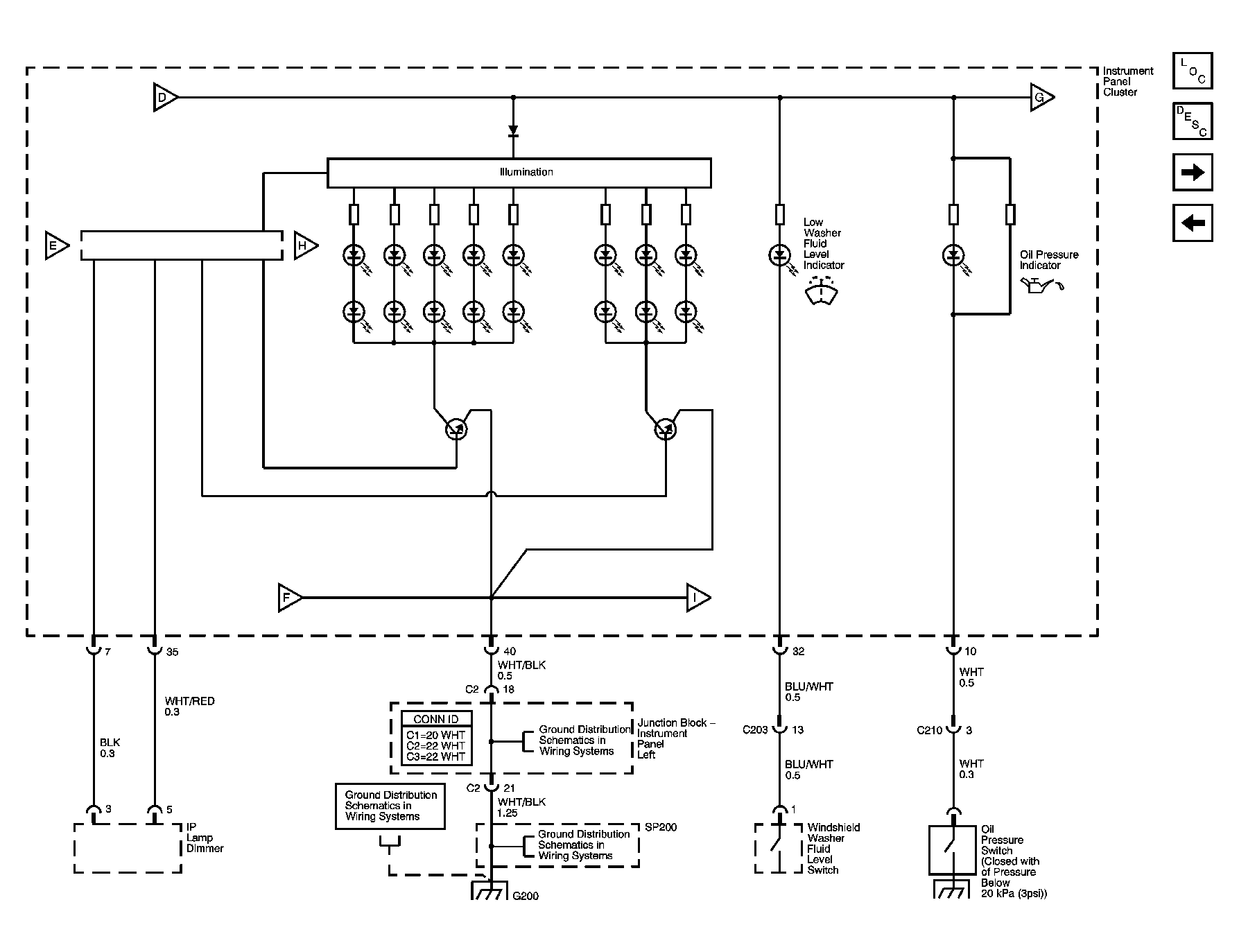

Fig 3: IP Illumination, Low Washer Fluid, Oil Pressure Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

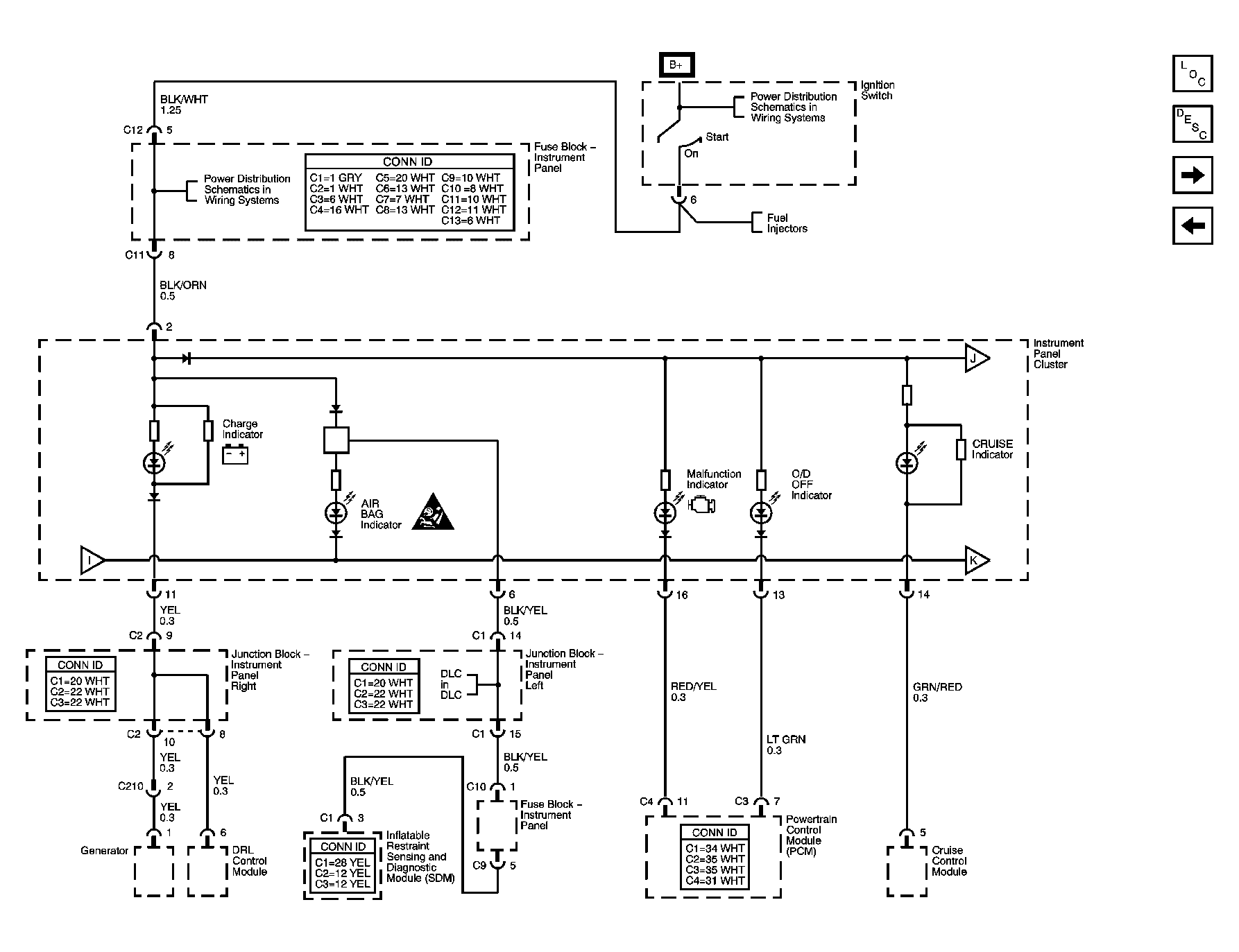

Fig 4: Charge, Air Bag, Malfunction, O/D Off, cruise Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

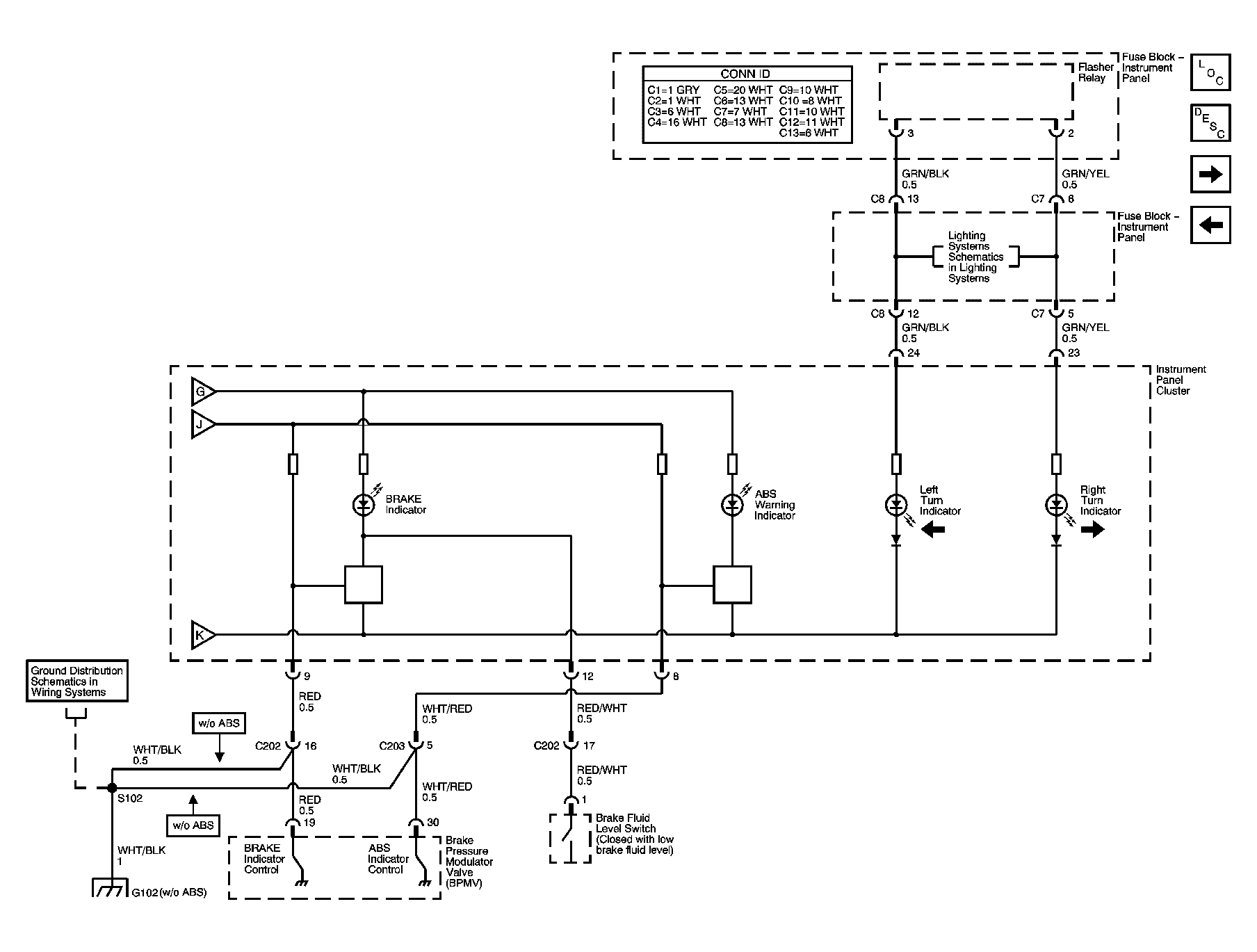

Fig 5: Brake, ABS, Turn Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

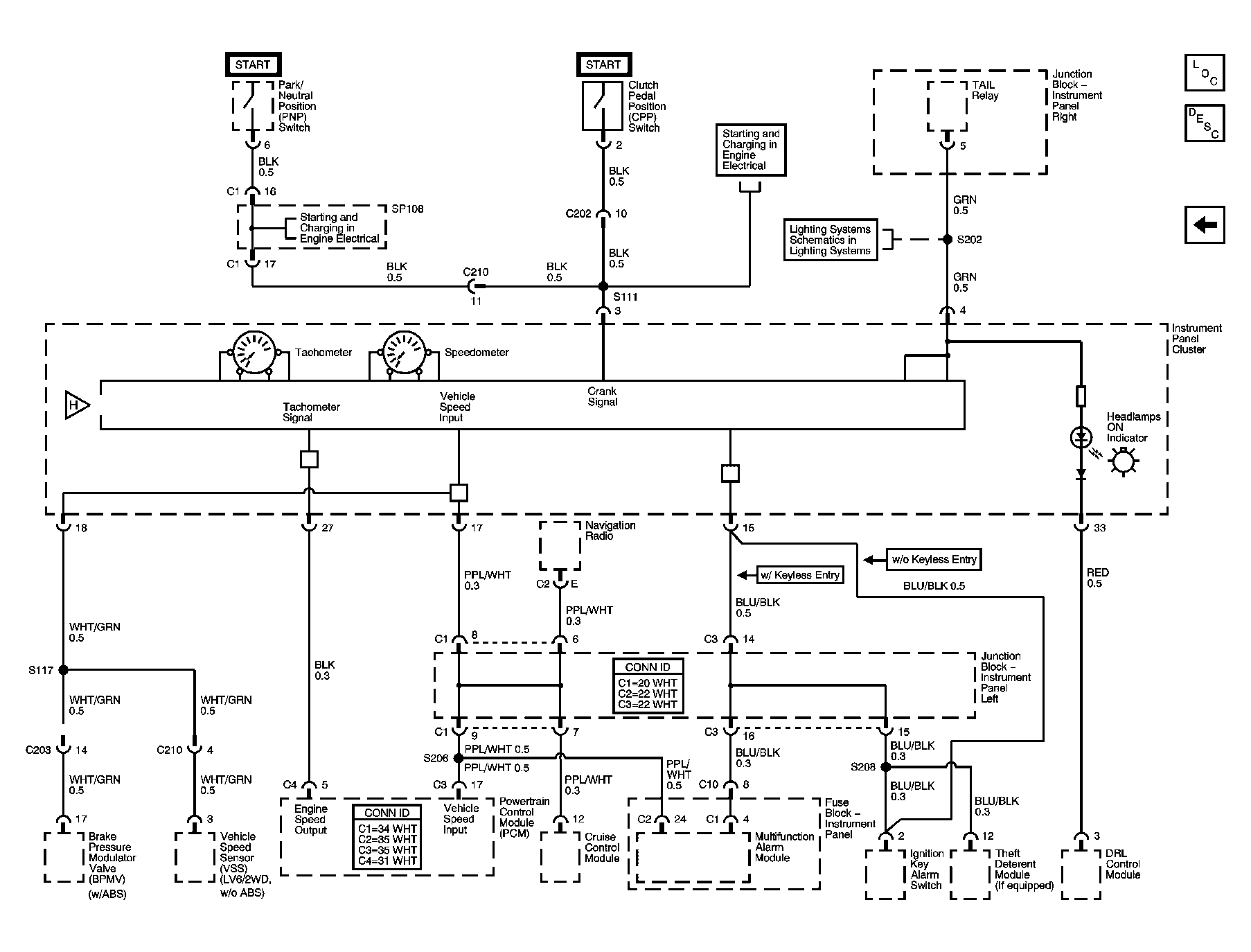

Fig 6: Tachometer, Speedometer, Headlamps On Indicator Schematic

Courtesy of GENERAL MOTORS CORP.
