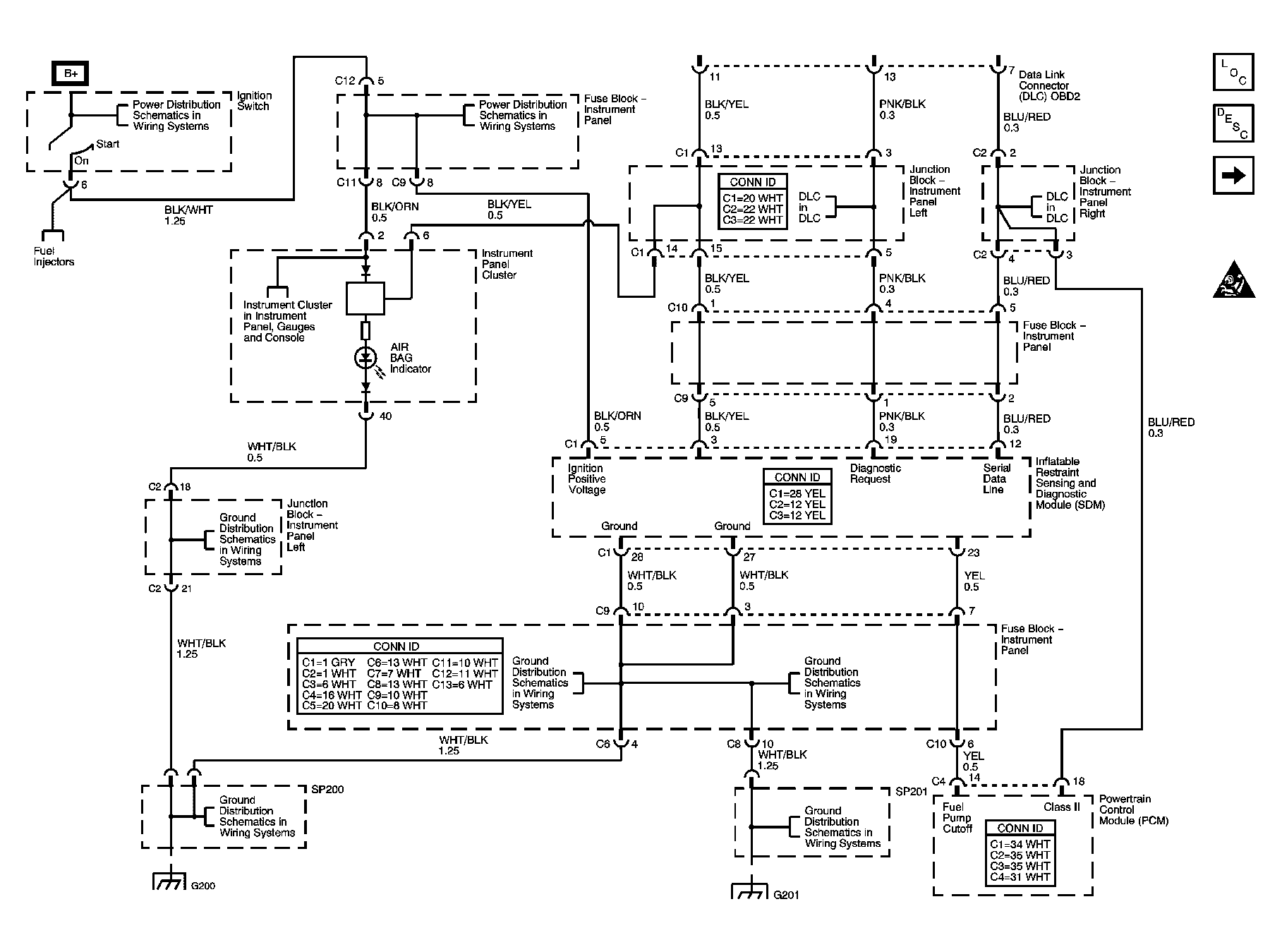

Fig 1: Sensing And Diagnostic Module (SDM), Air Bag Indicator Schematic
Courtesy of GENERAL MOTORS CORP.

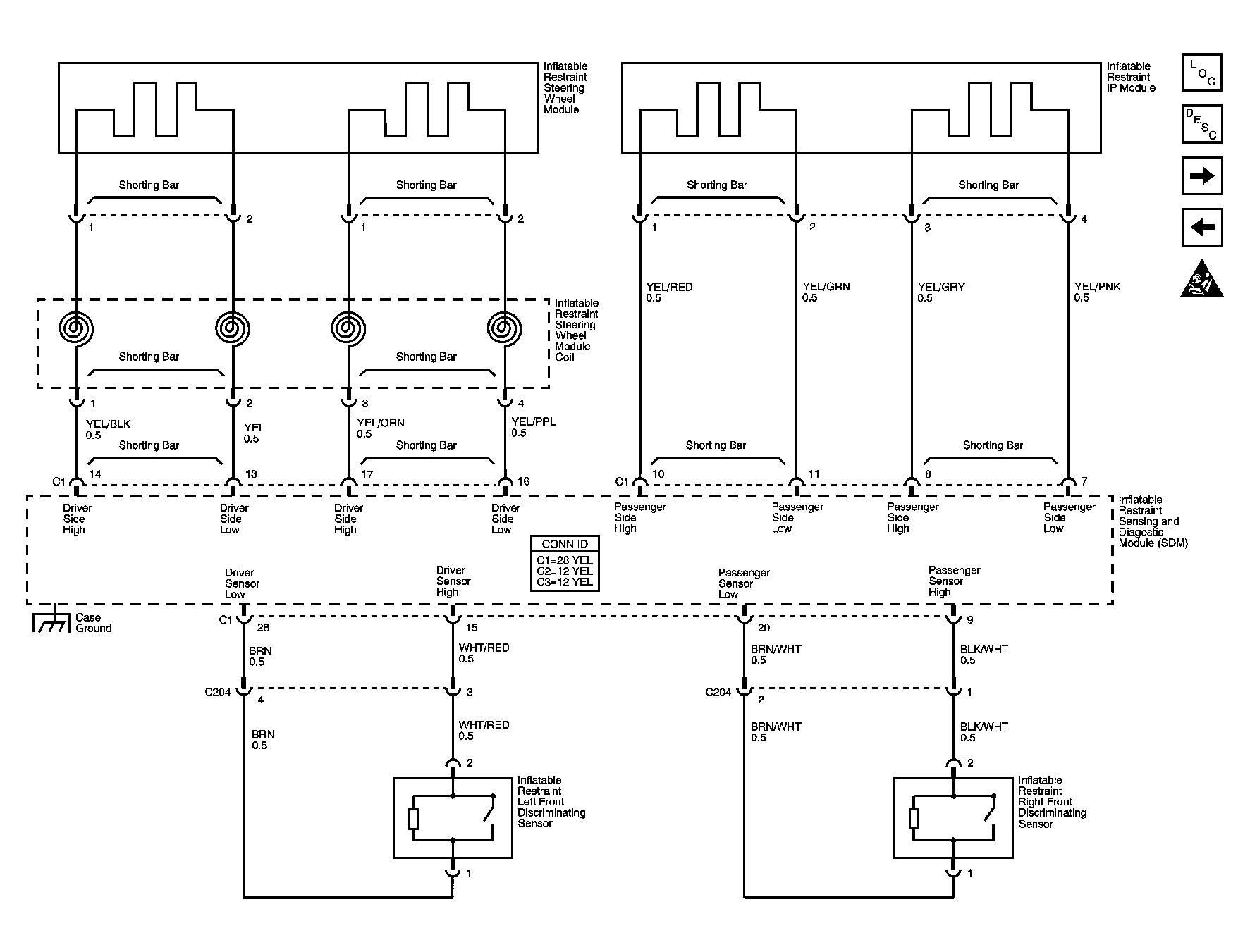

Fig 2: Steering Wheel Module, IP Module, Front Discriminating Sensors, SDM Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: SDM, Side Impact Sensors And Seat Modules Schematic
Courtesy of GENERAL MOTORS CORP.

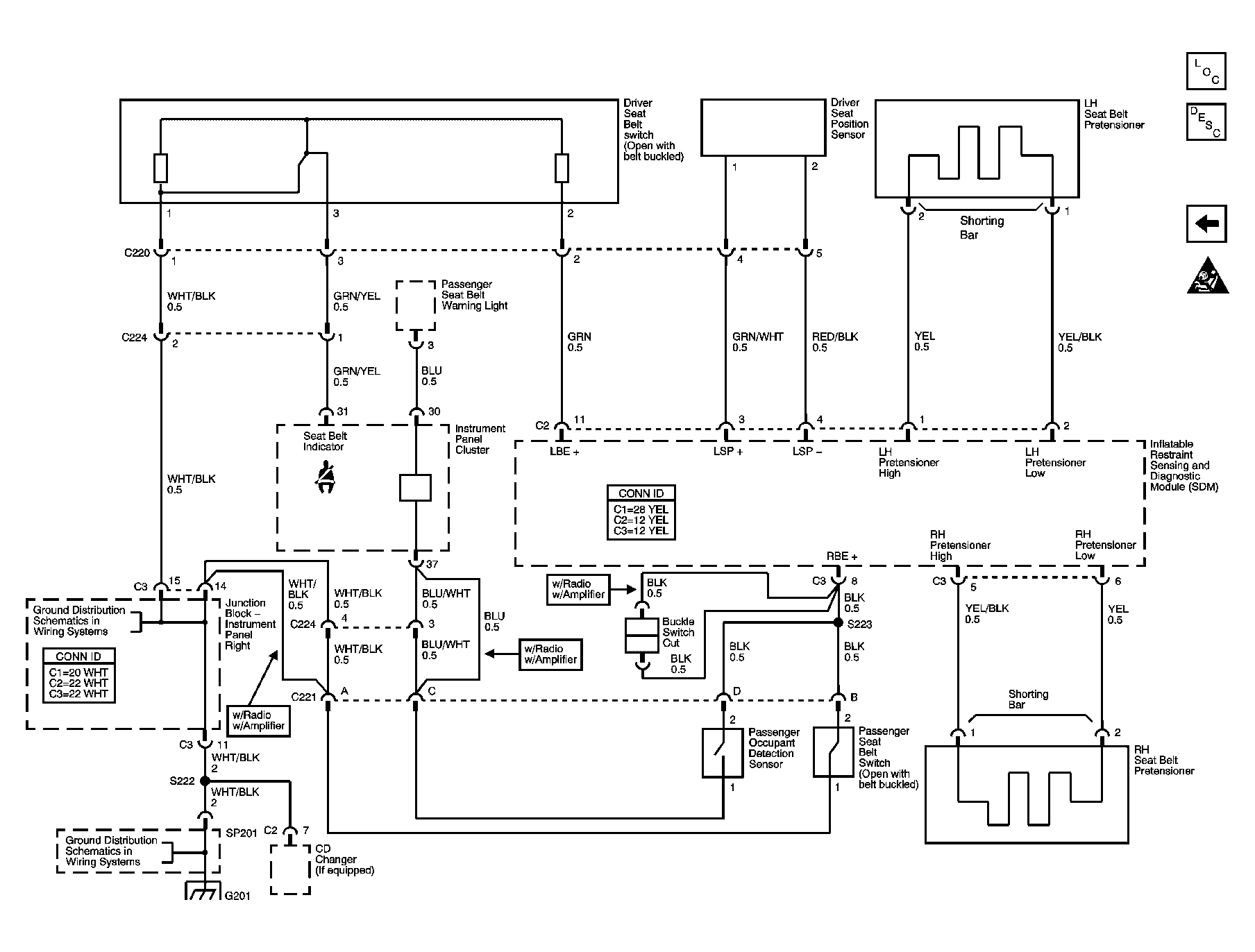

Fig 4: SDM, Pretensioners, Seat Belt Switches, Seat Position And Occupant Sensors Schematic
