Interior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

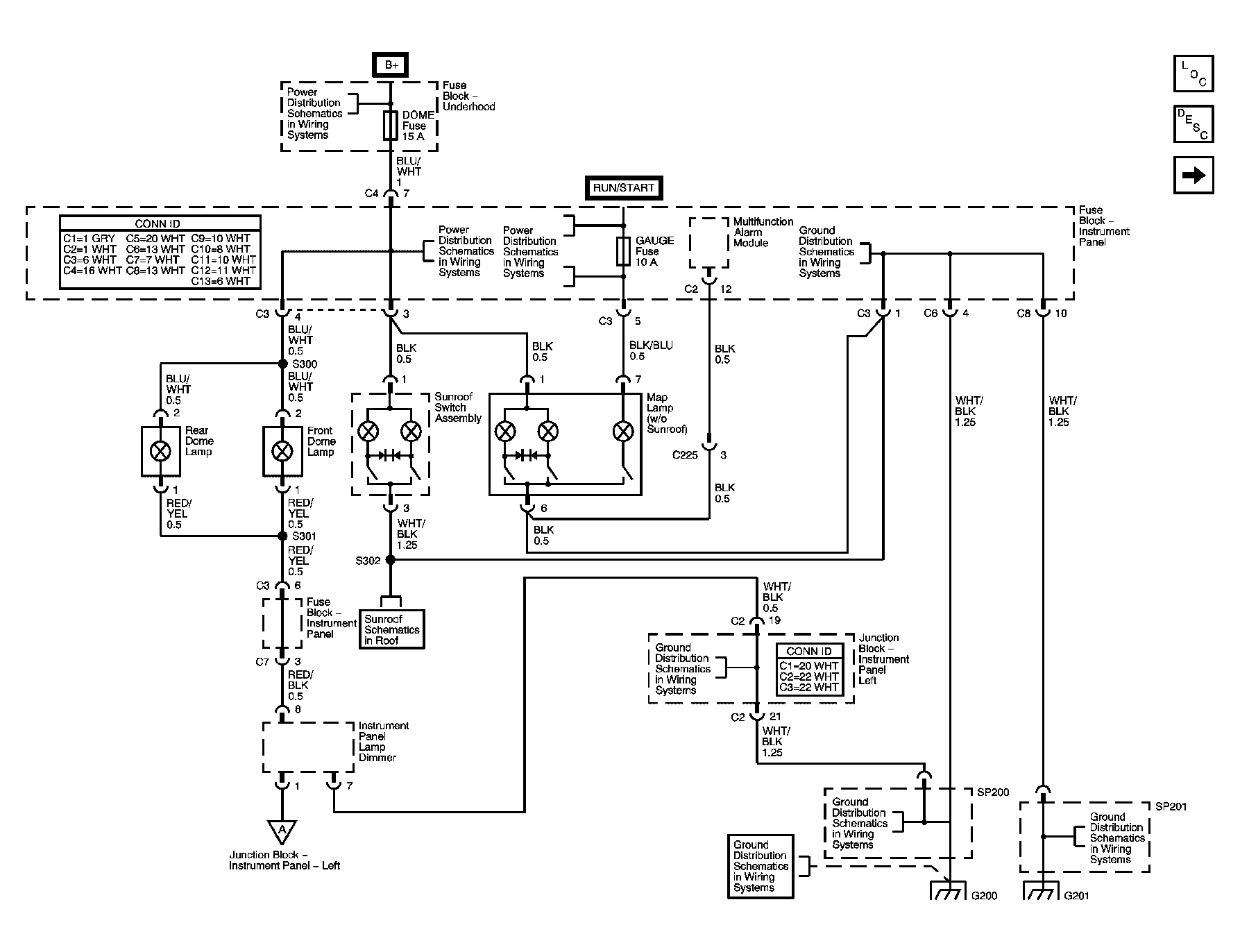

Fig 1: Dome/Courtesy Lamps Schematic
GM1236334Courtesy of GENERAL MOTORS CORP.

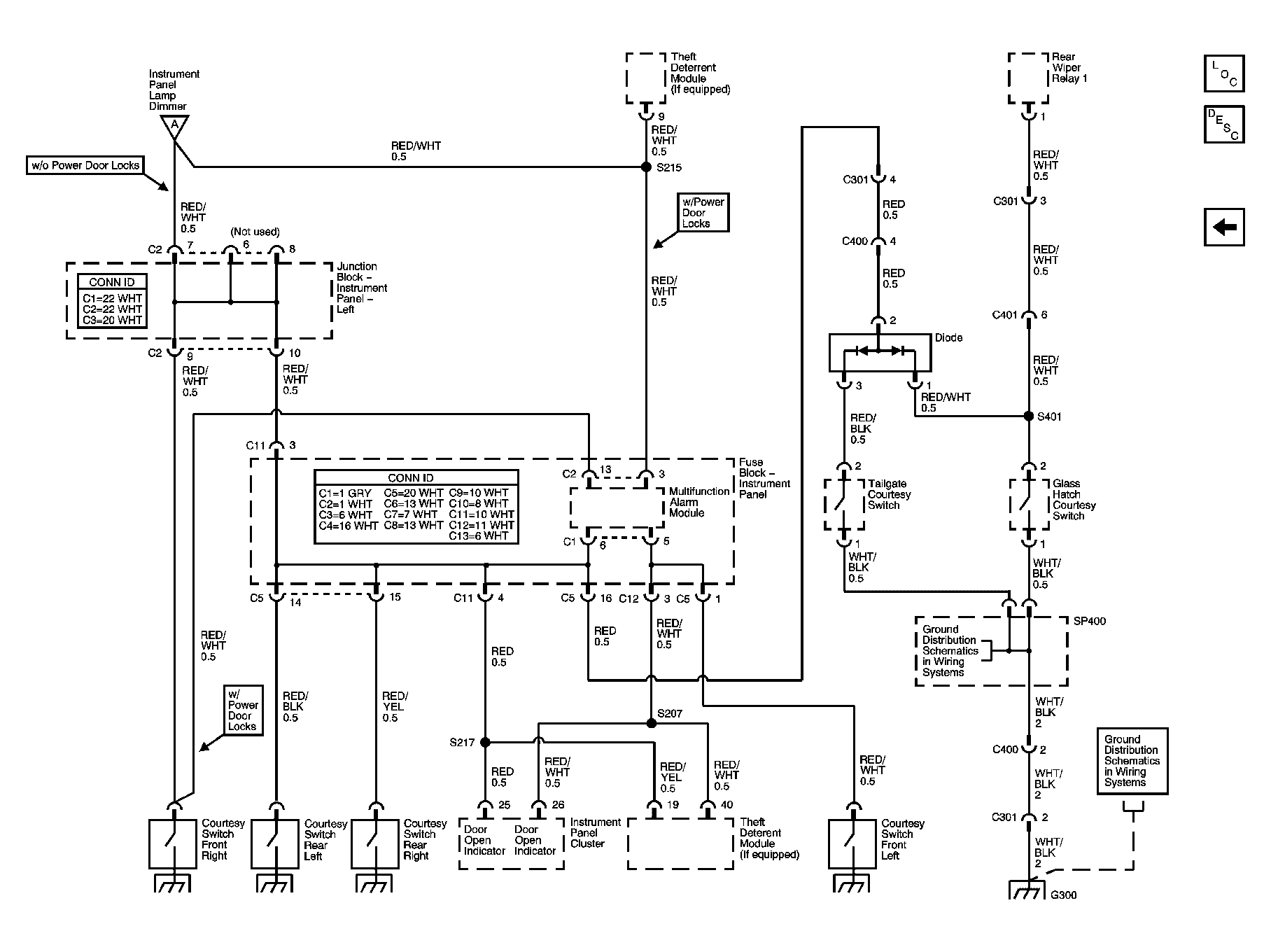

Fig 2: Dome/Courtesy Lamp Switches Schematic
GM785625Courtesy of GENERAL MOTORS CORP.
