Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

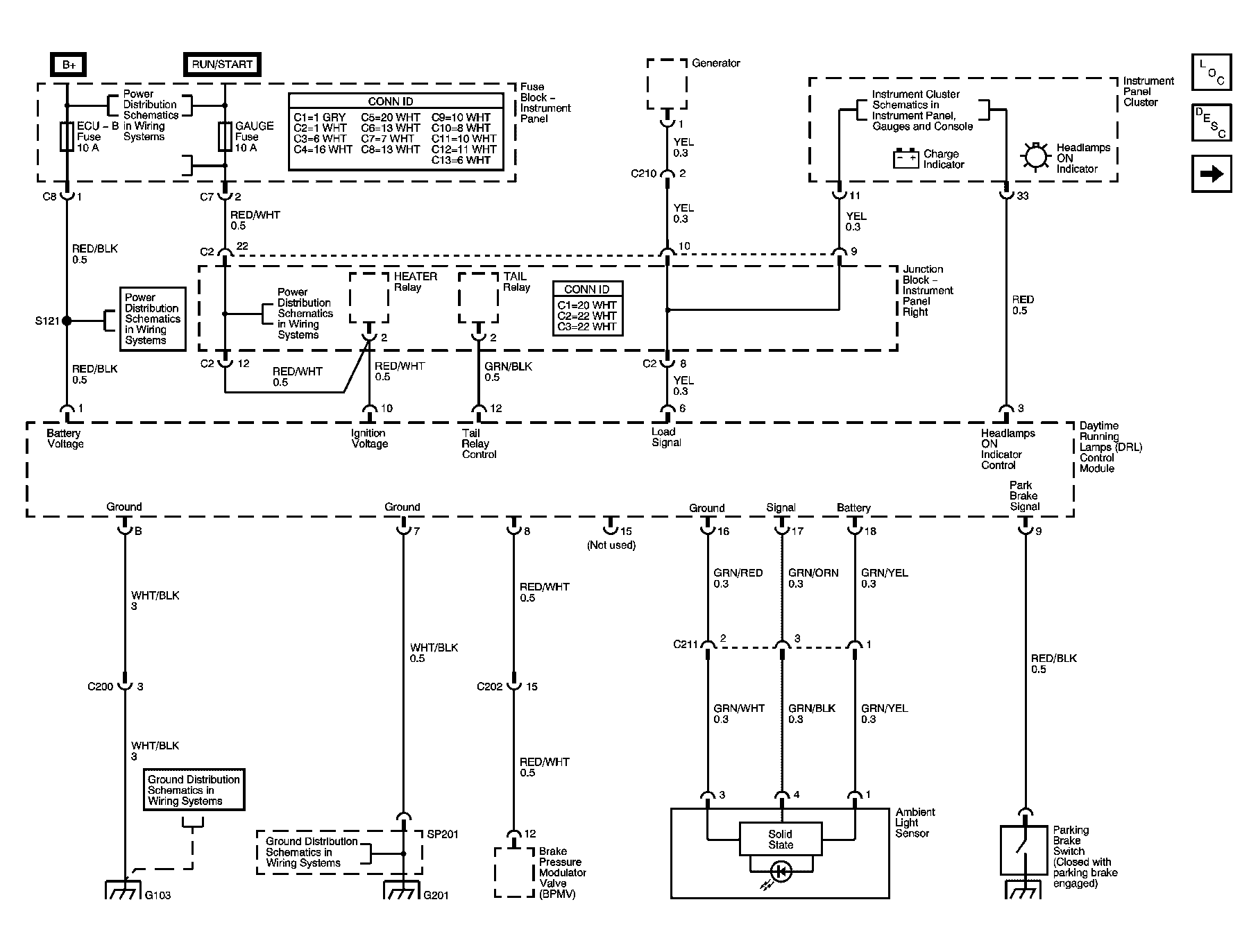

Fig 1: DRL Control Module Schematic, Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

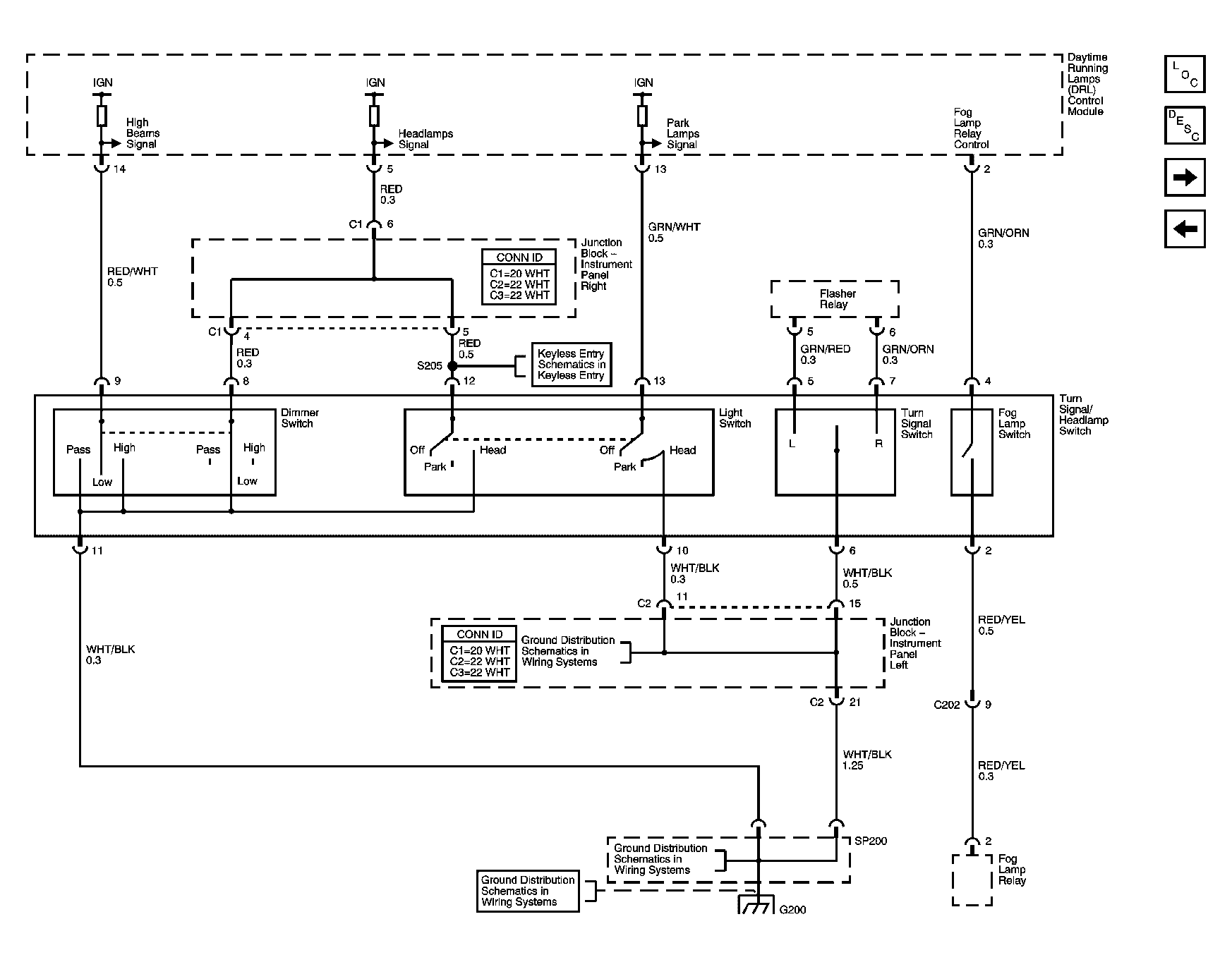

Fig 2: Turn Signal/Headlamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

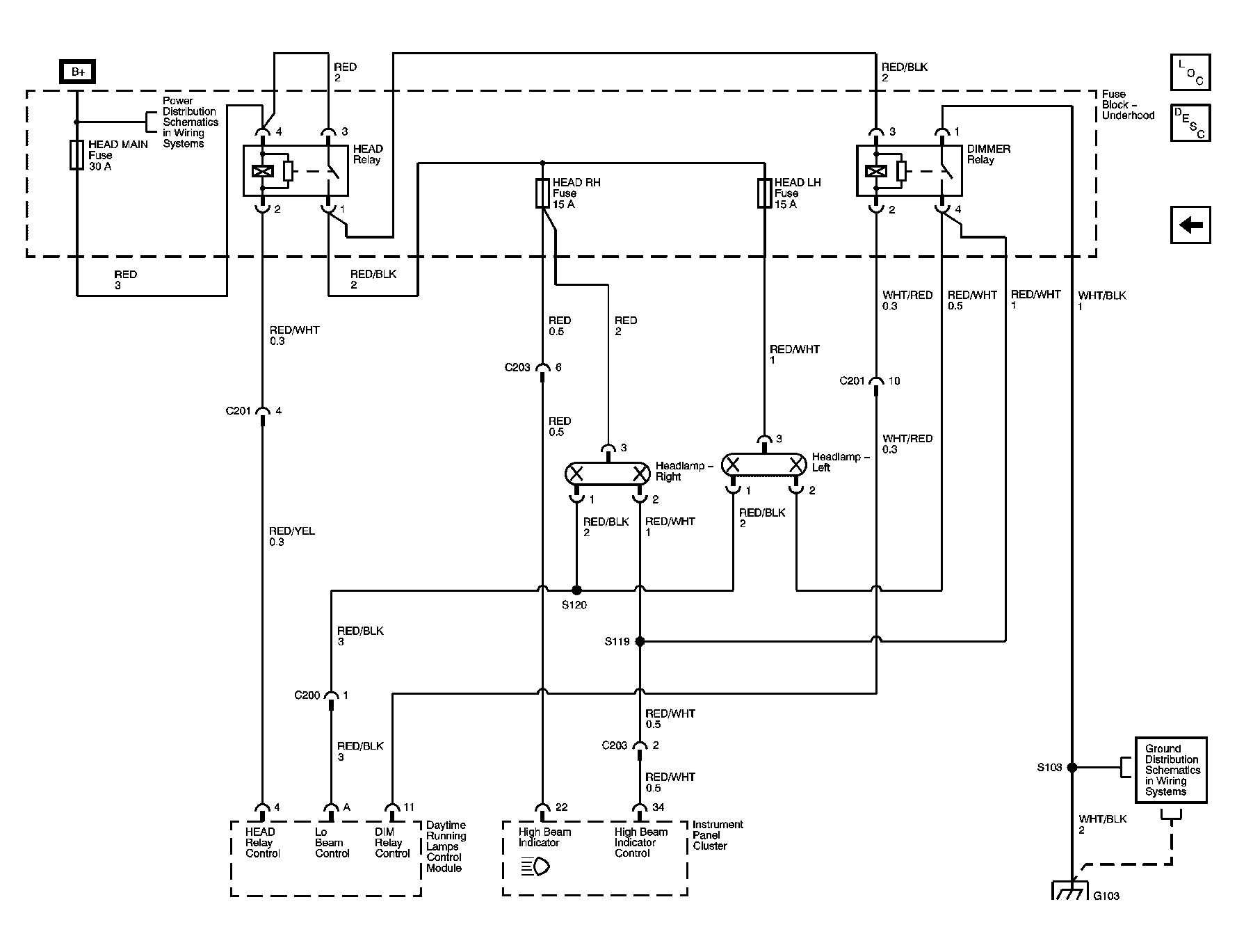

Fig 3: Headlamps Schematic

Courtesy of GENERAL MOTORS CORP.
