Exterior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

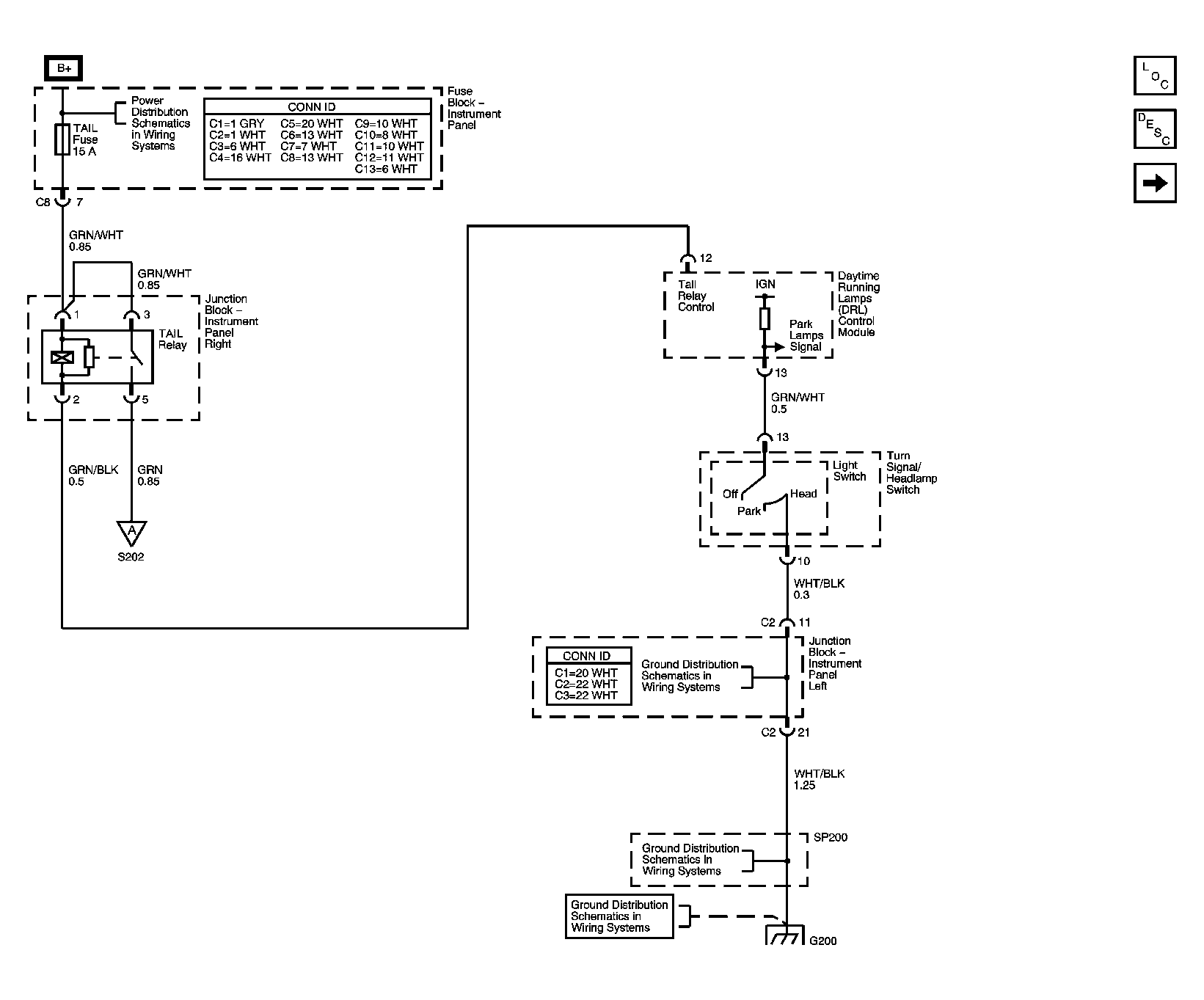

Fig 1: Tail Relay, Turn Signal/Headlamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

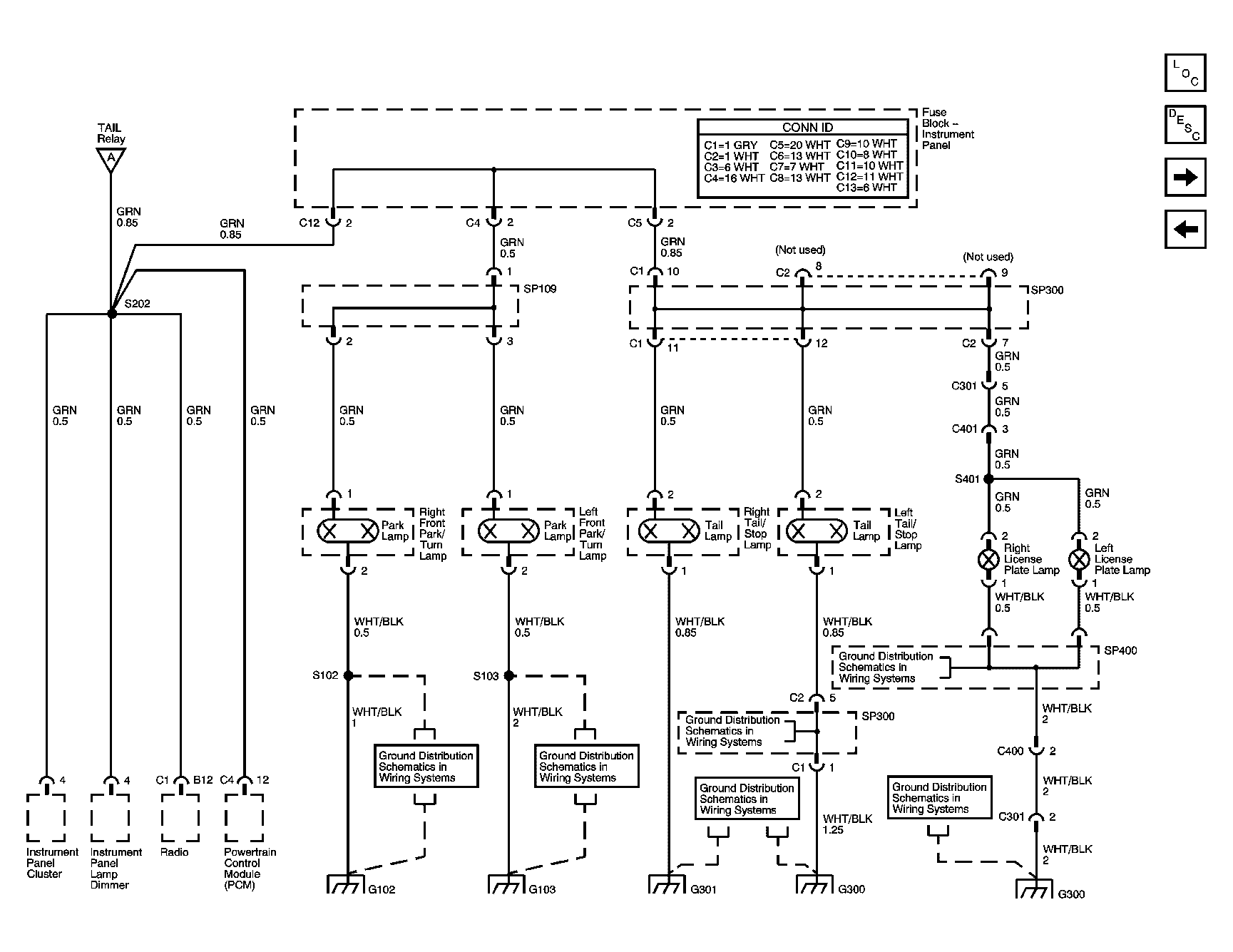

Fig 2: Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

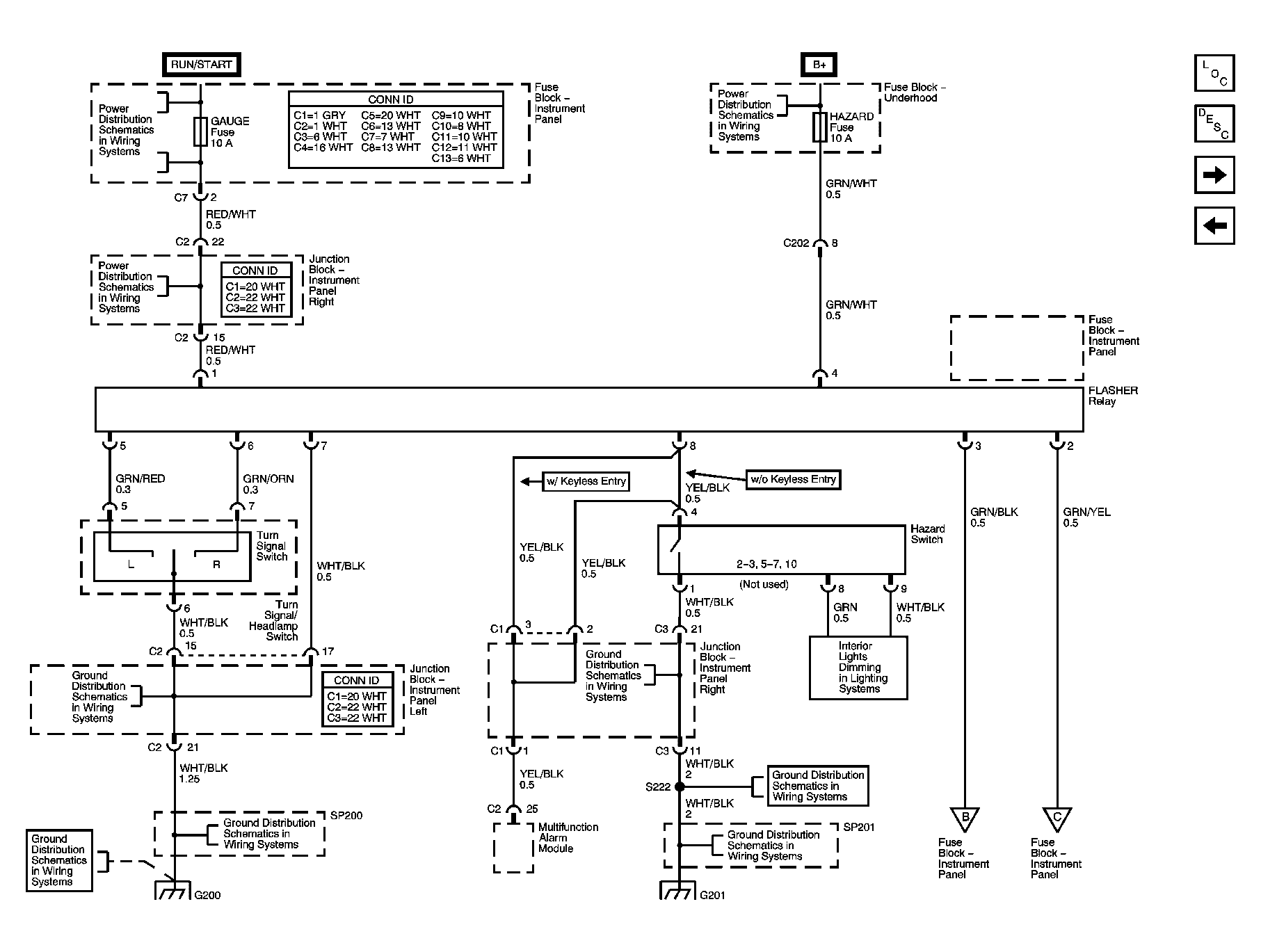

Fig 3: Turn Signal/Headlamp Switch, Hazard Switch, Flasher Relay Schematic

Courtesy of GENERAL MOTORS CORP.

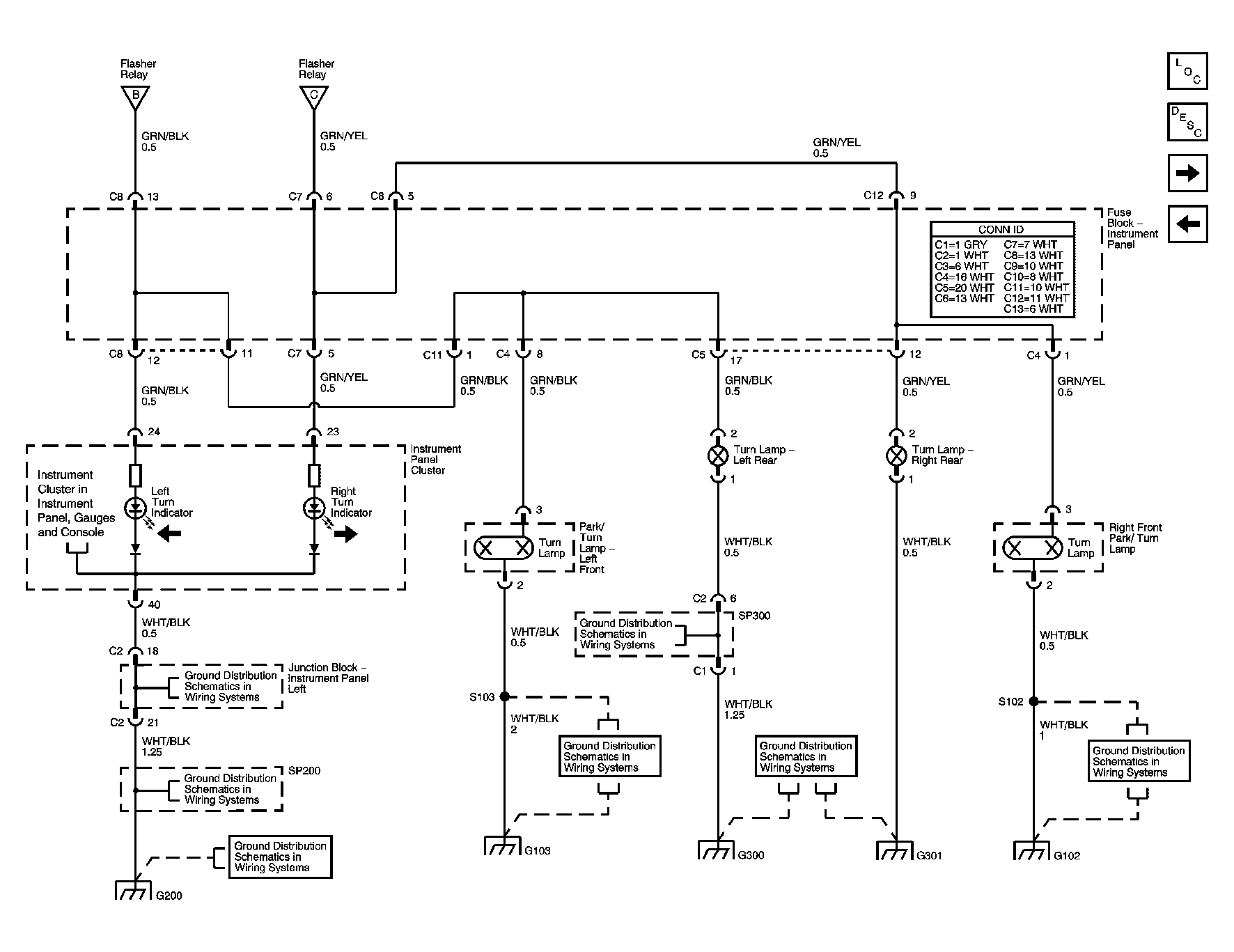

Fig 4: Turn Indicators and Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

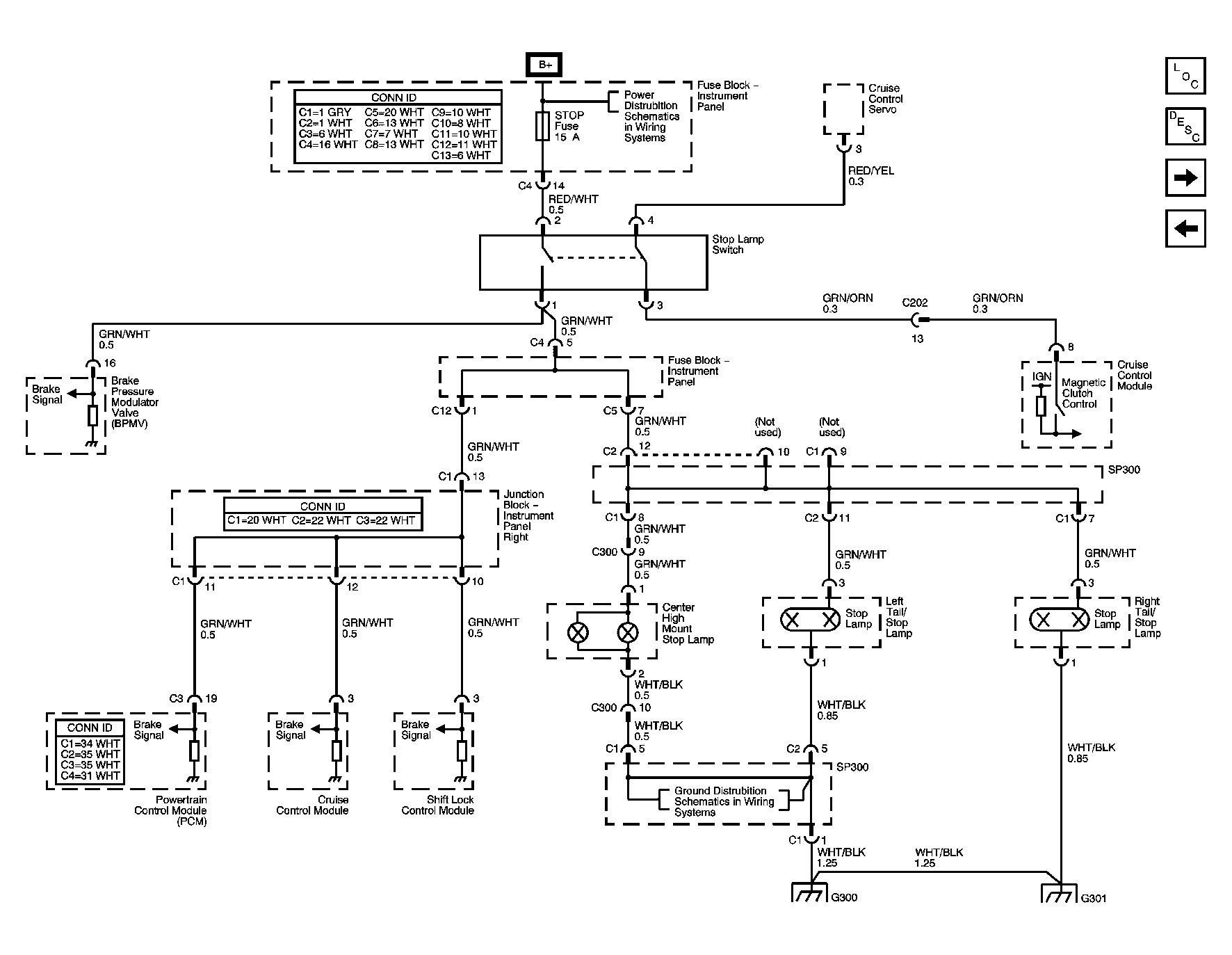

Fig 5: Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

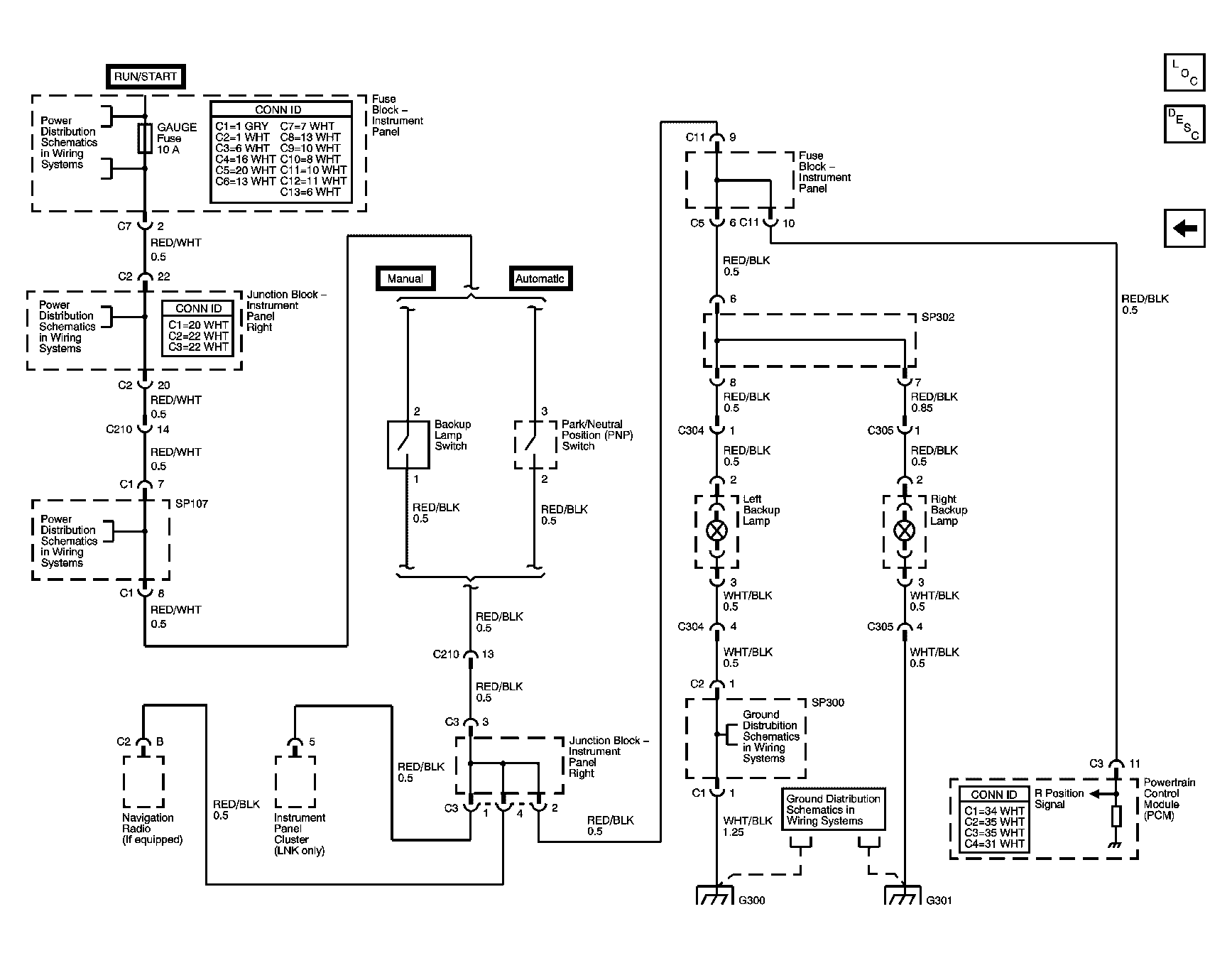

Fig 6: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.
