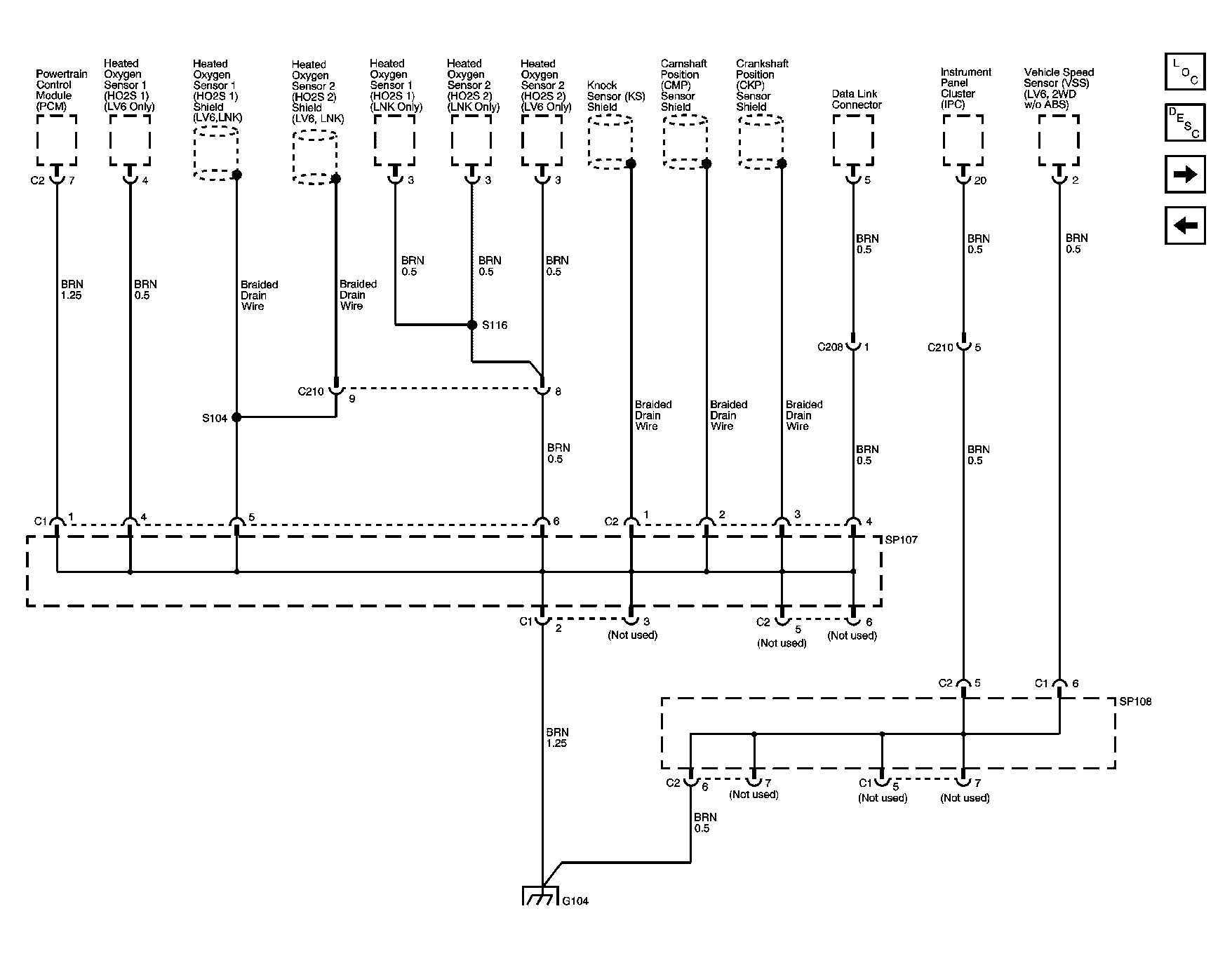

Fig 1: G100, G101 and G102 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: G103 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: G104 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 4: G105, G106 and G107 Schematic
Courtesy of GENERAL MOTORS CORP.

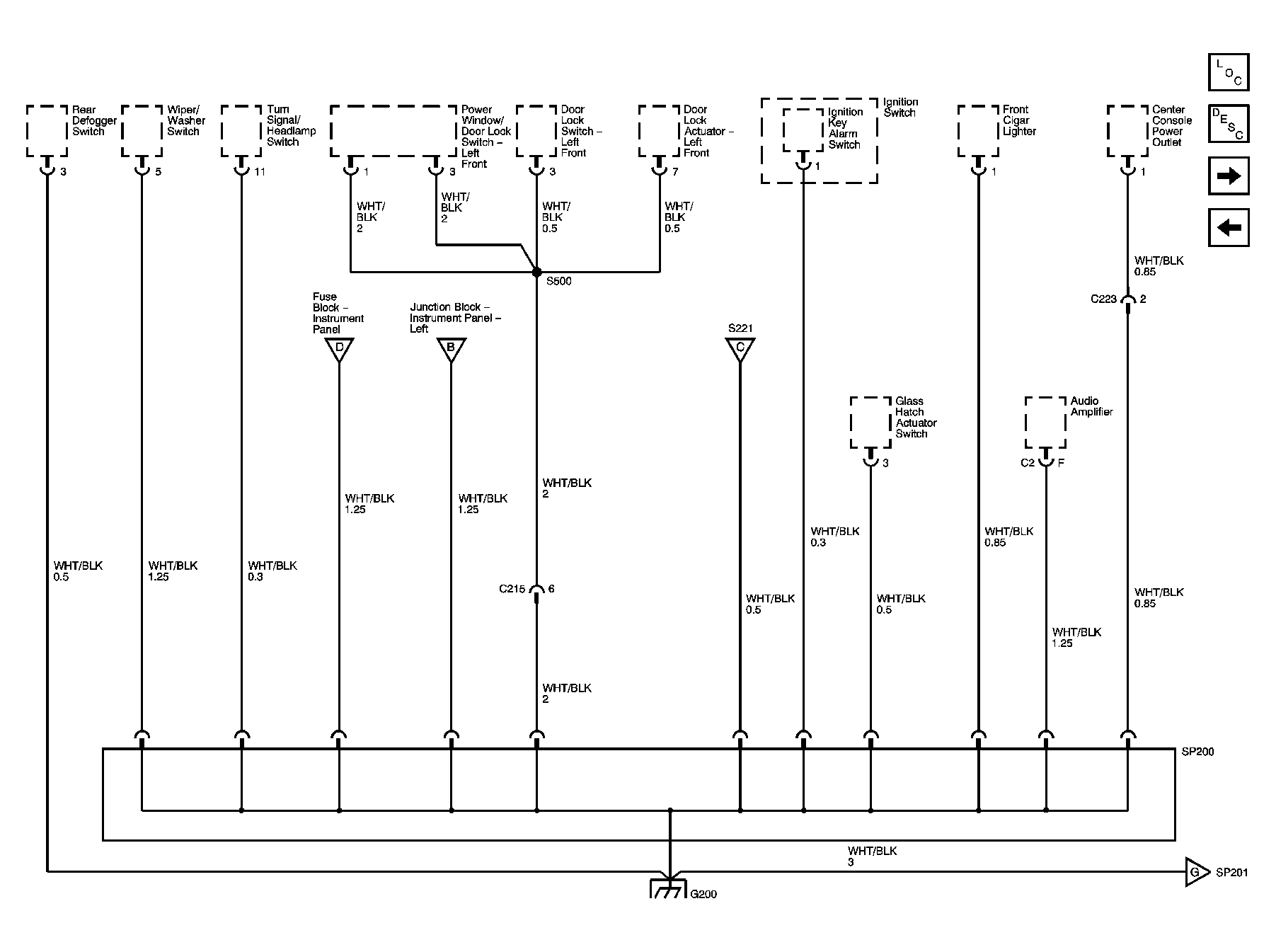

Fig 5: SP 200 and G200 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 6: Junction Block Schematic - Instrument Panel Left
Courtesy of GENERAL MOTORS CORP.
Fig 7: S 221 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuse Block Schematic - Instrument Panel
Courtesy of GENERAL MOTORS CORP.

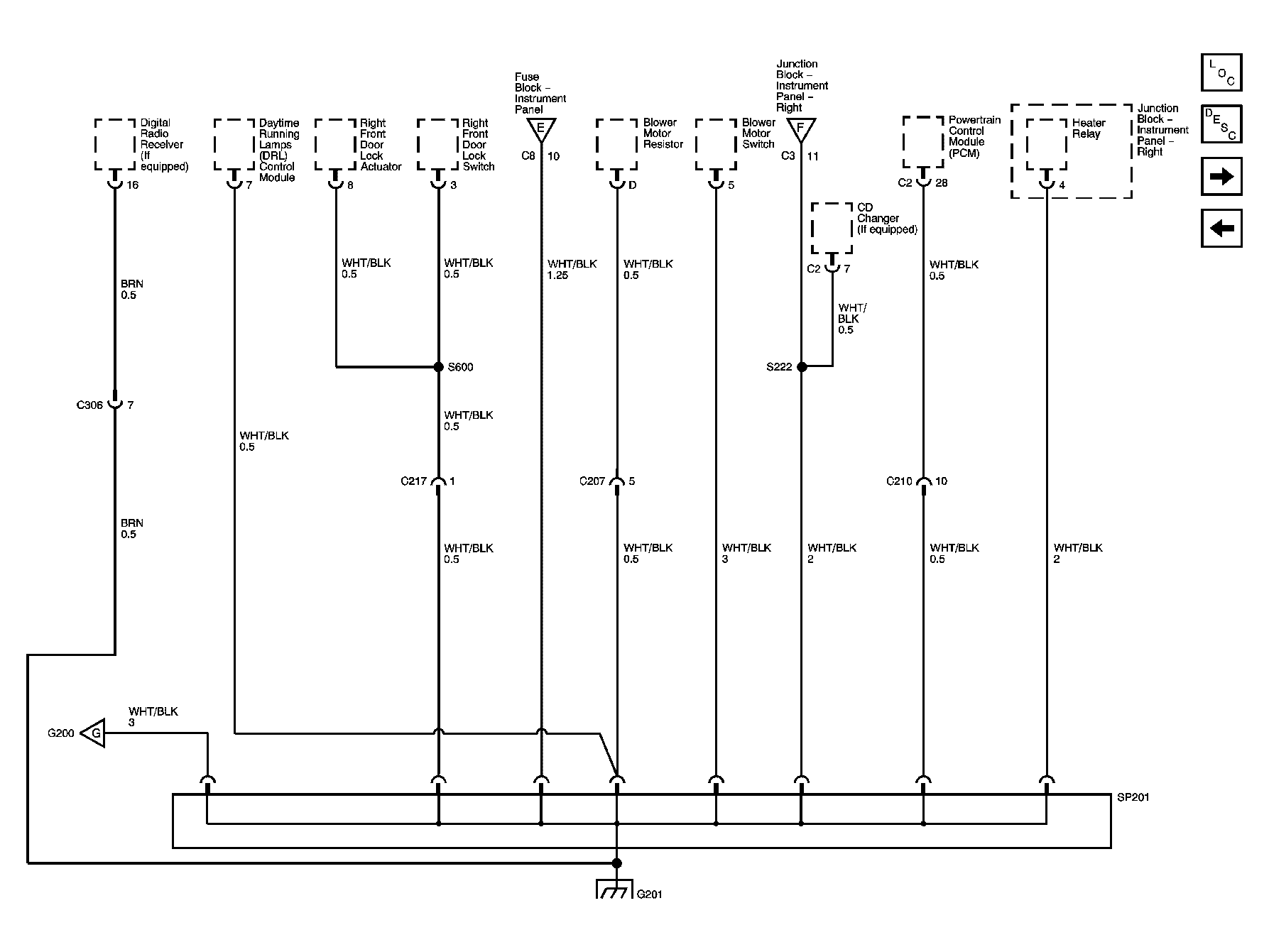

Fig 9: SP 201 and G201 Schematic
Courtesy of GENERAL MOTORS CORP.

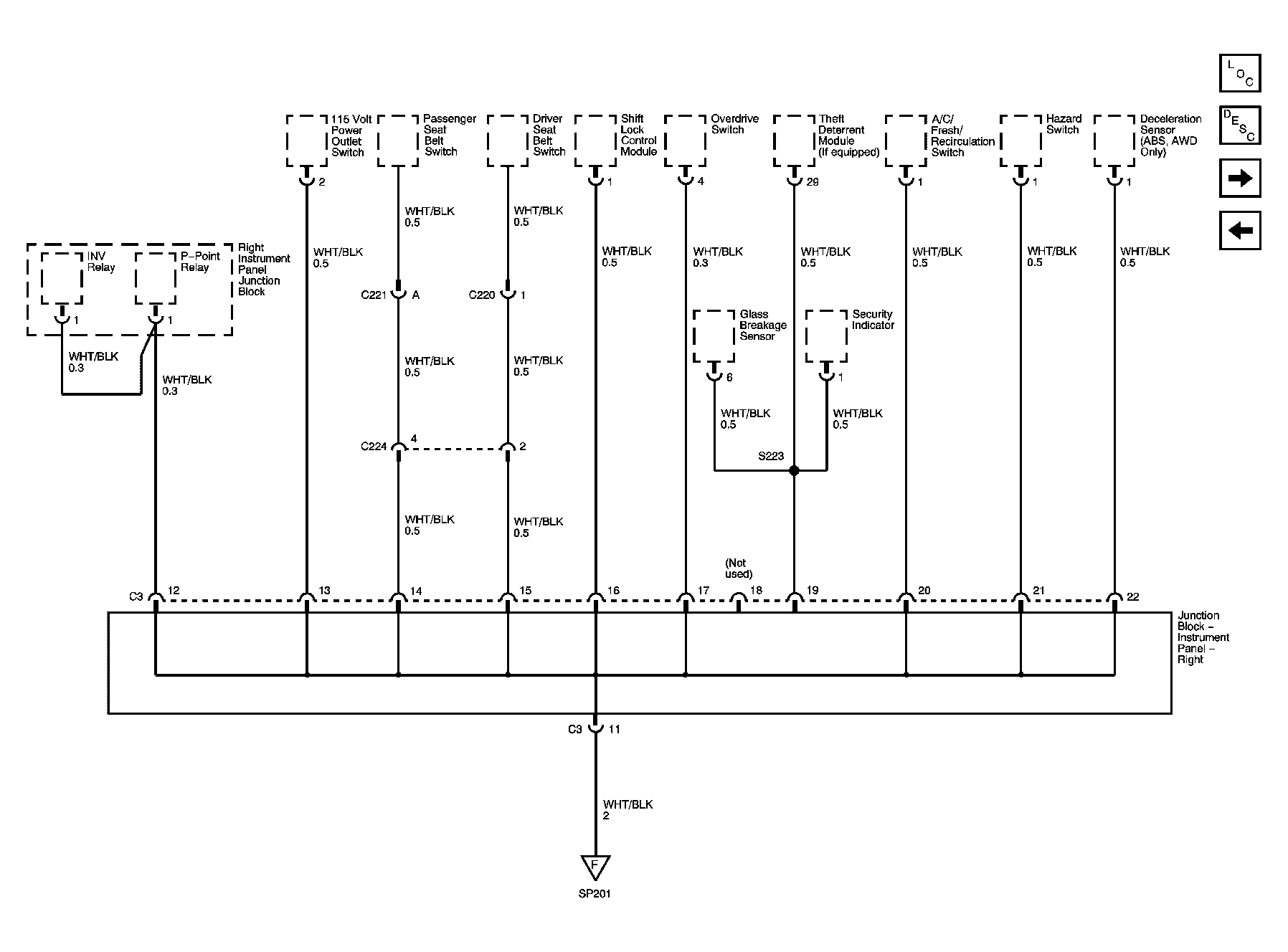

Fig 10: Junction Block Schematic - Instrument Panel Right
