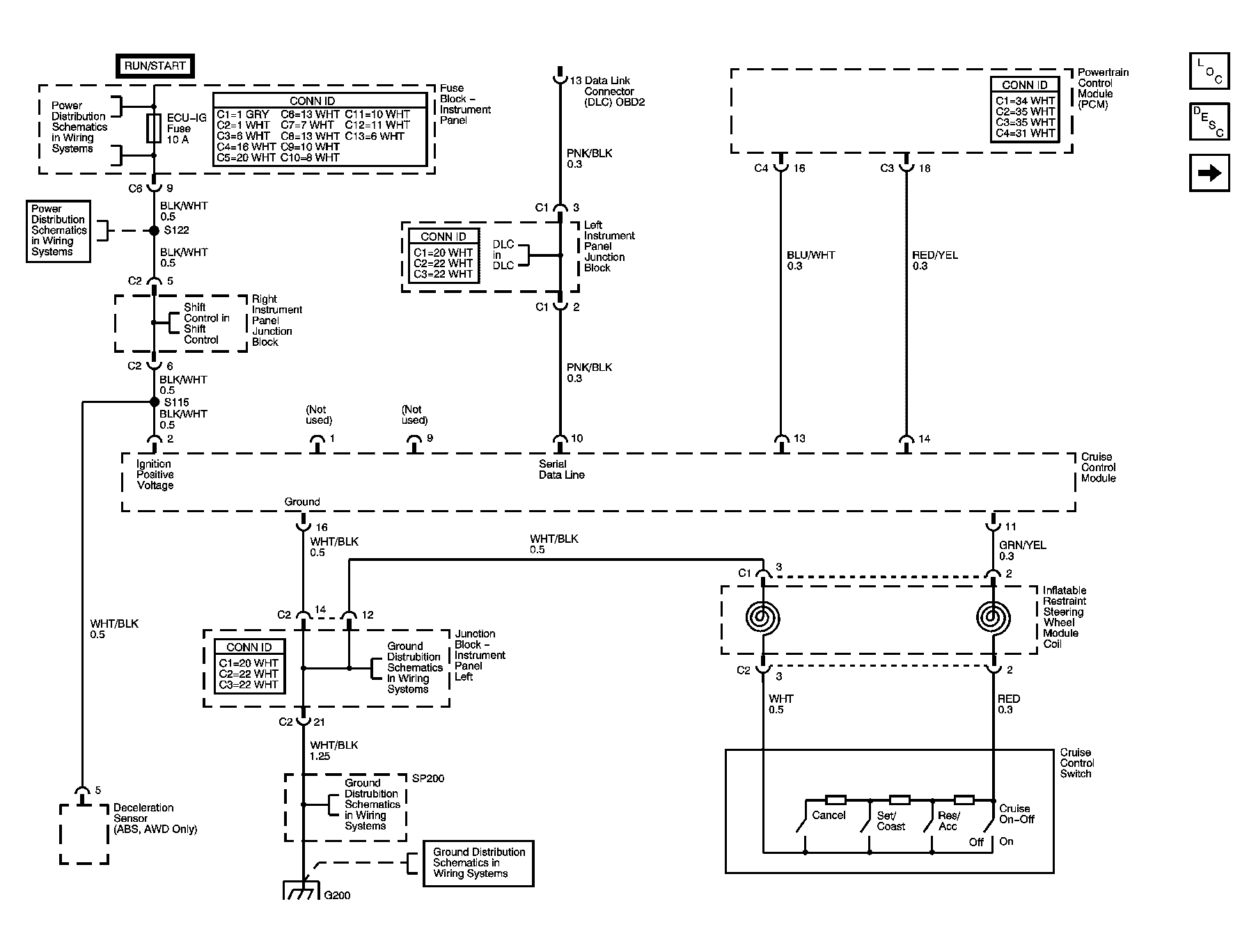

Fig 1: Cruise Control Module And Switch Schematic
Courtesy of GENERAL MOTORS CORP.

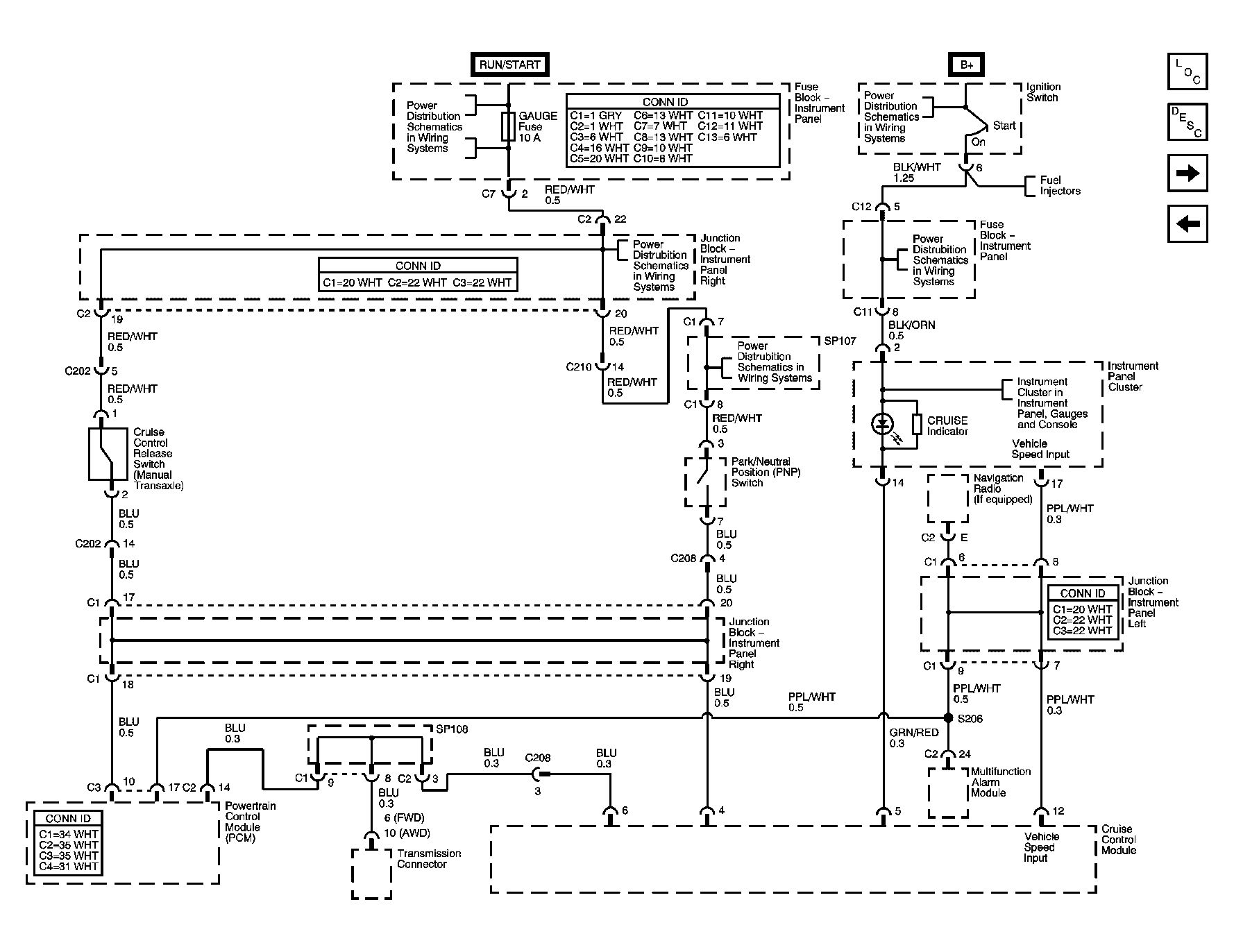

Fig 2: Cruise Control Module And Indicator Schematic
Courtesy of GENERAL MOTORS CORP.

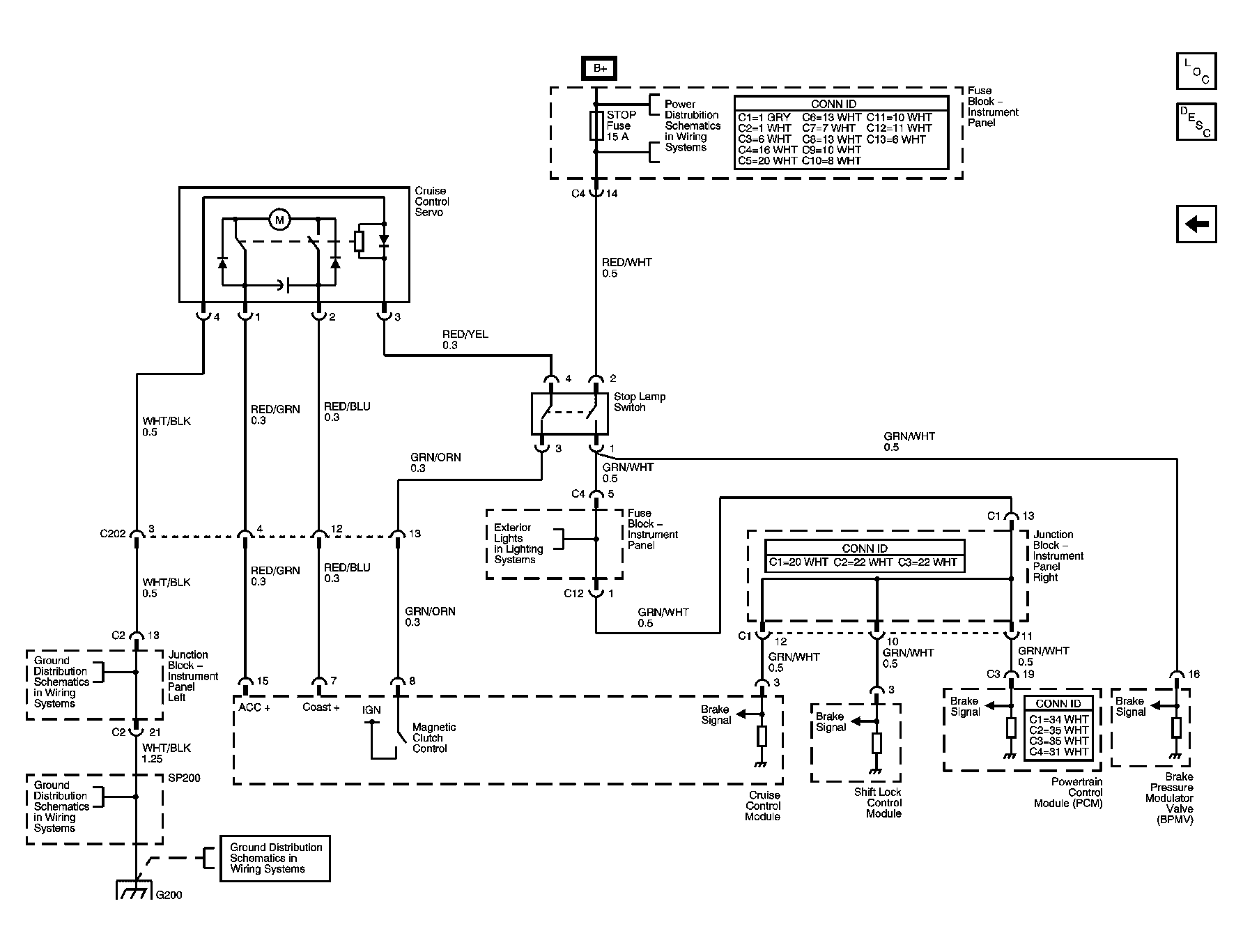

Fig 3: Cruise Control Servo And Stoplamp Switch Schematic
