Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the front fender upper diagonal. Refer to BRACE REPLACEMENT -- SHEET METAL DIAGONAL .
  3. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .

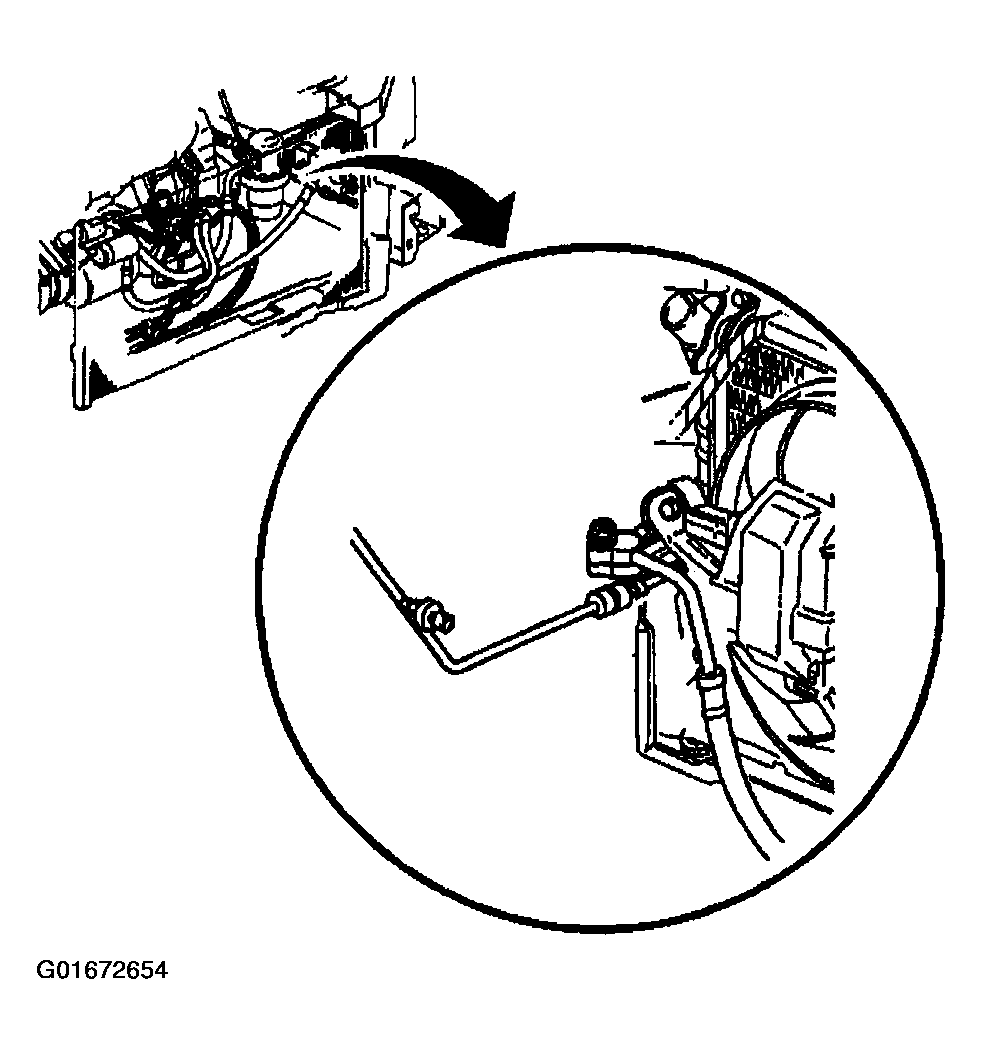

    Fig 1: A/C Compressor Hose & Fitting Nut
    G01672654Courtesy of GENERAL MOTORS CORP.
  4. Remove the radiator. Refer to RADIATOR REPLACEMENT .
  5. Loosen the condenser tube nut from the condenser.
  6. Disconnect the condenser tube from the condenser.
  7. Remove the A/C compressor hose block fitting nut from the condenser.
  8. Disconnect the A/C compressor hose from the condenser.

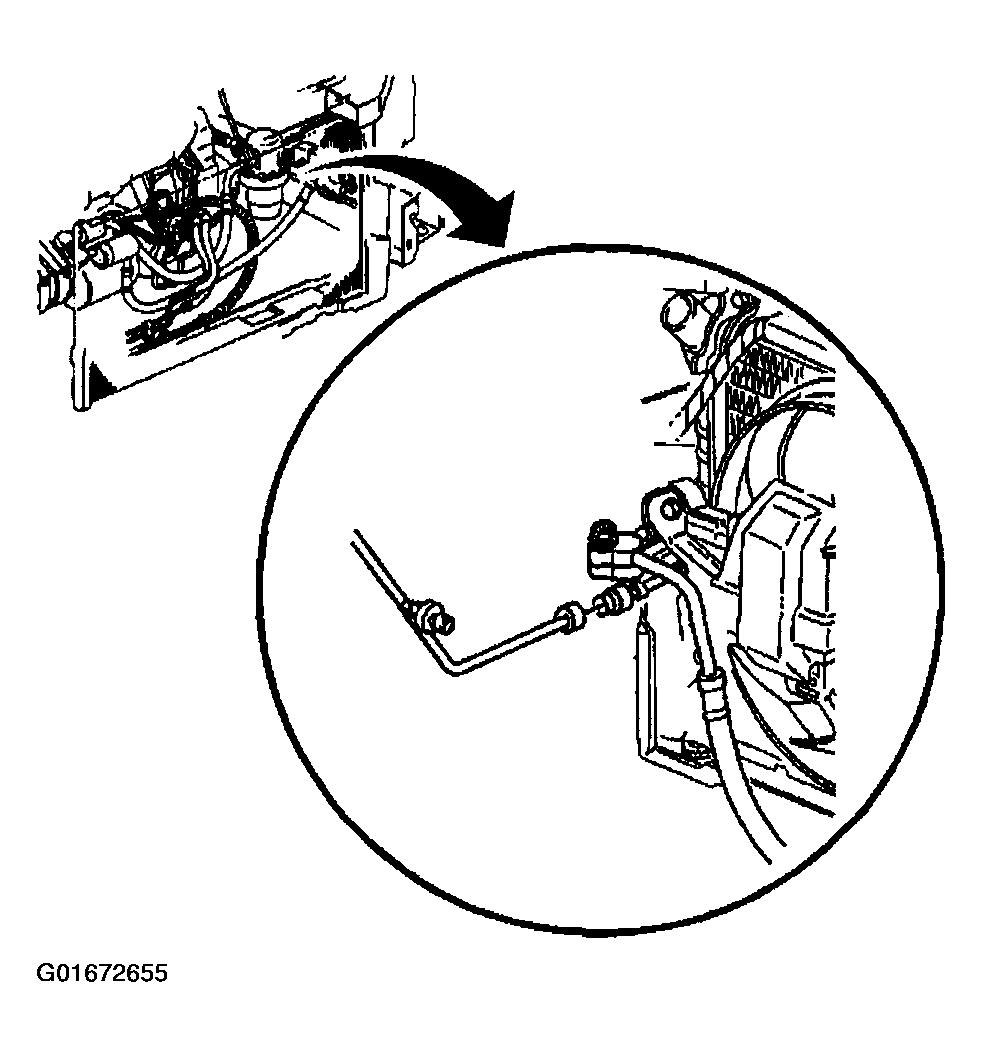

    Fig 2: A/C Compressor Hose & Fitting Nut
    G01672655Courtesy of GENERAL MOTORS CORP.
  9. Tilt the top of the condenser to the rear of the vehicle and lift up to remove the condenser.
  10. Ensure the lower rubber mounts stay in place in the vehicle.
  11. Remove the upper rubber mounts from the condenser.

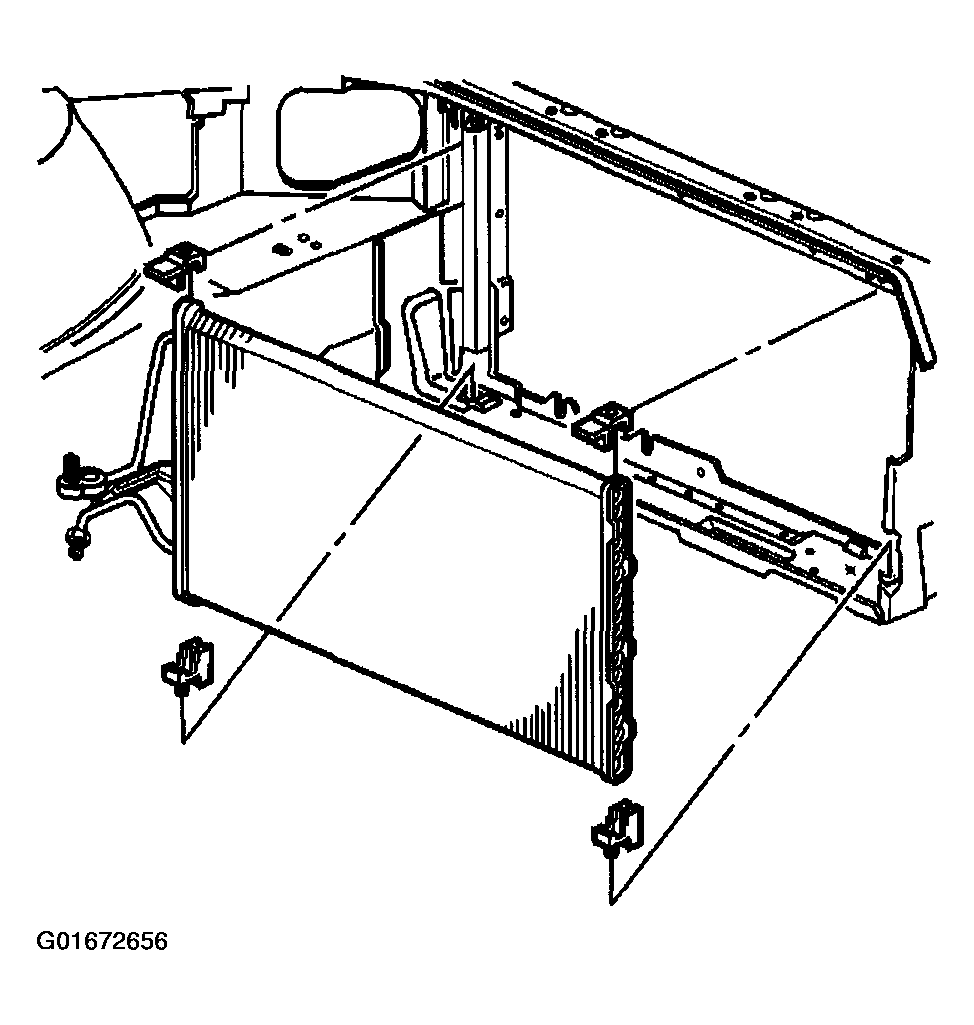

    Fig 3: Condenser Upper Rubber Mounts
    G01672656Courtesy of GENERAL MOTORS CORP.
