Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the underhood relay center knob (1).
Remove the underhood relay center cover (2).

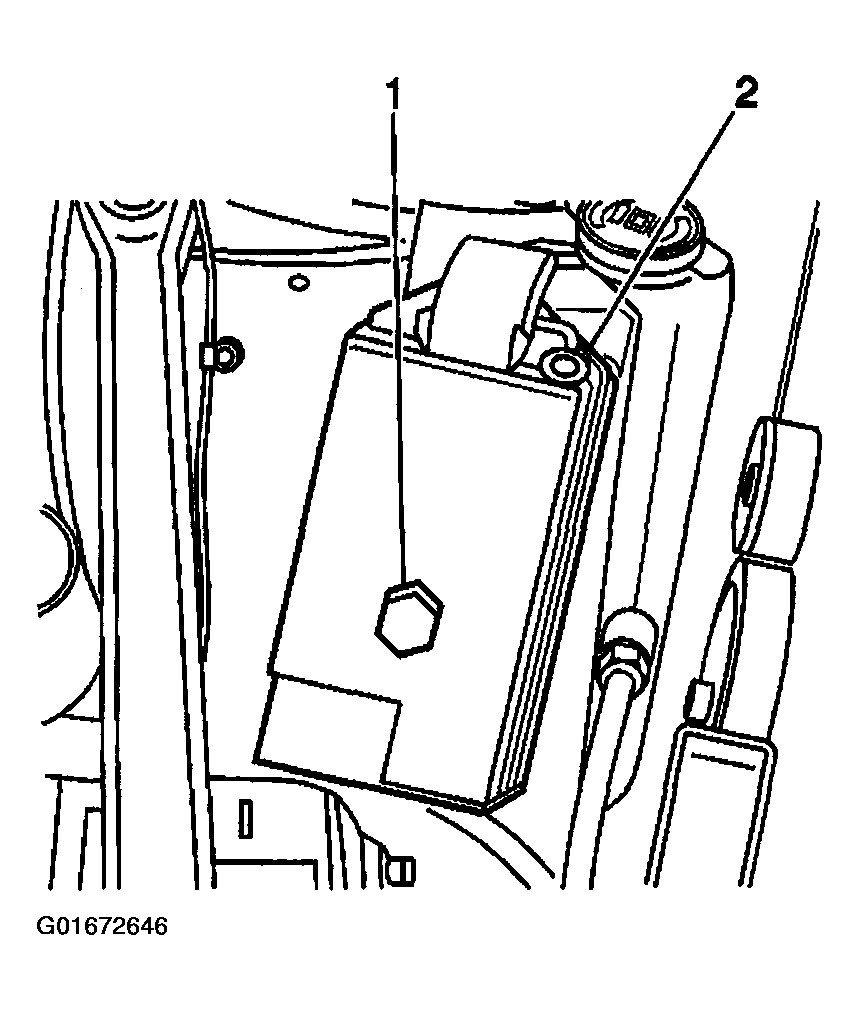

Fig 1: Underhood Relay Center Knob & Cover
Courtesy of GENERAL MOTORS CORP.
Remove the A/C compressor control relay (13) from the electrical center.

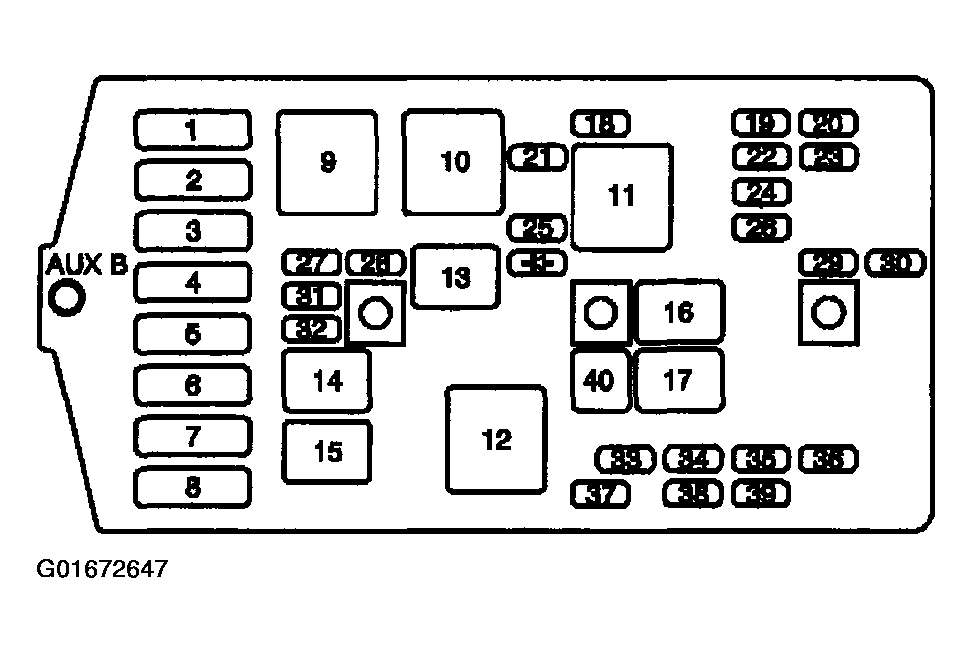

Fig 2: Electrical Center
Courtesy of GENERAL MOTORS CORP.
