Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the A/C compressor control relay (13) into the electrical center.

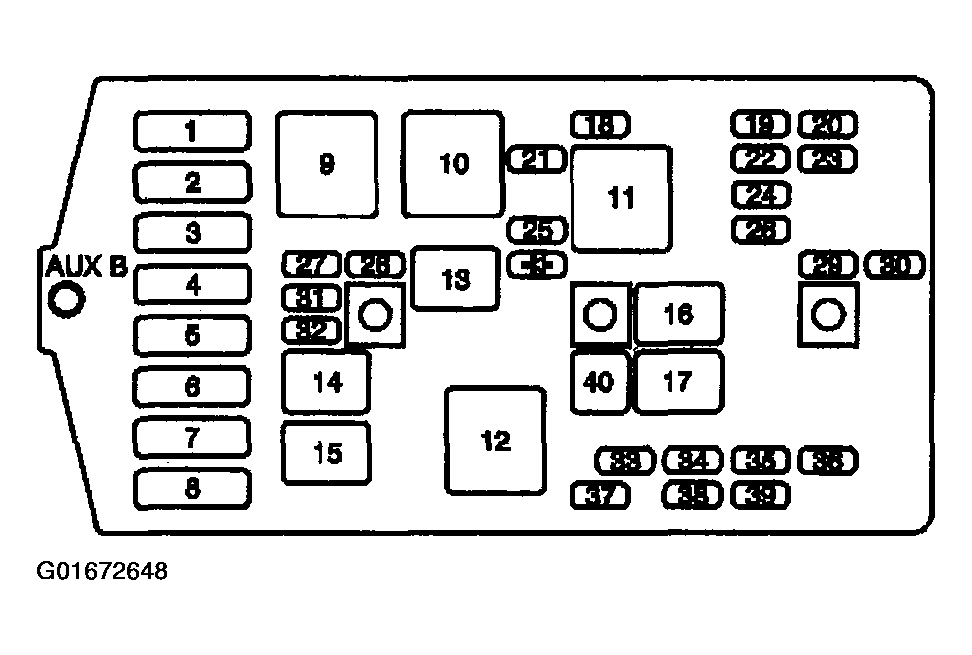

Fig 1: Electrical Center
Courtesy of GENERAL MOTORS CORP.
Install the underhood relay cover (2).
Install the underhood relay center knob (1).

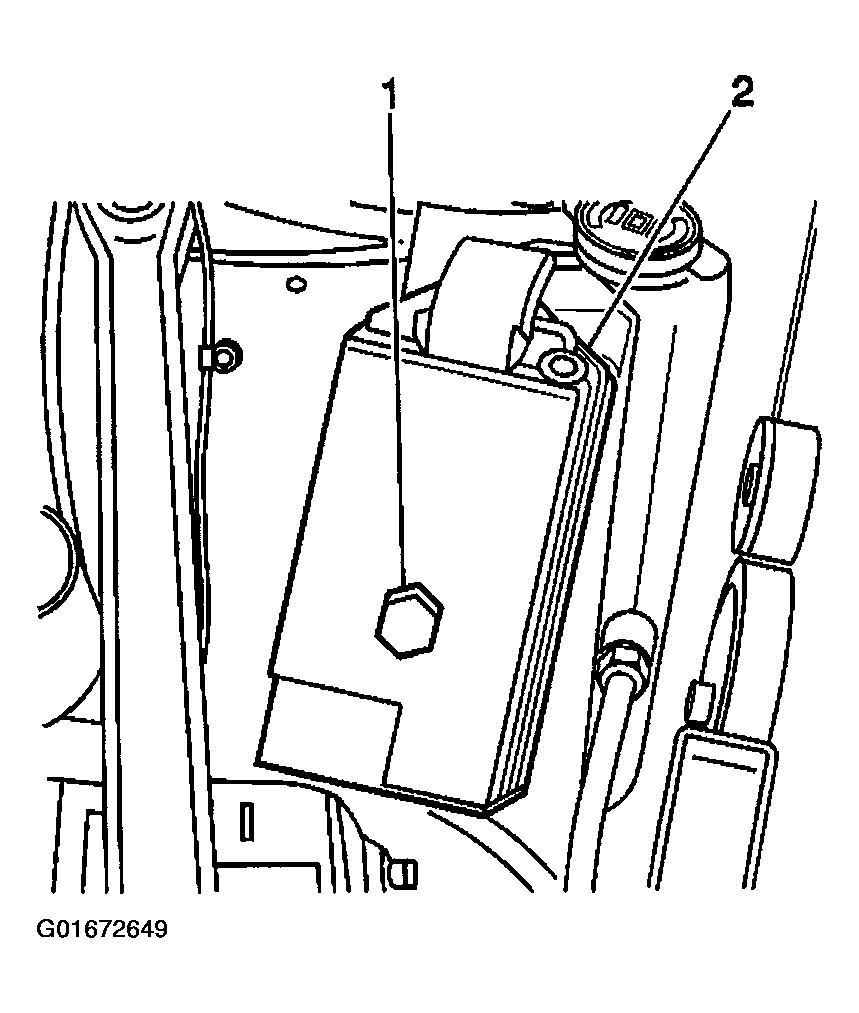

Fig 2: Underhood Relay Center Knob & Cover
Courtesy of GENERAL MOTORS CORP.
