Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the new sealing washers onto the A/C compressor hose assembly. Refer to Compressor Sealing Washers Replacement .
Install the A/C compressor hose to the A/C compressor.

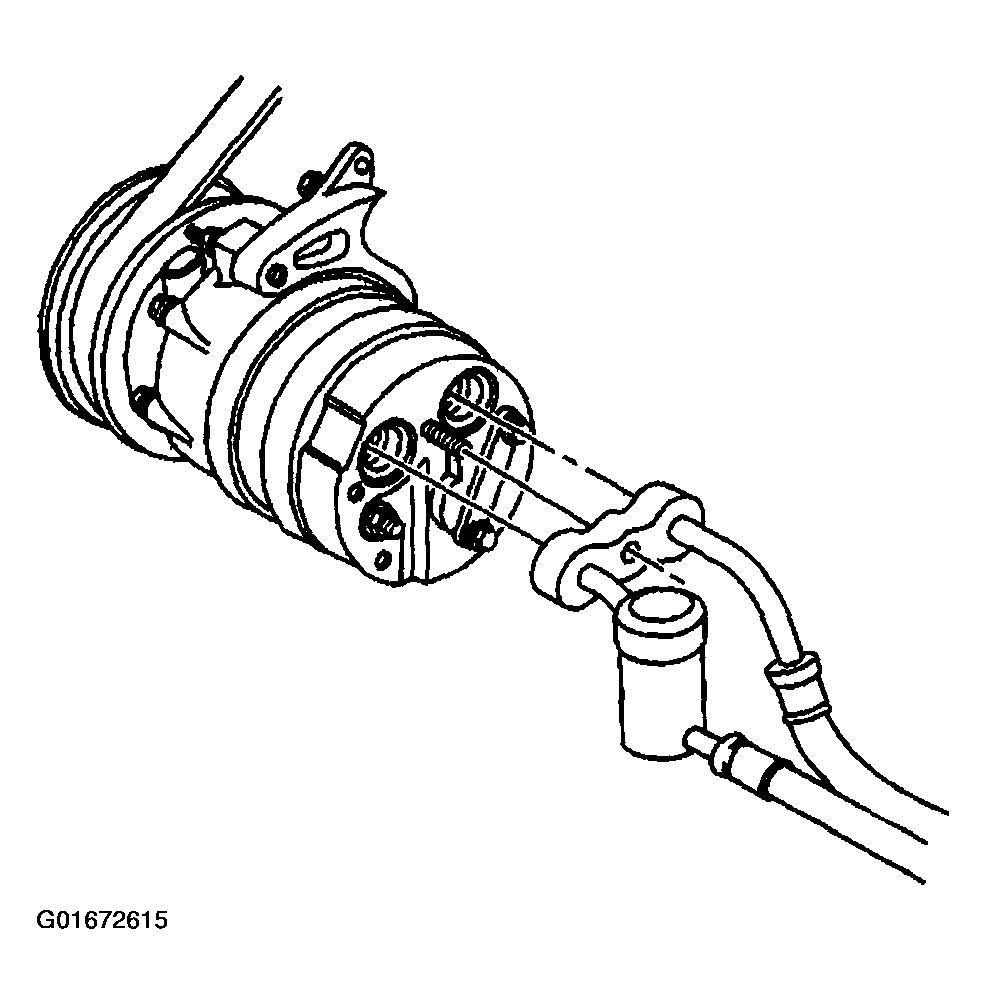

Fig 1: A/C Compressor Hose & Nut
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the A/C compressor hose nut.
Tighten

Tighten the nut to 33 N.m (24 lb ft)

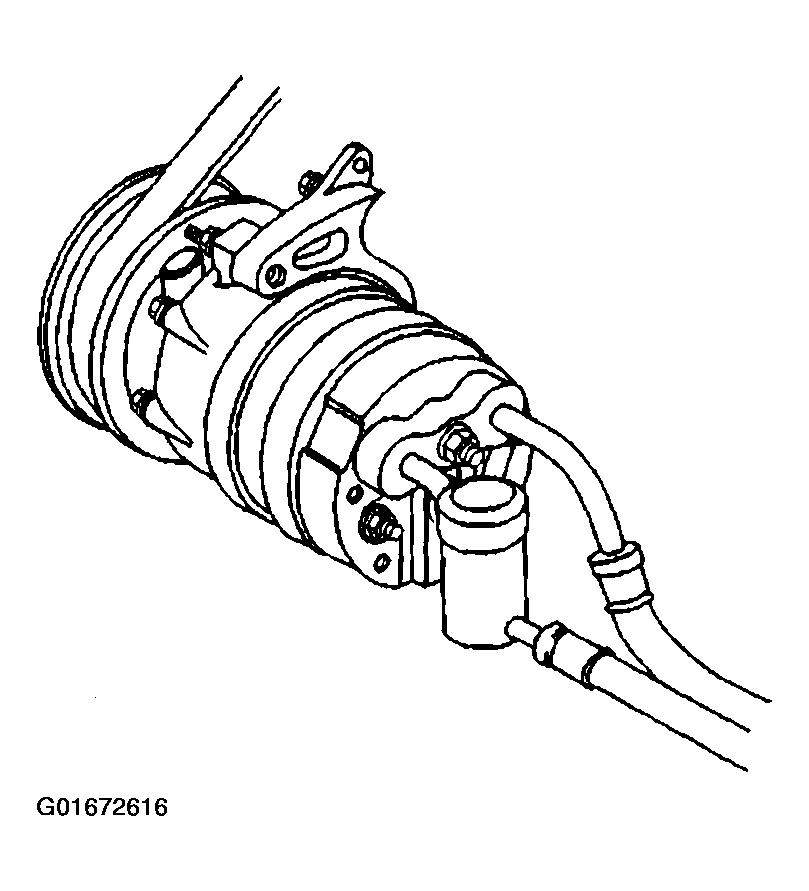

Fig 2: A/C Compressor Hose & Nut
Courtesy of GENERAL MOTORS CORP.
Install the lower air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
Lower the vehicle.
Important: Lubricate the new O-ring seals with mineral base 525 viscosity refrigerant oil.
Install the new O-ring seal to the A/C compressor hose assembly. Refer to O-Ring Replacement .
Install the A/C compressor hose to the accumulator.

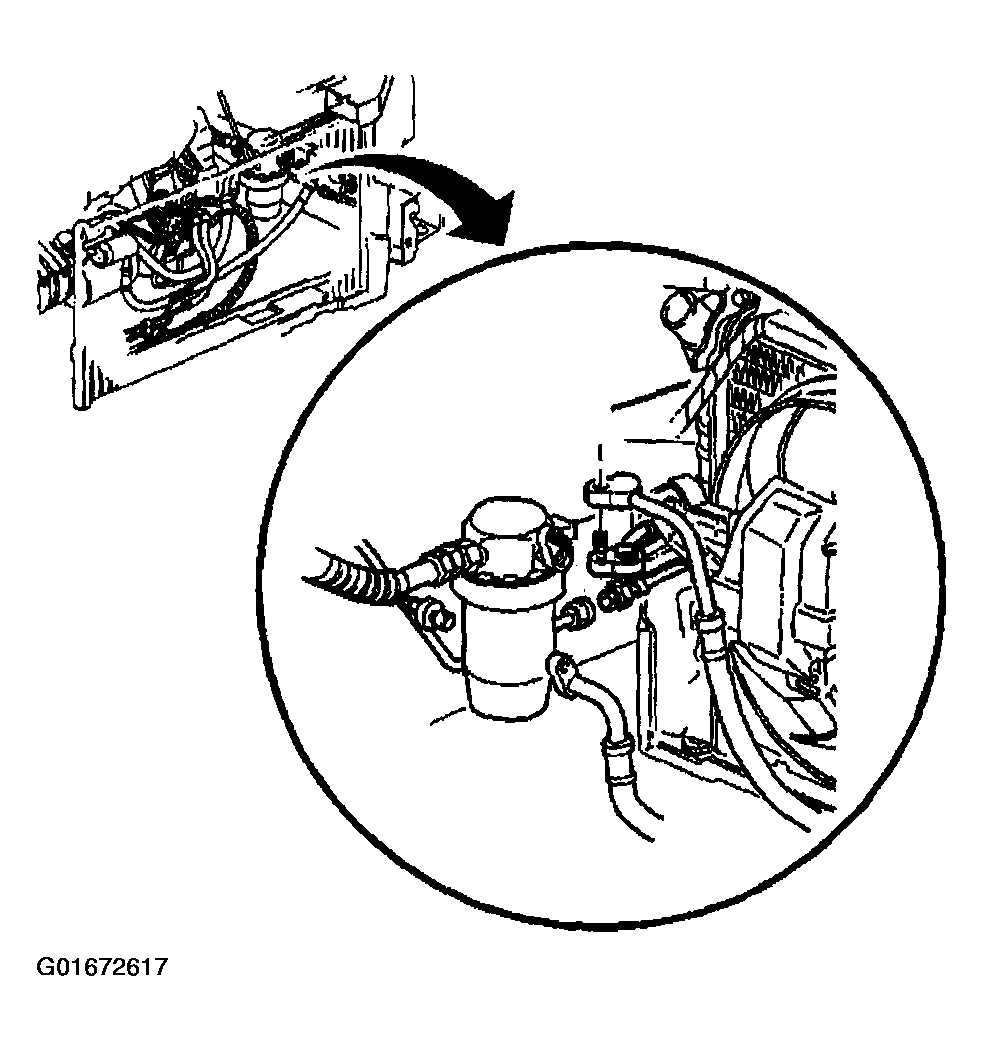

Fig 3: A/C Compressor Hose At Accumulator
Courtesy of GENERAL MOTORS CORP.
Install the A/C compressor hose nut (2) to the accumulator.
Tighten

Tighten the nut to 16 N.m (12 lb ft).
Install the A/C compressor hose to the condenser.
Install the A/C compressor hose nut to the condenser.
Tighten

Tighten the nut to 16 N.m (12 lb ft).
Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY
Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
Leak test the fittings of the component using J 39400-A .

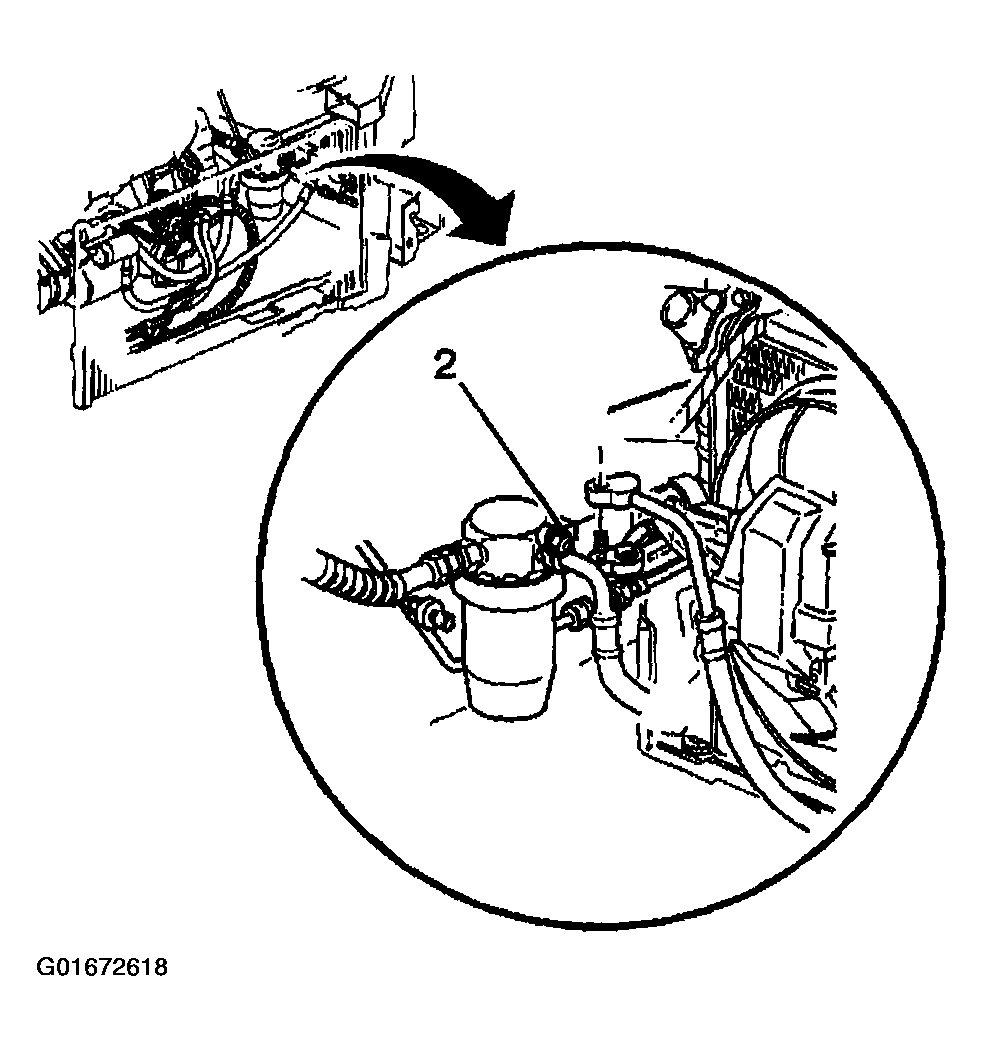

Fig 4: A/C Compressor Hose Nut At Accumulator
Courtesy of GENERAL MOTORS CORP.
