Compressor Control Valve Assembly Removal (V5 - Direct Mount)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41790 Compressor Holding Fixture

Install the compressor onto the J 41790 .
Remove the compressor control valve retaining ring using internal snap ring pliers.
Remove the compressor control valve from the compressor.

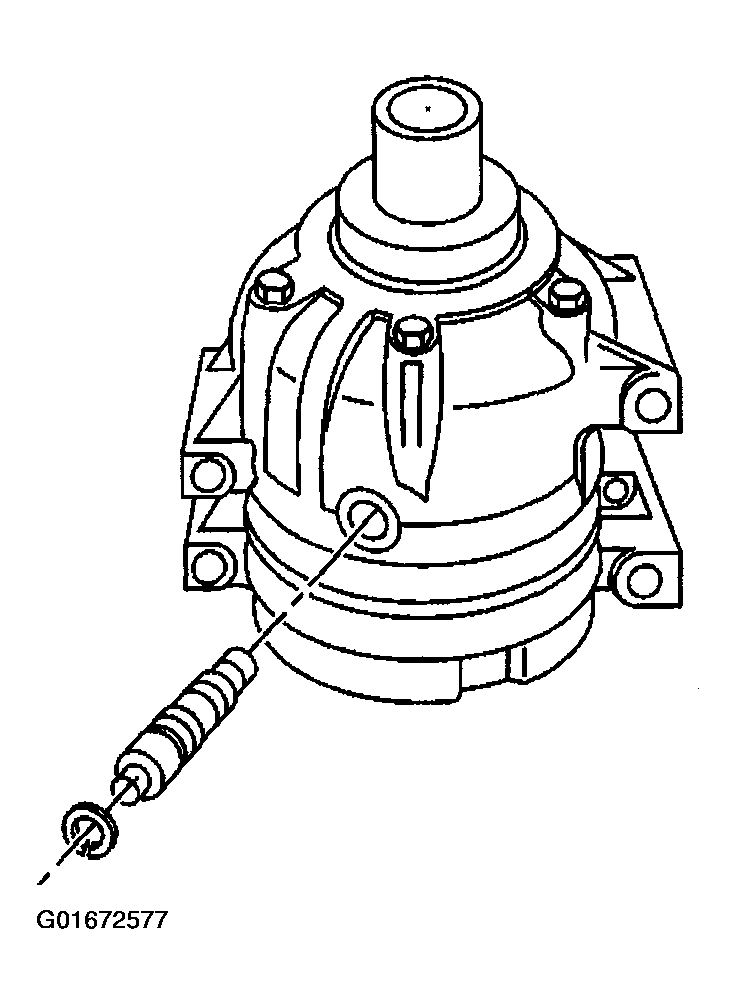

Fig 1: Compressor Control Valve & Retaining Ring
Courtesy of GENERAL MOTORS CORP.
