Compressor Control Valve Assembly Install (V5 - Conventional Mount)
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 5403 Snap Ring Pliers
- Coat the O-rings with 525 viscosity refrigeration oil.
- Using thumb pressure, push the O-rings in place.
- Install the valve into the case.
Important: Ensure that the retaining ring is properly seated in the ring groove.

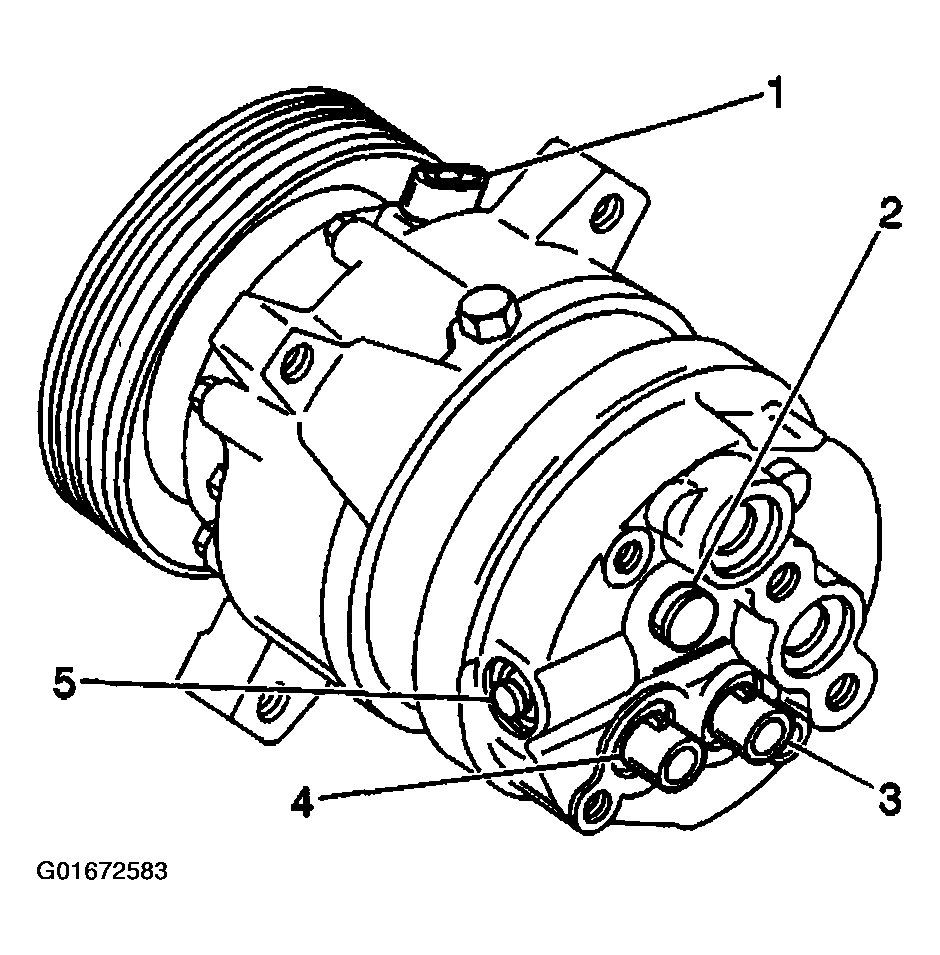

- Using the J 5403 , install the valve retaining ring (5) with the high point of the curved sides against the valve housing.
- Perform a leak test. Refer to Compressor Leak Testing (V5 - Conventional Mount) or Compressor Leak Testing (V5 Direct Mount) .
