Compressor Clutch Coil Removal (V5 - Conventional Mount)

Tools Required

• J 6083  Snap Ring Pliers #24 External
• J 8433-1  Puller Bar
• J 8433-3  Forcing Screw
• J 33020  Pulley Puller
• J 33023-A  Puller Pilot
• J 33025  Clutch Coil Puller Legs

1. Remove the clutch plate and hub assembly. Refer to Compressor Clutch Plate and Hub Assembly Removal (V5 - Direct Mount)  or Compressor Clutch Plate and Hub Assembly Removal (V5 - Conventional Mount) .
2. Use the J 6083  in order to remove the rotor and bearing assembly retaining ring.
   Fig 1: Rotor, Bearing Assembly Retaining Ring, J 6083 & J 34992

   Courtesy of GENERAL MOTORS CORP.
3. Install the J 33023-A  to the front head.

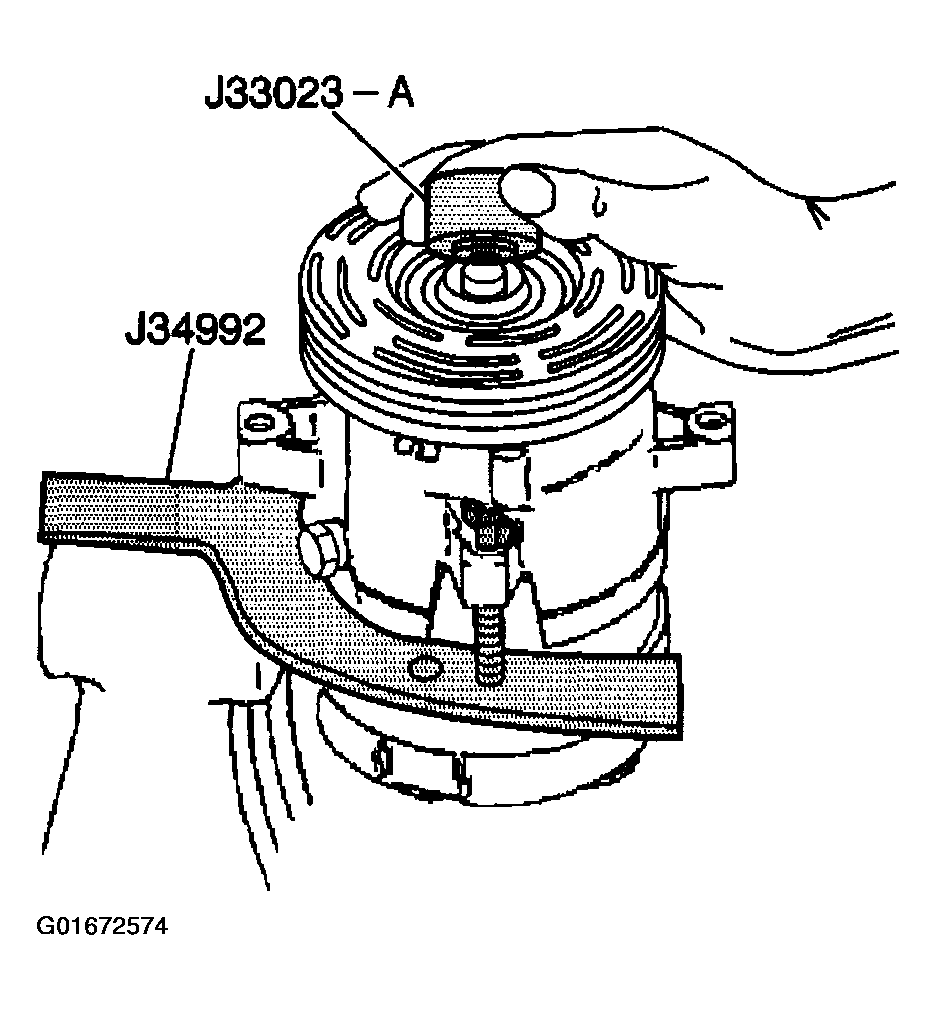

   Fig 2: Rotor Front Head, J 33023-A & J 34992

   Courtesy of GENERAL MOTORS CORP.
4. Install the J 33020  into the inner circle of slots in the rotor.
5. Turn the J 33020  clockwise in the slots in order to engage the tangs of the puller with the segments between the slots in the rotor.
6. Hold the J 33020  in place. Tighten the puller screw against the puller guide in order to remove the puller rotor and bearing assembly.

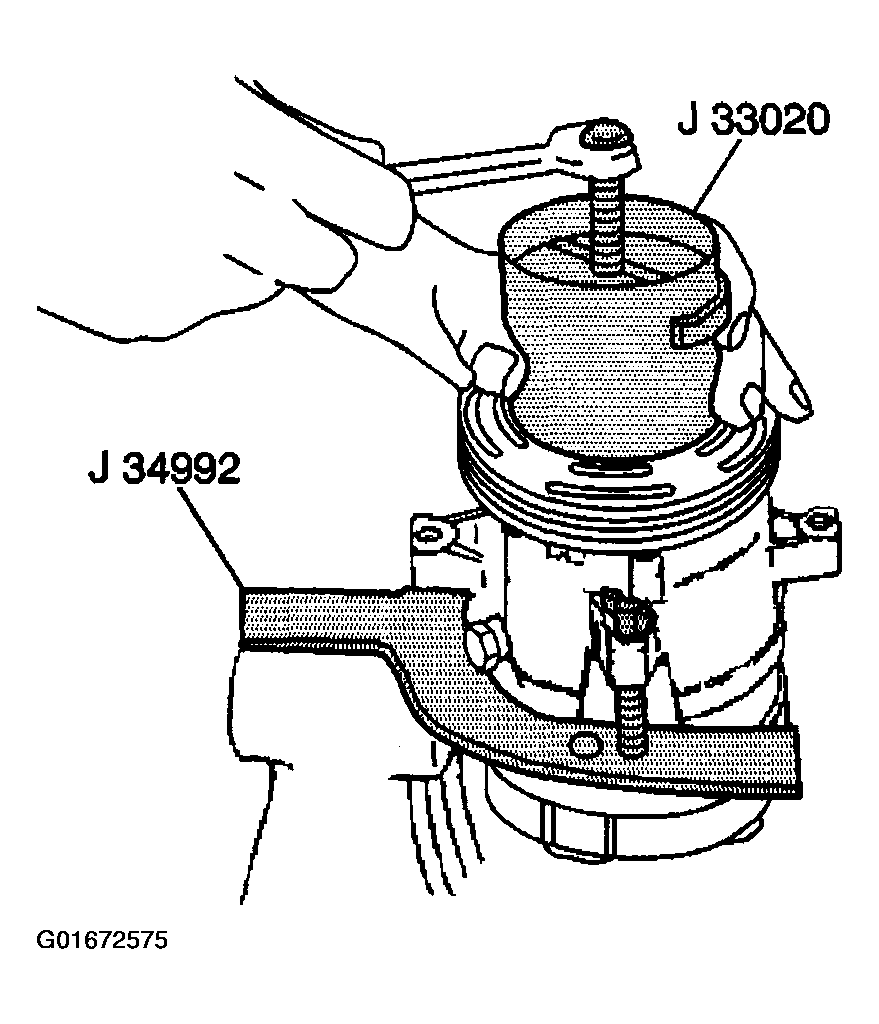

   Fig 3: Compressor Rotor, J 33020 & J 34992

   Courtesy of GENERAL MOTORS CORP.
7. Mark the location of the clutch coil terminal (1) on the compressor front head.
8. Install the J 33023-A  on the front head of the compressor.
9. Install the J 8433-1  and the J 8433-3  with the J 33025  on the front head of the compressor.
10. Tighten the J 8433-3  against the J 33023-A  in order to remove the clutch coil (2).

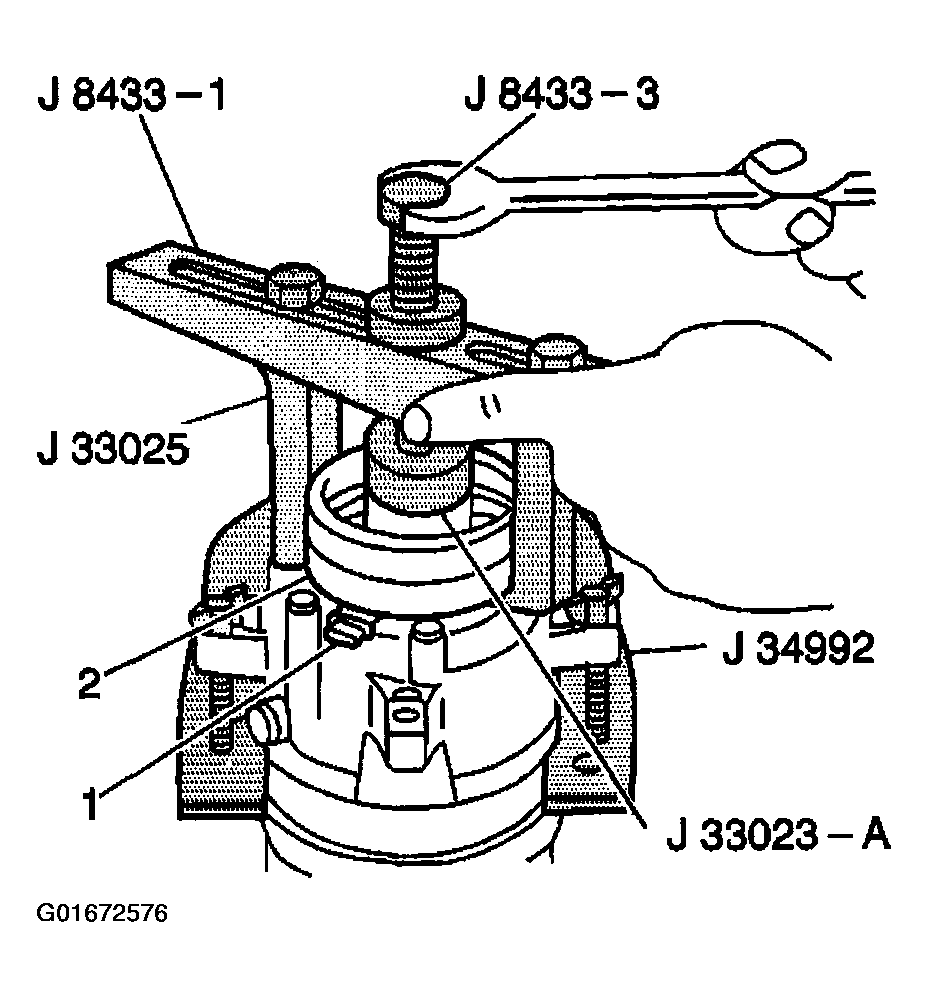

    Fig 4: Clutch Coil Terminal, Coil & Special Tools

    Courtesy of GENERAL MOTORS CORP.
