Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rearward screw to the blower motor control processor.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  3. Tighten both of the forward screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

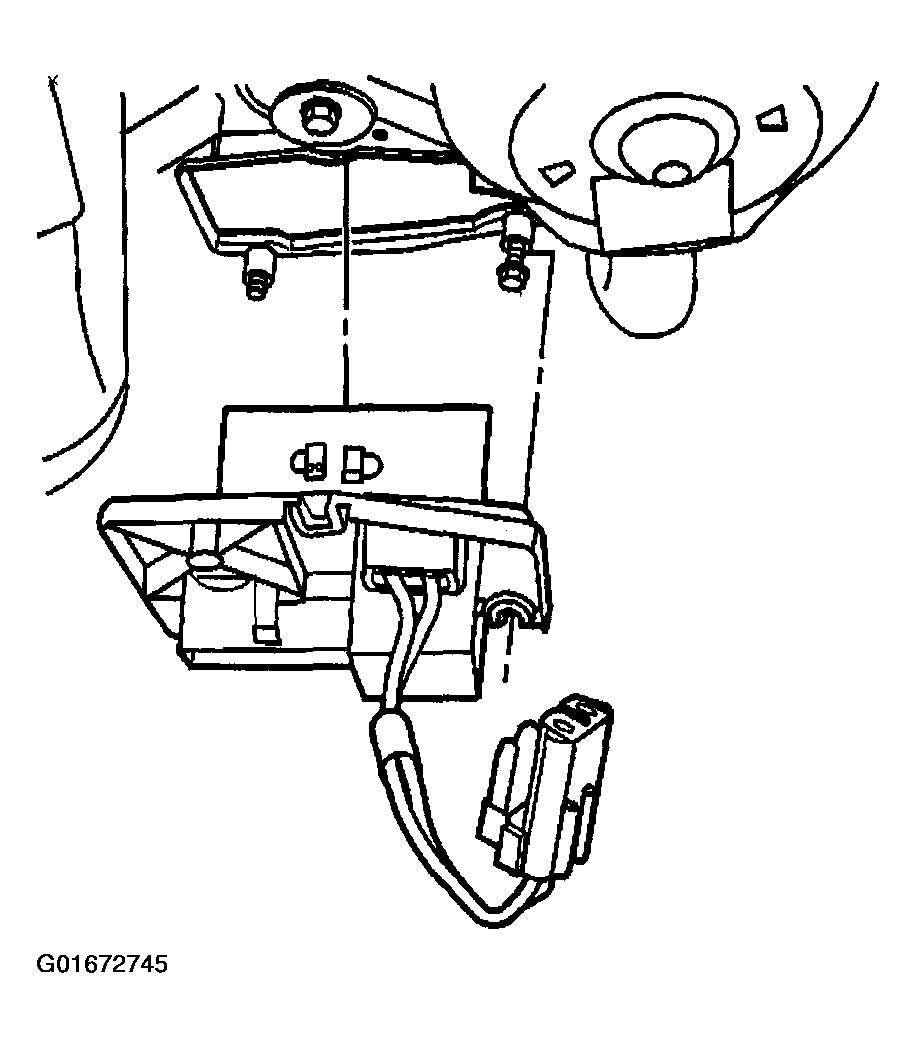

    Fig 1: Blower Motor Control Processor & Rearward Screw
    G01672745Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the blower motor.

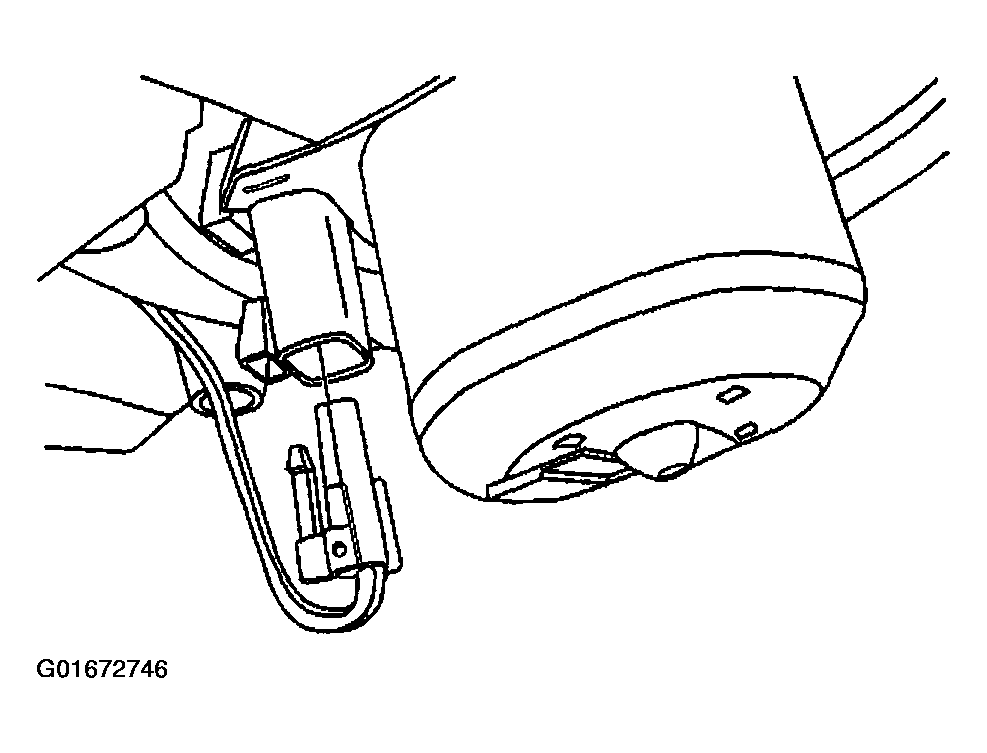

    Fig 2: Electrical Connector
    G01672746Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the blower motor resistor.
  6. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

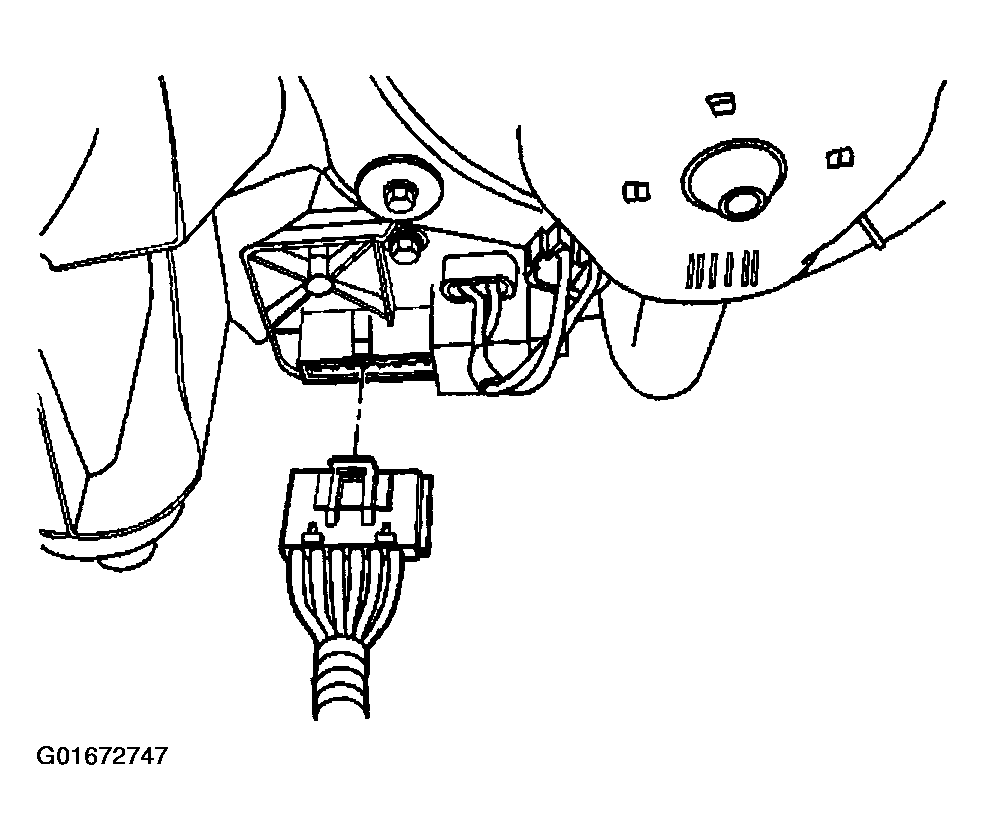

    Fig 3: Electrical Connector & Blower Motor Resistor
    G01672747Courtesy of GENERAL MOTORS CORP.
