Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster air distribution duct.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the mounting screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

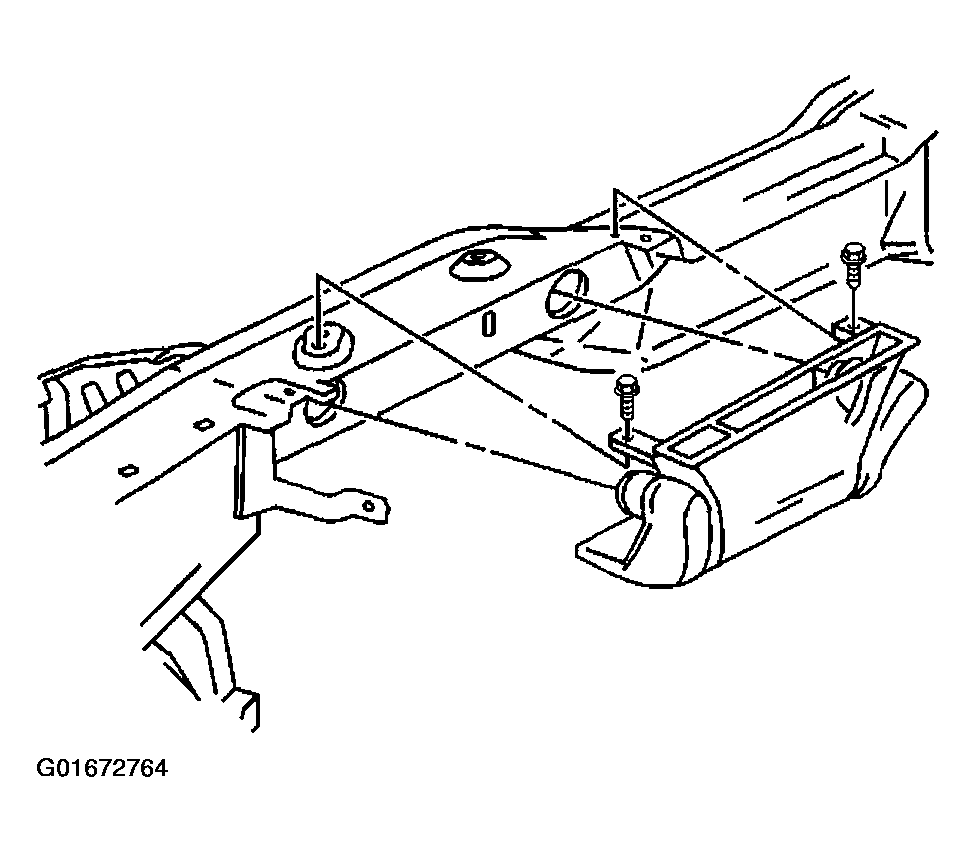

    Fig 1: Defroster Air Distribution Duct & Screws
    G01672764Courtesy of GENERAL MOTORS CORP.
  3. Install the cross vehicle beam to the vehicle.

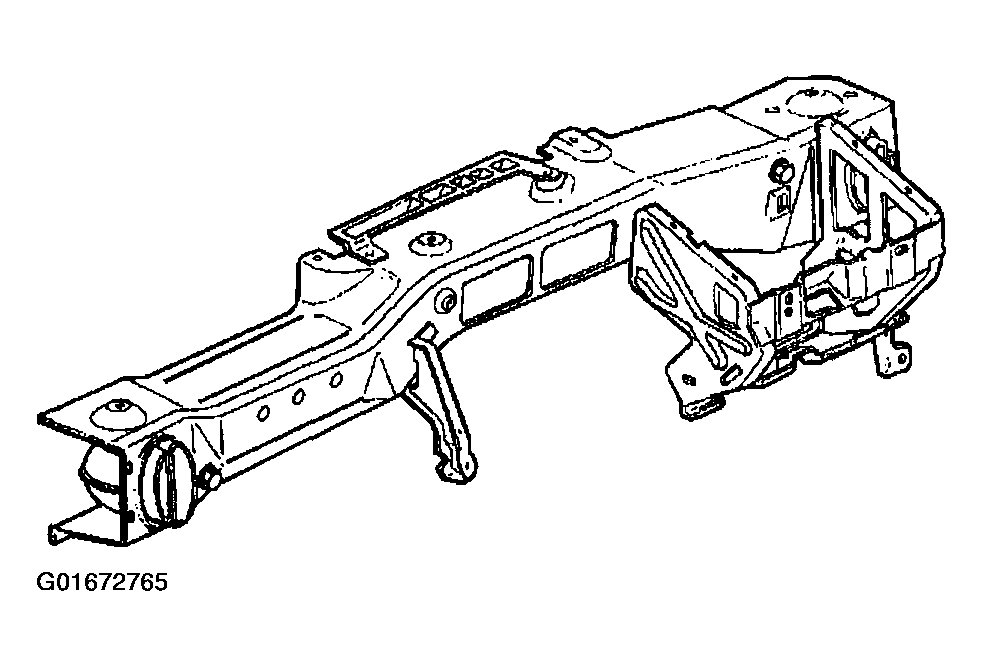

    Fig 2: Cross Vehicle Beam
    G01672765Courtesy of GENERAL MOTORS CORP.

    Important:  Do NOT tighten the bolts at this time.

  4. Install the bolts which secure the right cross vehicle beam to the hinge pillar.

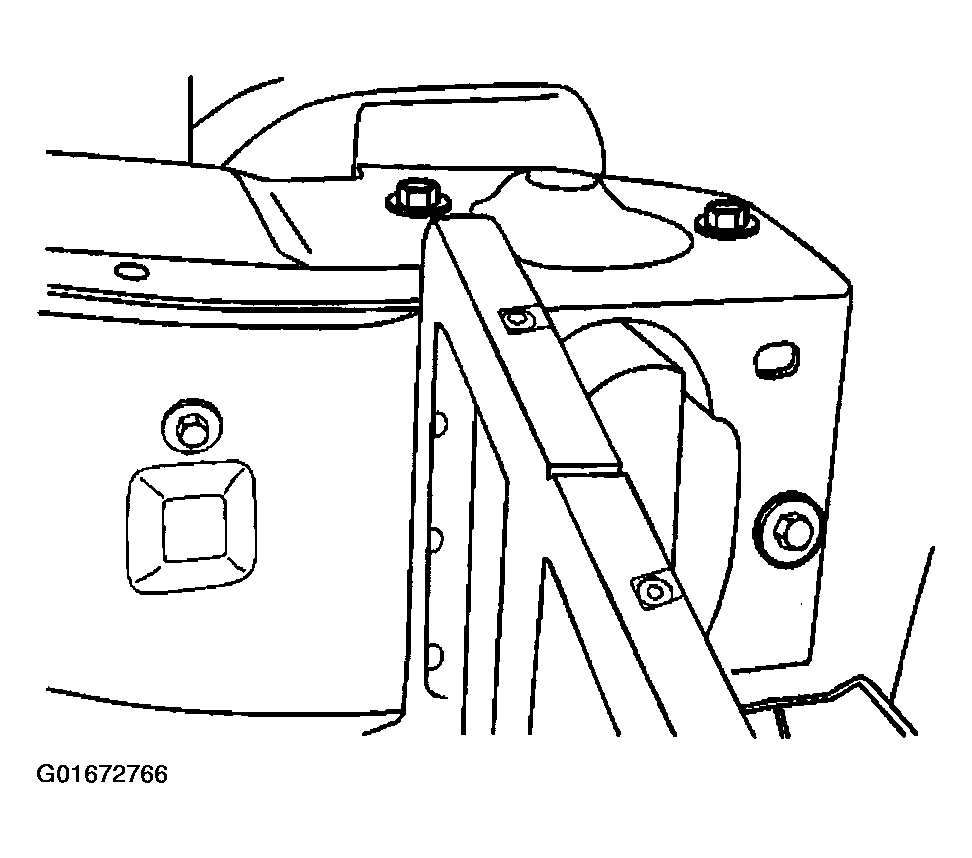

    Fig 3: Right Cross Vehicle Beam Hinge Pillar Bolts
    G01672766Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the bolts which secure the left cross vehicle beam to the hinge pillar.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

    Fig 4: Left Cross Vehicle Beam Hinge Pillar Bolts
    G01672767Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt (1) to the cross vehicle beam.

    Tighten

    Tighten the bolt to 20 N.m (15 lb ft).

    Fig 5: Cross Vehicle Beam & Bolt
    G01672768Courtesy of GENERAL MOTORS CORP.
  7. Install the upper support bracket bolts for the HVAC module.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

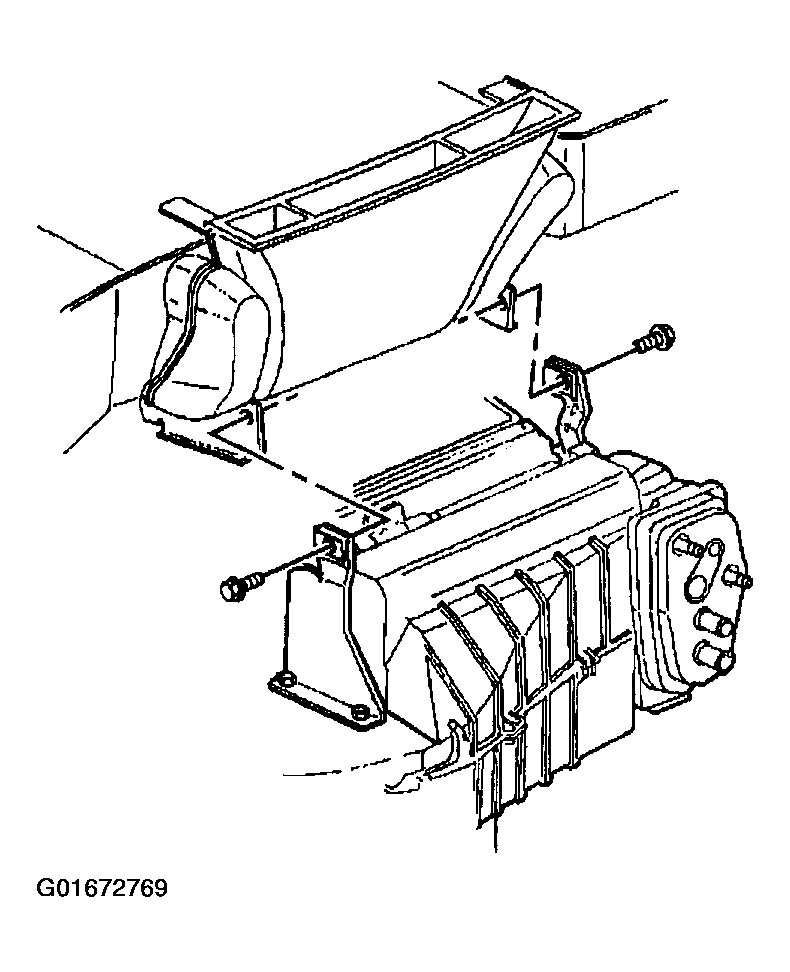

    Fig 6: HVAC Module Upper Support Bracket Bolts
    G01672769Courtesy of GENERAL MOTORS CORP.
  8. Install the HVAC module center support bracket.
  9. Install the bolts to the center support bracket of the HVAC module.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  10. Install the instrument panel wiring harness on to the cross vehicle beam and secure the retaining clips.
    Fig 7: HVAC Module Center Support Bracket & Bolts
    G01672770Courtesy of GENERAL MOTORS CORP.
  11. Install the BCM bracket and the retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

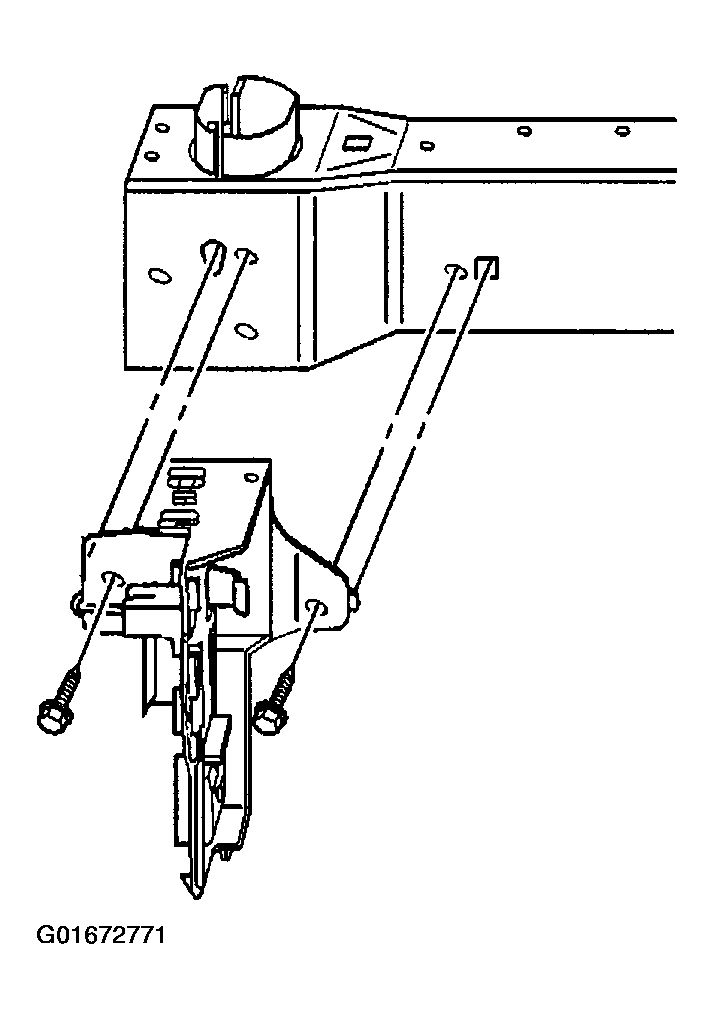

    Fig 8: BCM Bracket & Retaining Bolts
    G01672771Courtesy of GENERAL MOTORS CORP.
  12. Install the fuse block to the holder.
  13. Install the two screws below the fuse block that hold the main wire harness connector to the cross car beam.

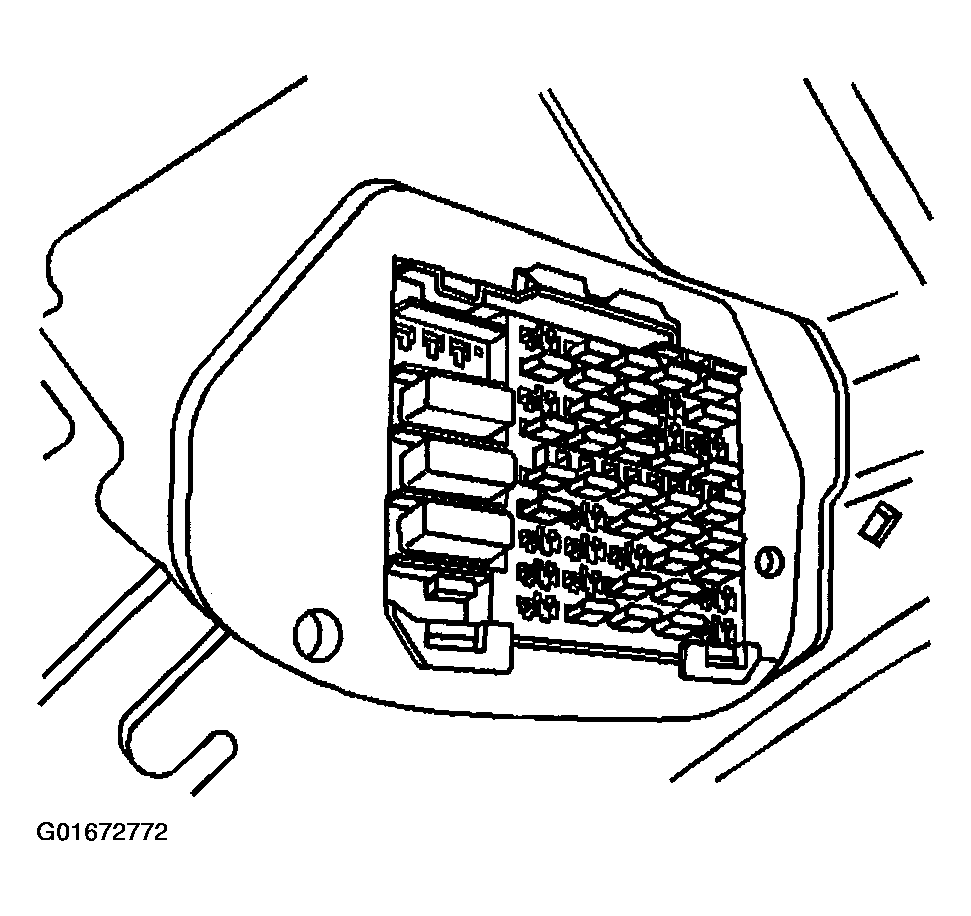

    Fig 9: Fuse Block
    G01672772Courtesy of GENERAL MOTORS CORP.
  14. Install the support bracket and bolts for the steering column.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  15. Install the brake pedal. Refer to BRAKE PEDAL ASSEMBLY .
  16. Install the passenger side SIR inflator module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  17. Install the air distribution ducts. Refer to Air Distribution Duct Replacement .
  18. Install the IP trim pad. Refer to TRIM PAD REPLACEMENT -- IP .
  19. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

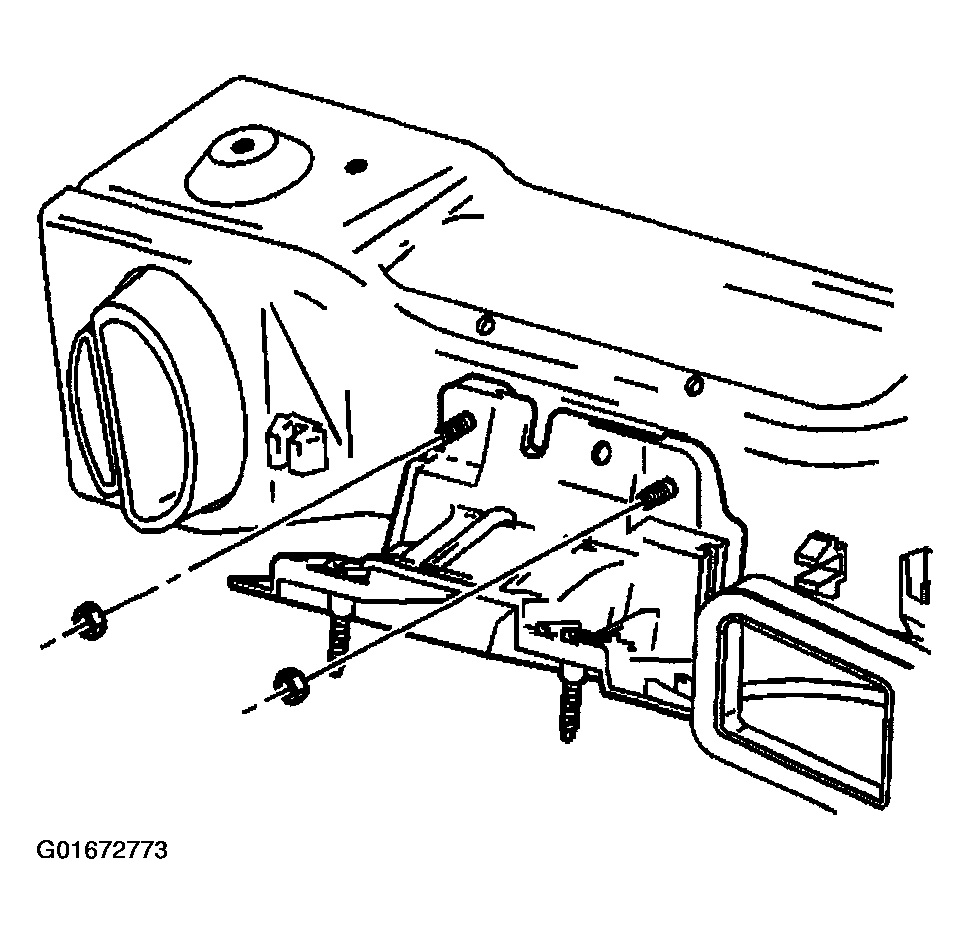

    Fig 10: Steering Column Support Bracket & Bolts
    G01672773Courtesy of GENERAL MOTORS CORP.
