Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor carpet. Refer to CARPET REPLACEMENT - FRONT .
  2. Release the rear floor air outlet duct (1) from the studs and the holes in the floor reinforcement.
  3. Disconnect the lower heater duct from the heater core outlet cover.
  4. Remove the lower heater duct.

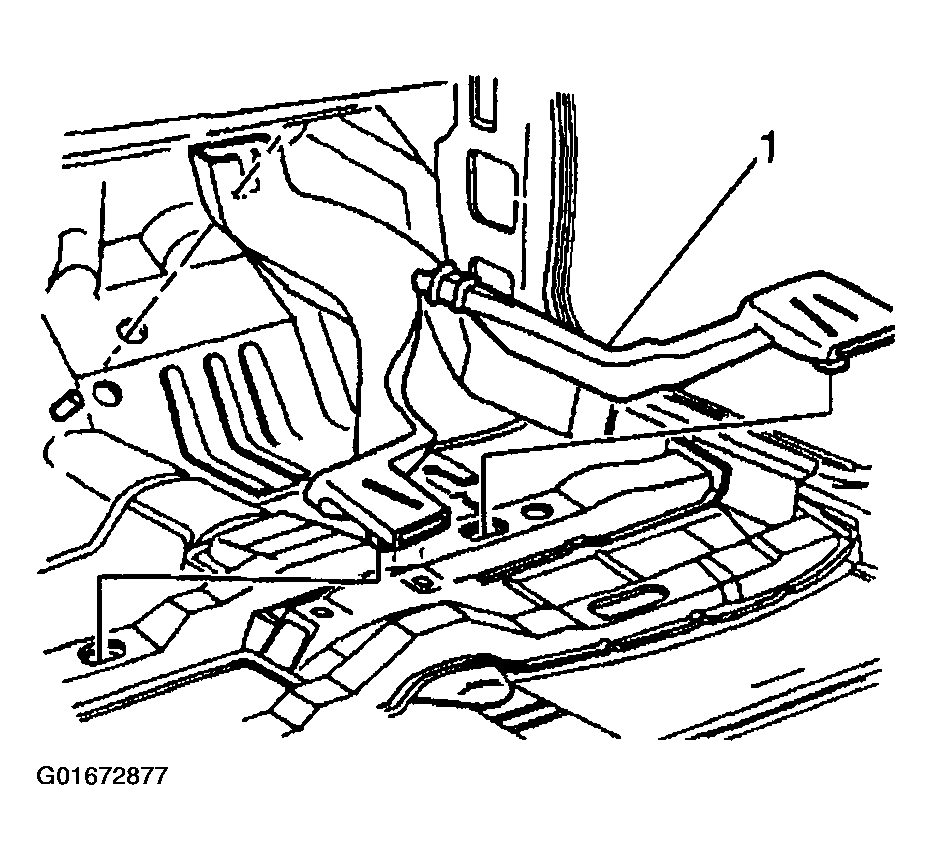

    Fig 1: Rear Floor Air Outlet Duct
    G01672877Courtesy of GENERAL MOTORS CORP.
