Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower heat duct.
  2. Connect the lower heater duct to the heater core outlet cover.
  3. Position the rear floor air outlet duct (1) onto the studs and the holes in the floor reinforcement and press into place.
  4. Install the floor carpet. Refer to CARPET REPLACEMENT - FRONT .

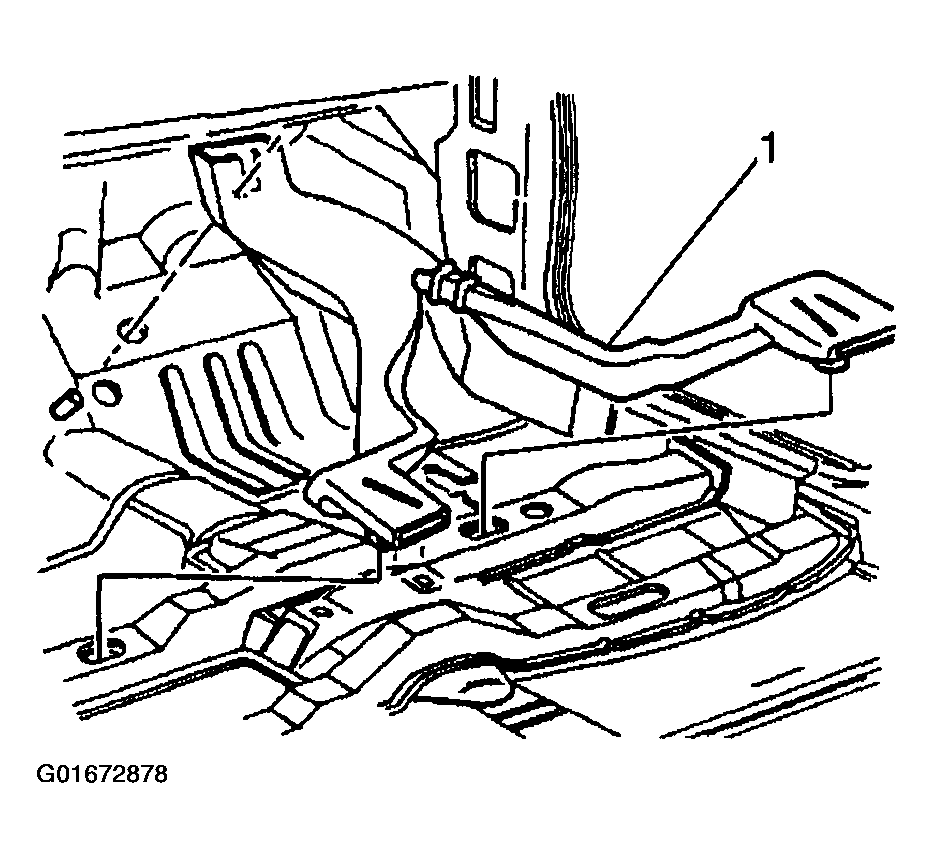

    Fig 1: Rear Floor Air Outlet Duct
    G01672878Courtesy of GENERAL MOTORS CORP.
