Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center air distribution duct.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the mounting screw.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

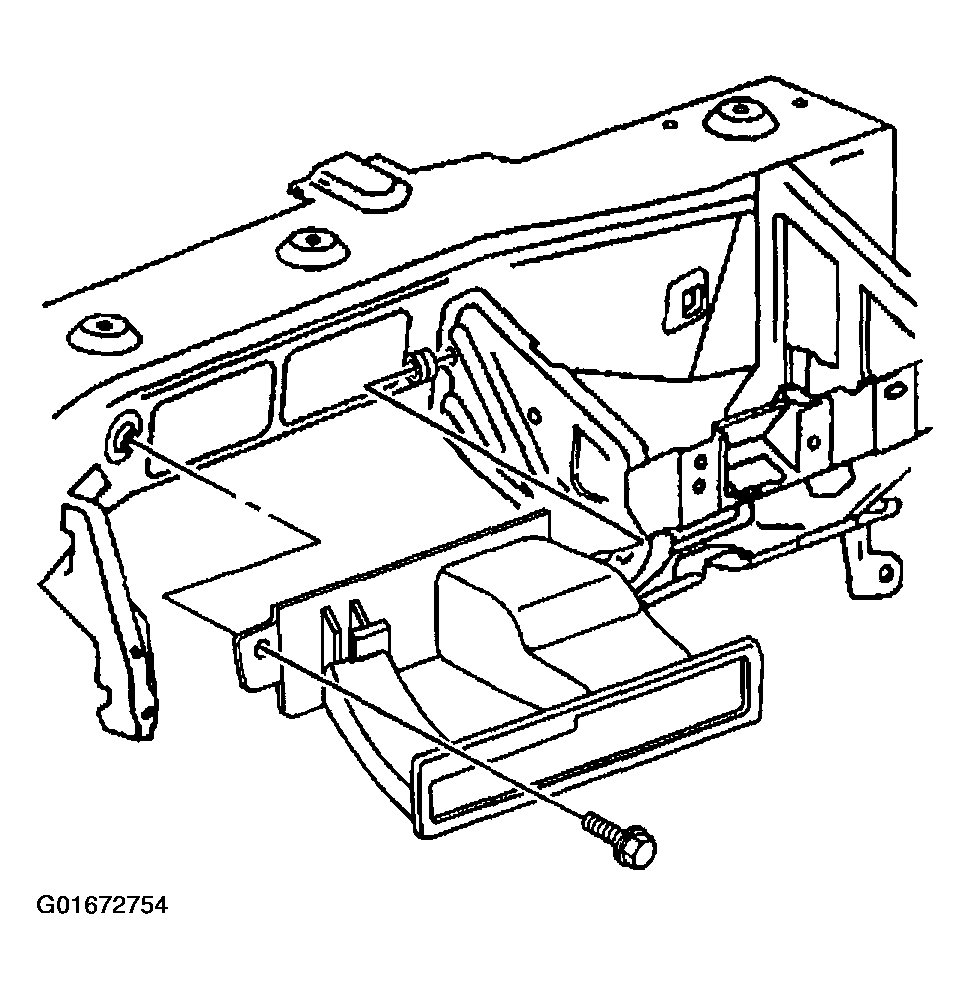

    Fig 1: Center Air Duct & Screw
    G01672754Courtesy of GENERAL MOTORS CORP.
  3. Install the side air distribution ducts.
  4. Install the mounting screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  5. Install the instrument panel. Refer to TRIM PAD REPLACEMENT -- IP .

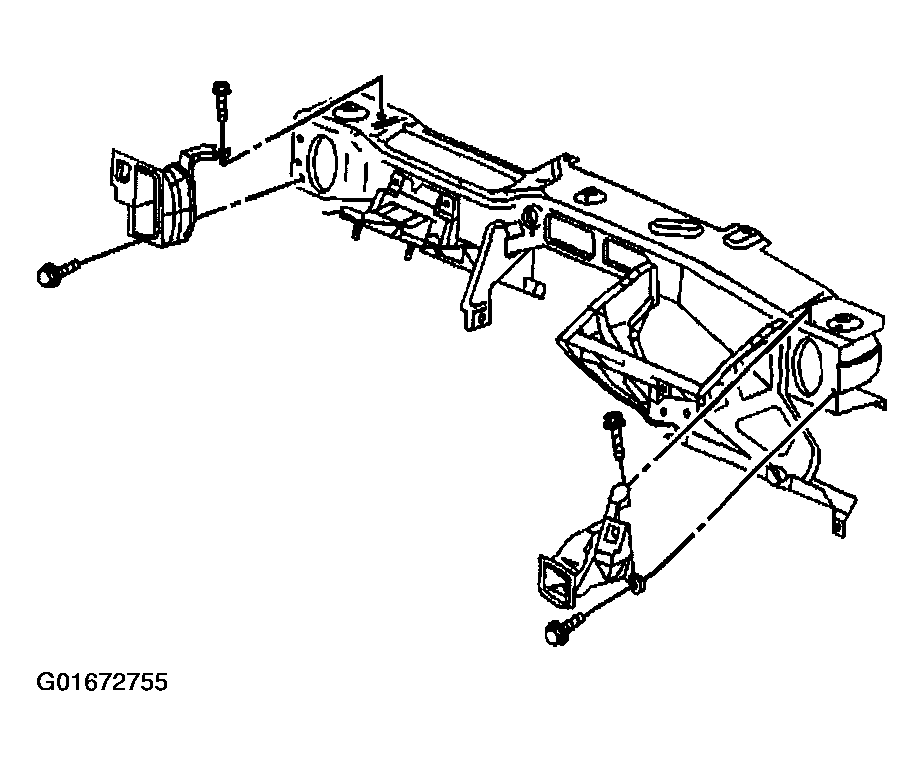

    Fig 2: Side Air Ducts & Screws
    G01672755Courtesy of GENERAL MOTORS CORP.
