Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the accumulator to the mounting bracket.

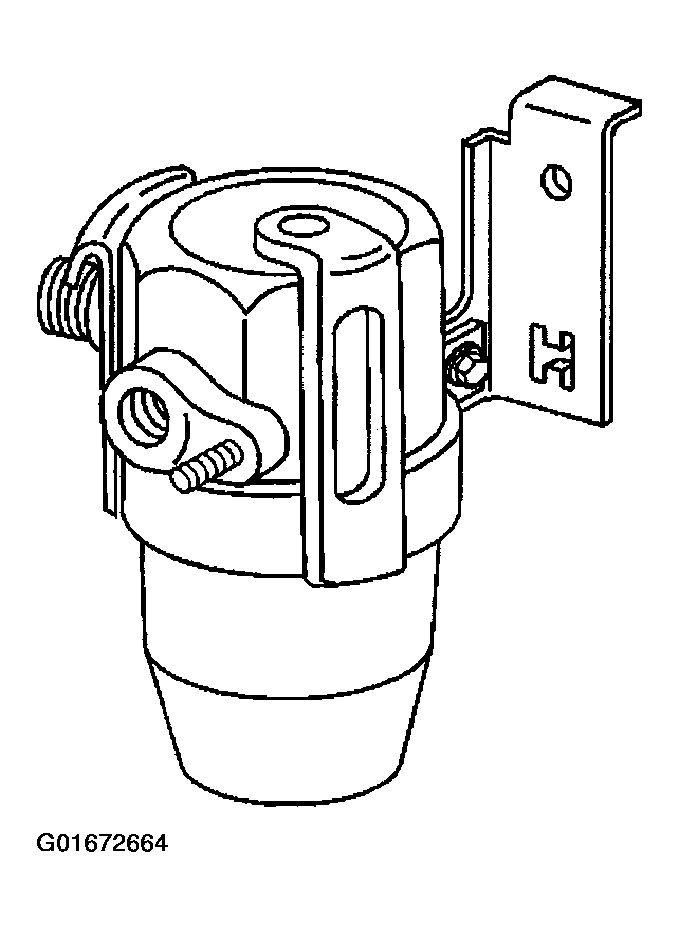

    Fig 1: Accumulator & Mounting Bracket
    G01672664Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the accumulator bracket bolt clamp.

    Tighten

    Tighten the bolt to 4 N.m (36 lb in).

  3. Install the accumulator.
  4. Install the accumulator bracket retaining bolt.

    Tighten

    Tighten the bolt to 4 N.m (36 lb in).

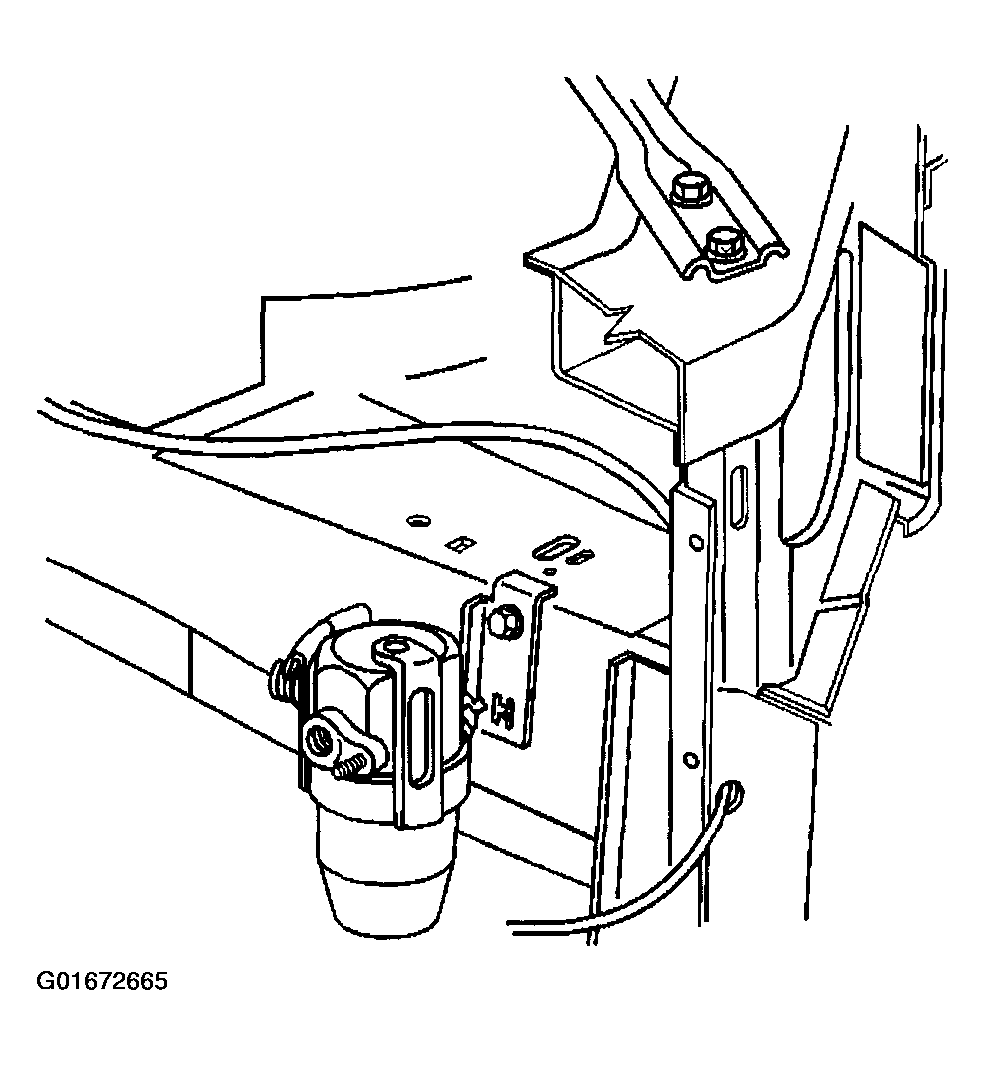

    Fig 2: Accumulator, Bracket , Bolt & Clamp
    G01672665Courtesy of GENERAL MOTORS CORP.

    Important:  Coat the new O-ring seals and seal washers with a mineral base 525 viscosity refrigerant oil.

  5. Install the new O-ring seals onto the A/C compressor hose and the suction hose. Refer to O-Ring Replacement .
  6. Connect the suction hose onto the accumulator.
  7. Tighten the suction hose nut (2).

    Tighten

    Tighten the nut to 47 N.m (35 lb ft).

    Fig 3: Suction Hose Nut
    G01672666Courtesy of GENERAL MOTORS CORP.
  8. Connect the A/C compressor hose to the accumulator.
  9. Install the A/C compressor hose nut (1) onto the accumulator.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  10. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .
  11. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  12. Leak test the fittings of the component using J 39400-A  .

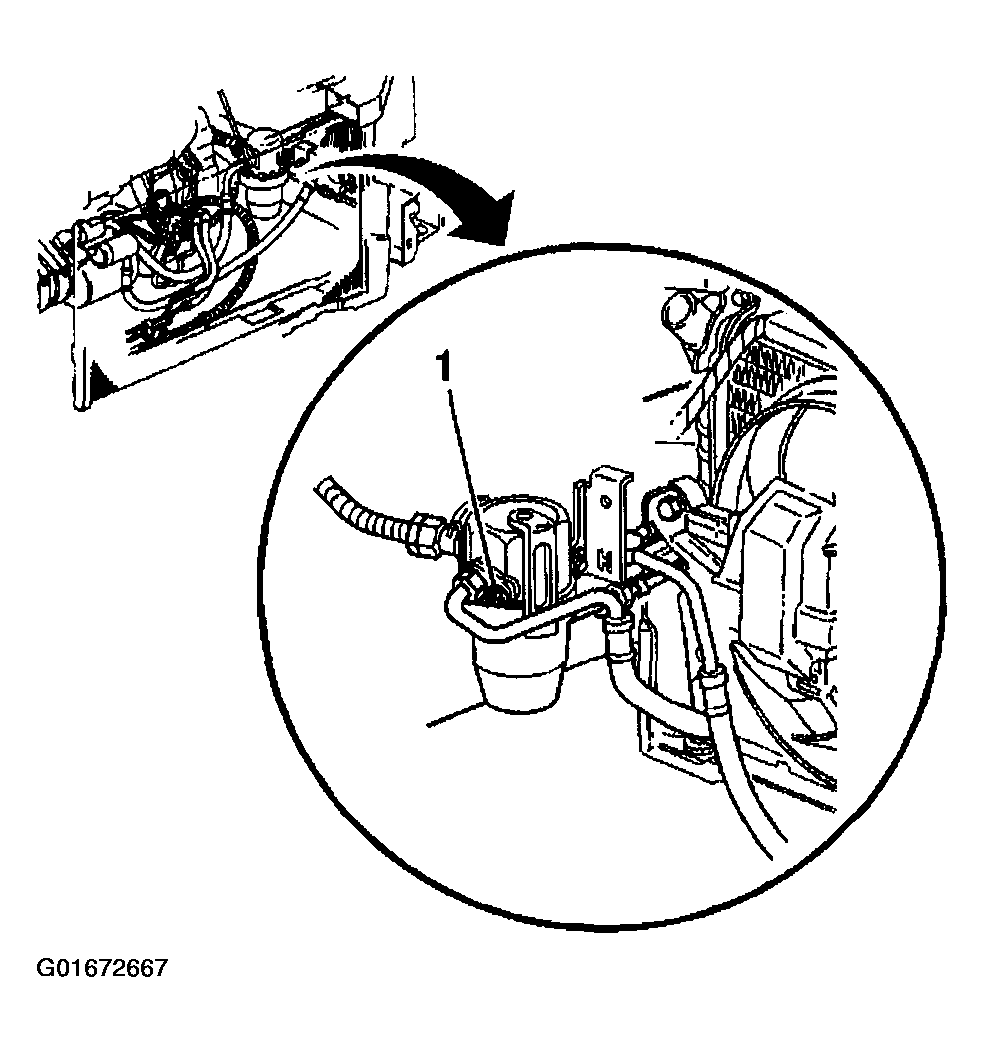

    Fig 4: A/C Compressor Hose Nut
    G01672667Courtesy of GENERAL MOTORS CORP.
