Odor Diagnosis

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

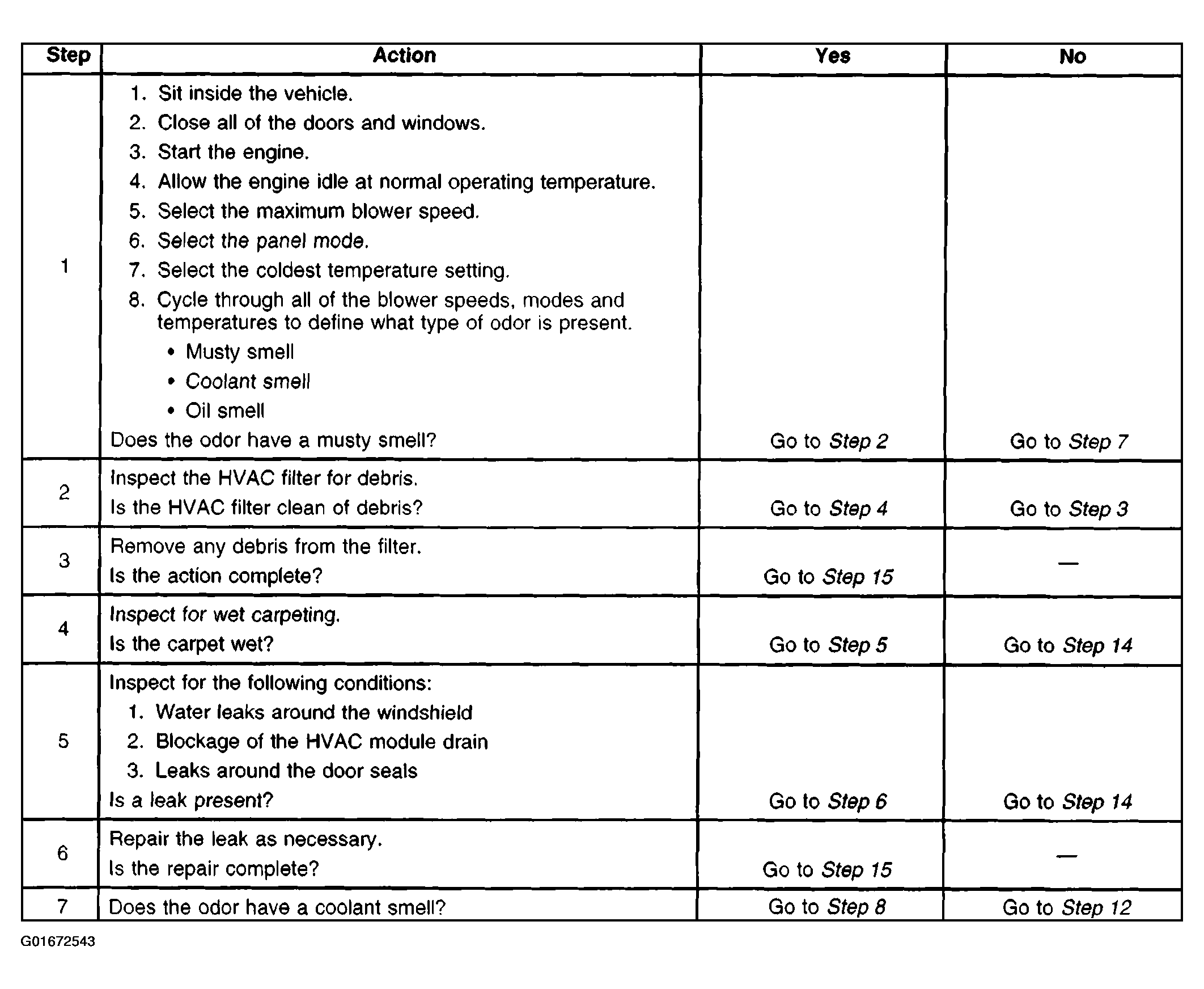

Fig 1: Odor Diagnosis
G01672543Courtesy of GENERAL MOTORS CORP.
Fig 2: Odor Diagnosis
G01672544Courtesy of GENERAL MOTORS CORP.
