Air Conditioning (A/C) Diagnostics - Pressure Zone D

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

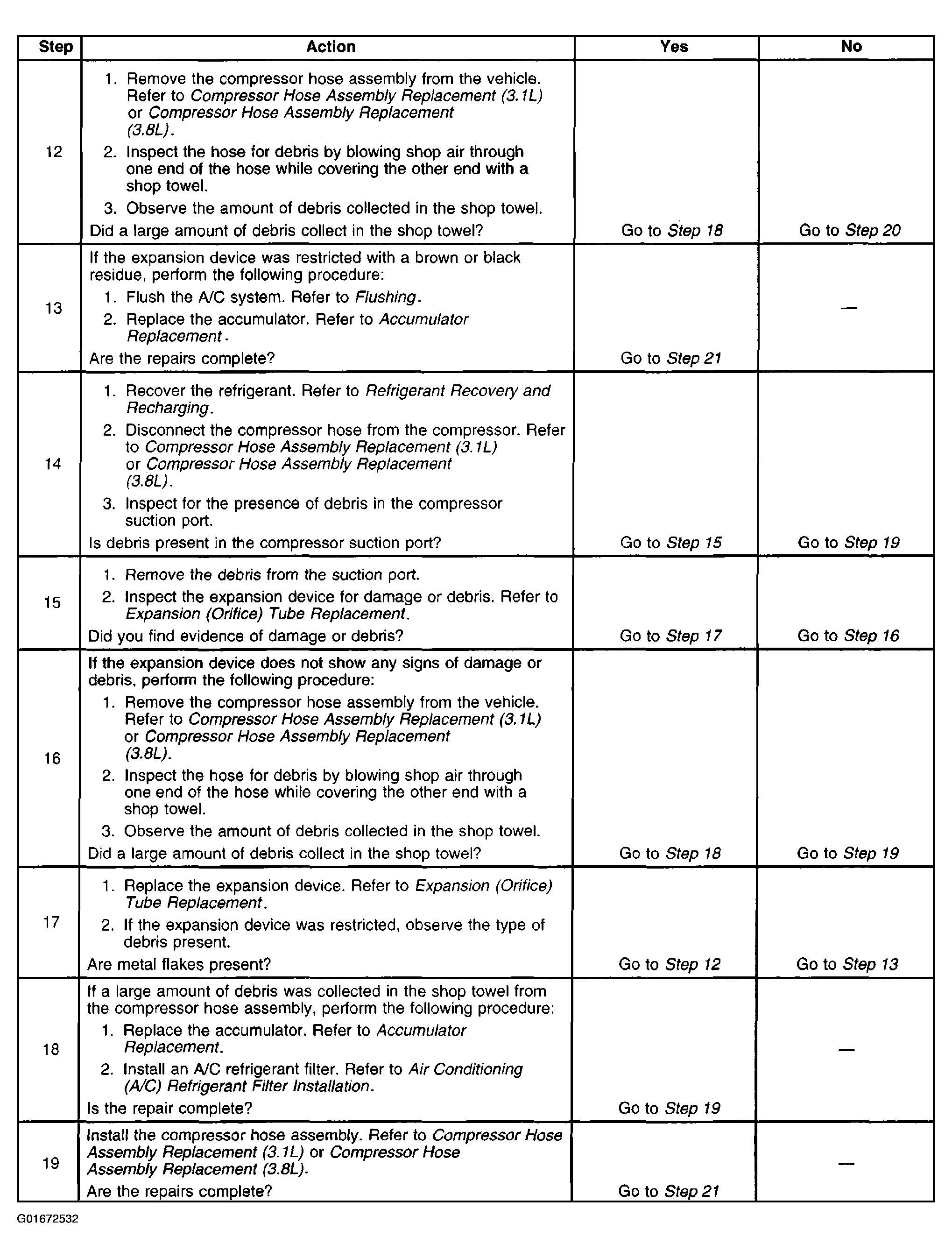

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone D (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

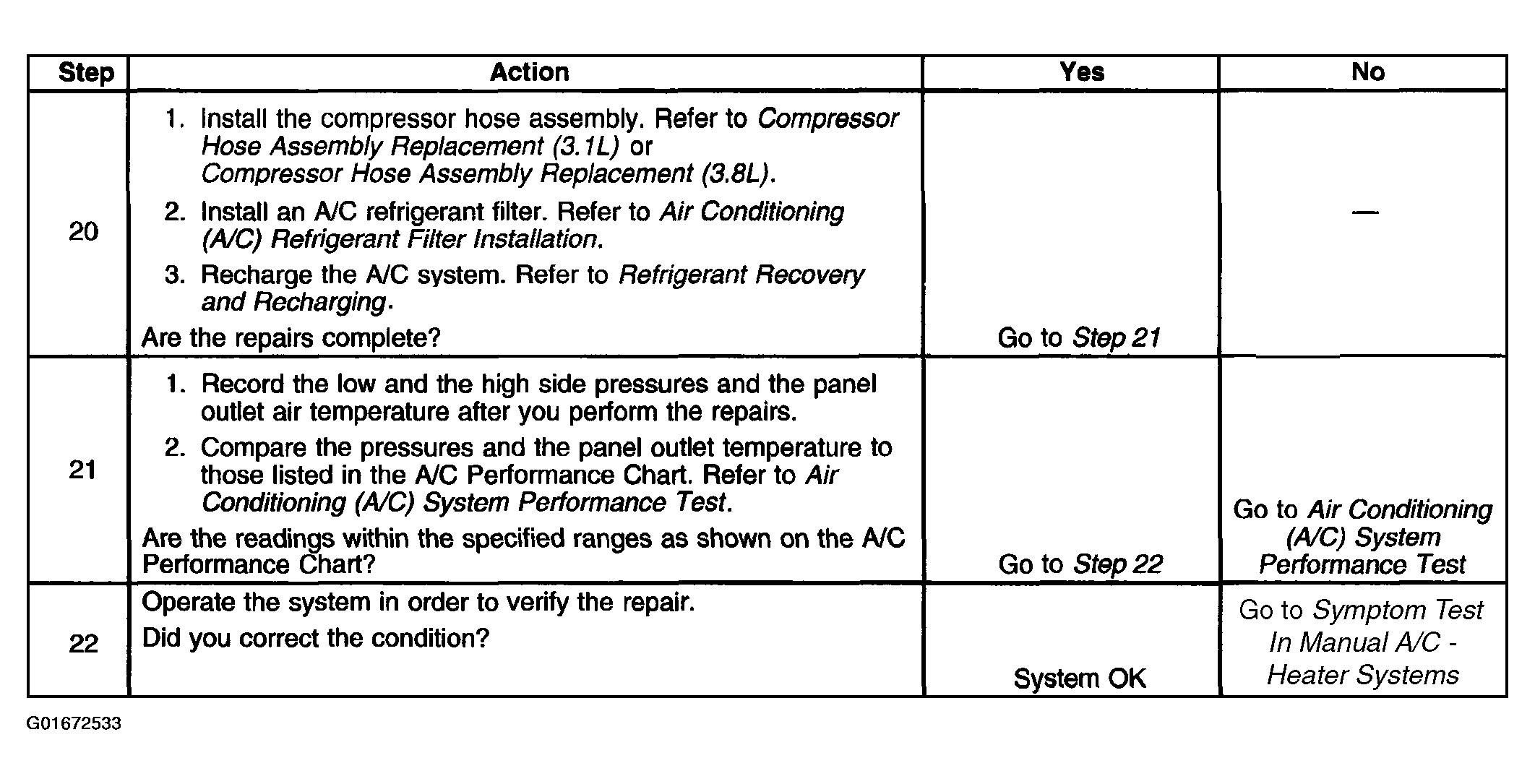

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone D (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

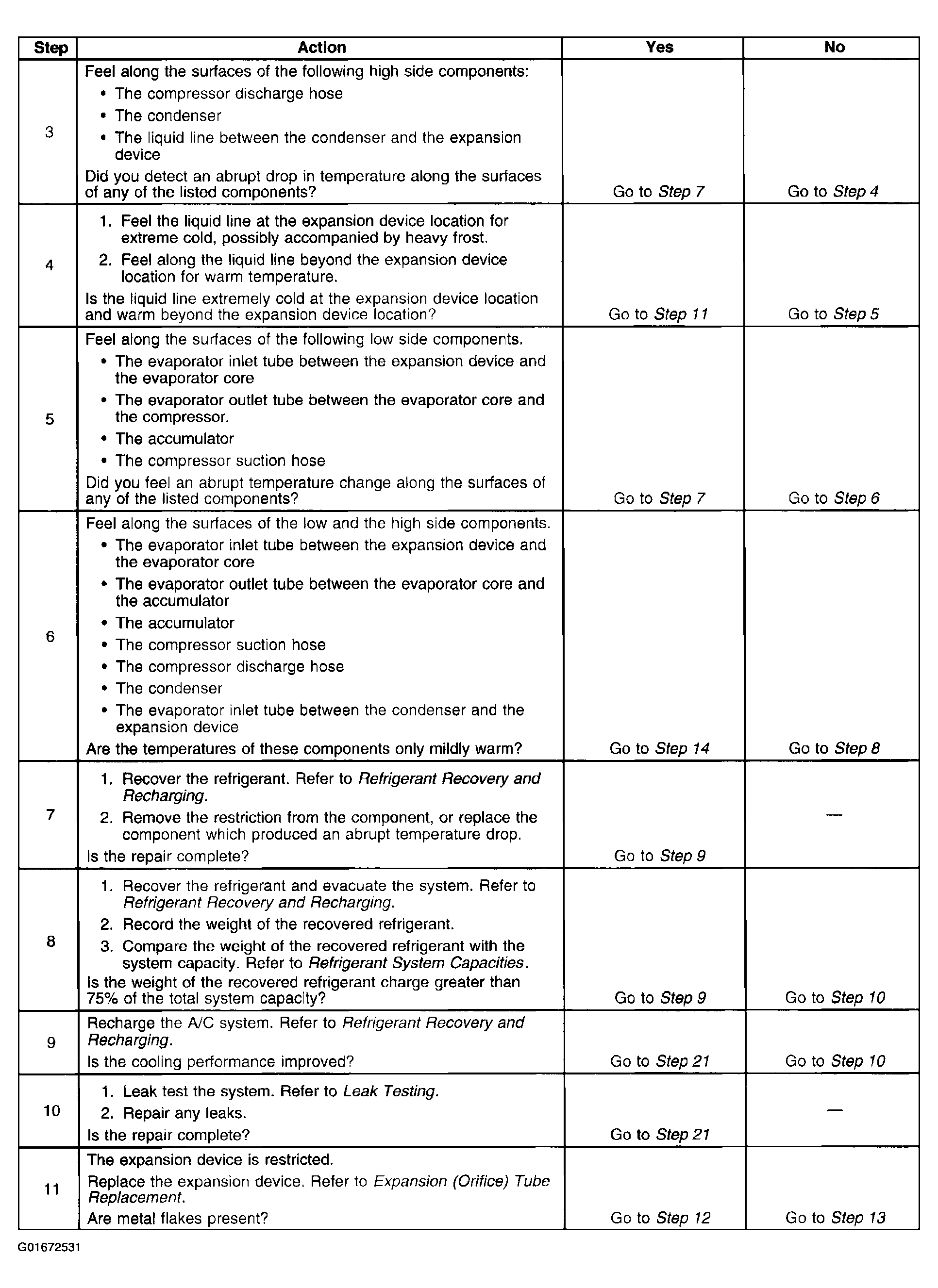

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone D (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Air Conditioning (A/C) Diagnostics - Pressure Zone D (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
