Air Conditioning (A/C) Diagnostics - Pressure Zone A

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

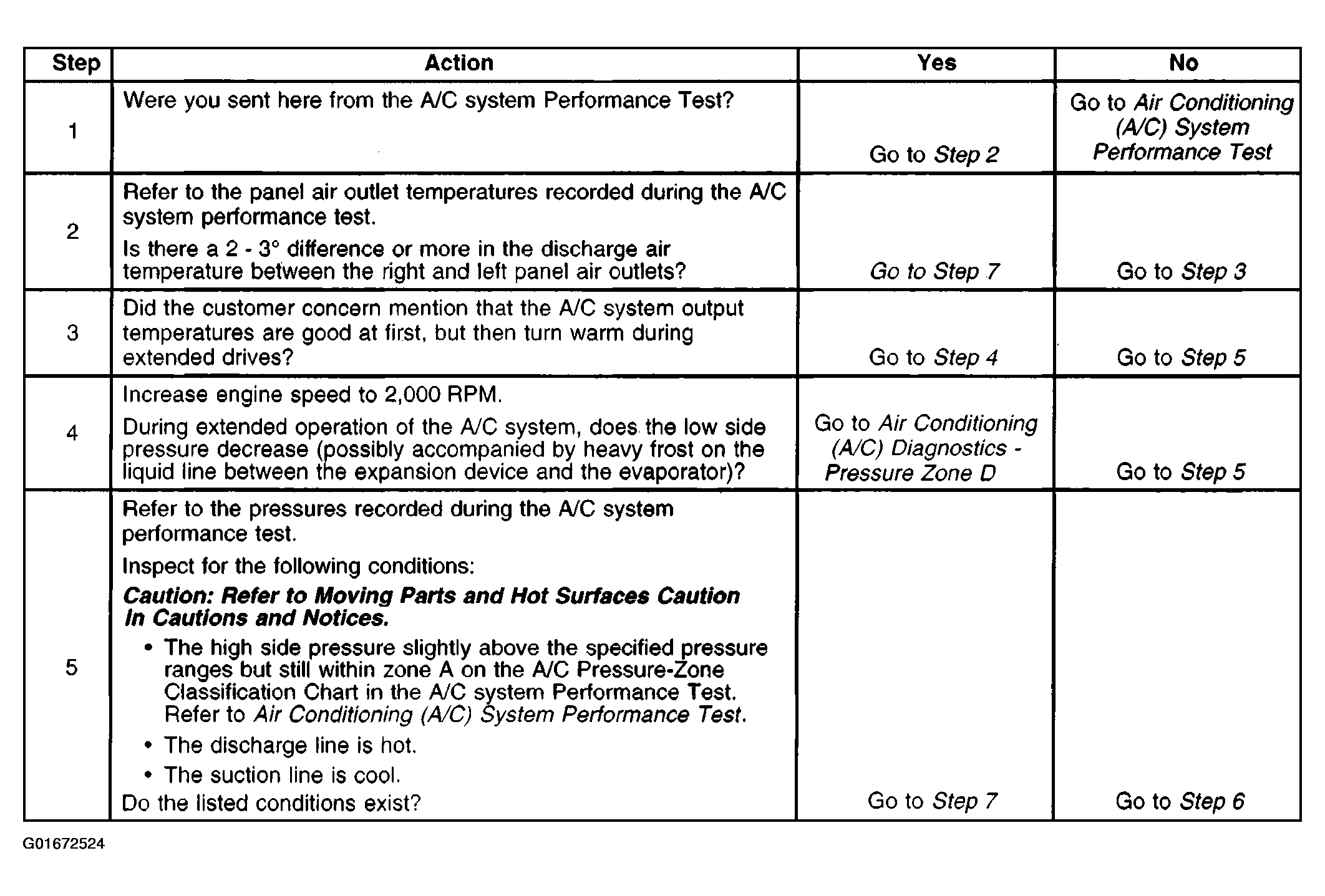

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone A (1 Of 3)
G01672524Courtesy of GENERAL MOTORS CORP.
Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone A (2 Of 3)
G01672525Courtesy of GENERAL MOTORS CORP.

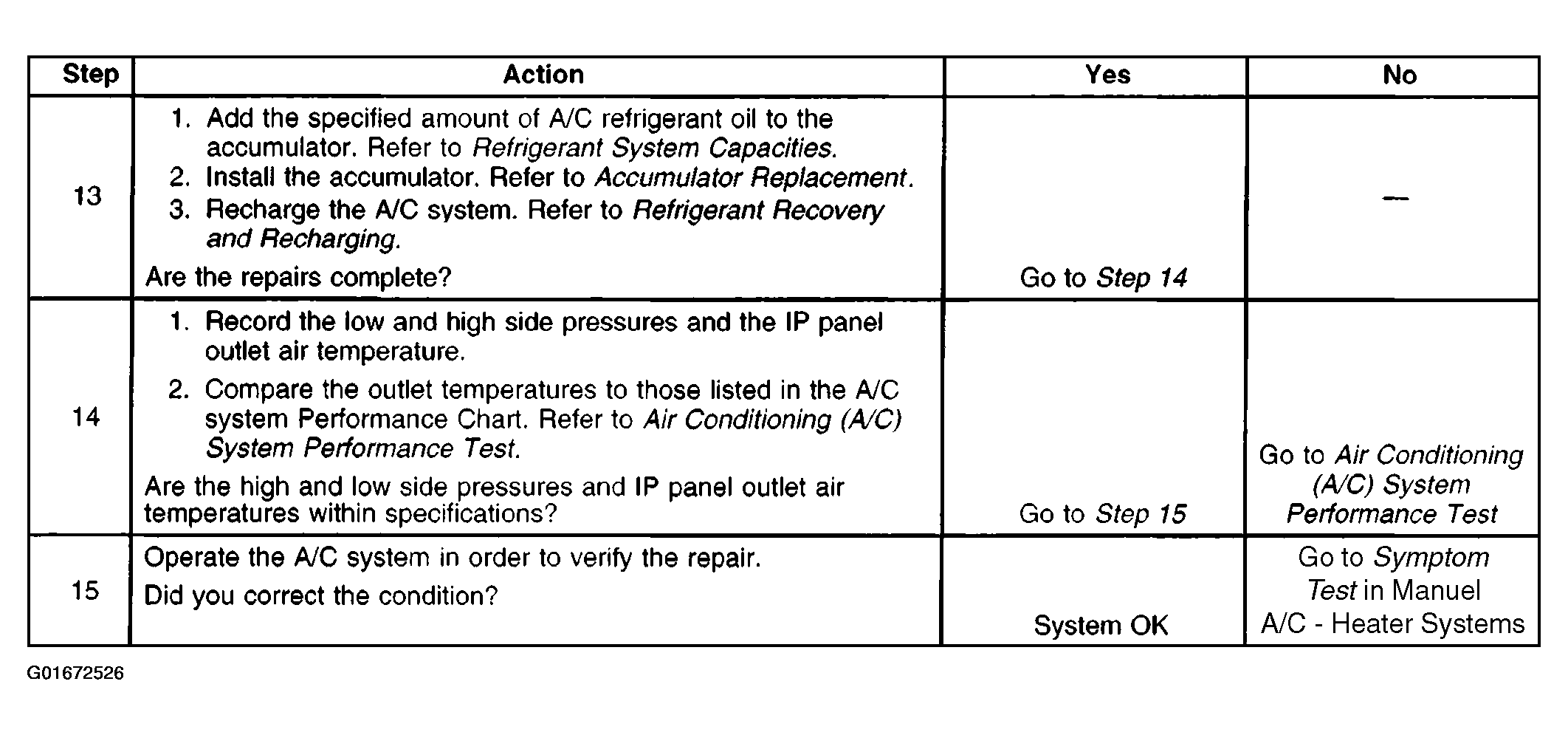

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone A (3 Of 3)
G01672526Courtesy of GENERAL MOTORS CORP.
