Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .
  2. Remove the left and the right engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT and ENGINE MOUNT STRUT REPLACEMENT - RIGHT .
  3. Remove the exhaust crossover pipe from the left exhaust manifold. Refer to Exhaust Crossover Pipe Replacement (3.1L)  or Exhaust Crossover Pipe Replacement (3.8L) .
  4. Remove the left spark plug wires from the left spark plugs. Refer to
  5. Remove the oil level indicator tube. Refer to OIL LEVEL INDICATOR AND TUBE REPLACEMENT .
  6. Remove the left engine lift bracket bolt, nut and the engine lift bracket from the left exhaust manifold.

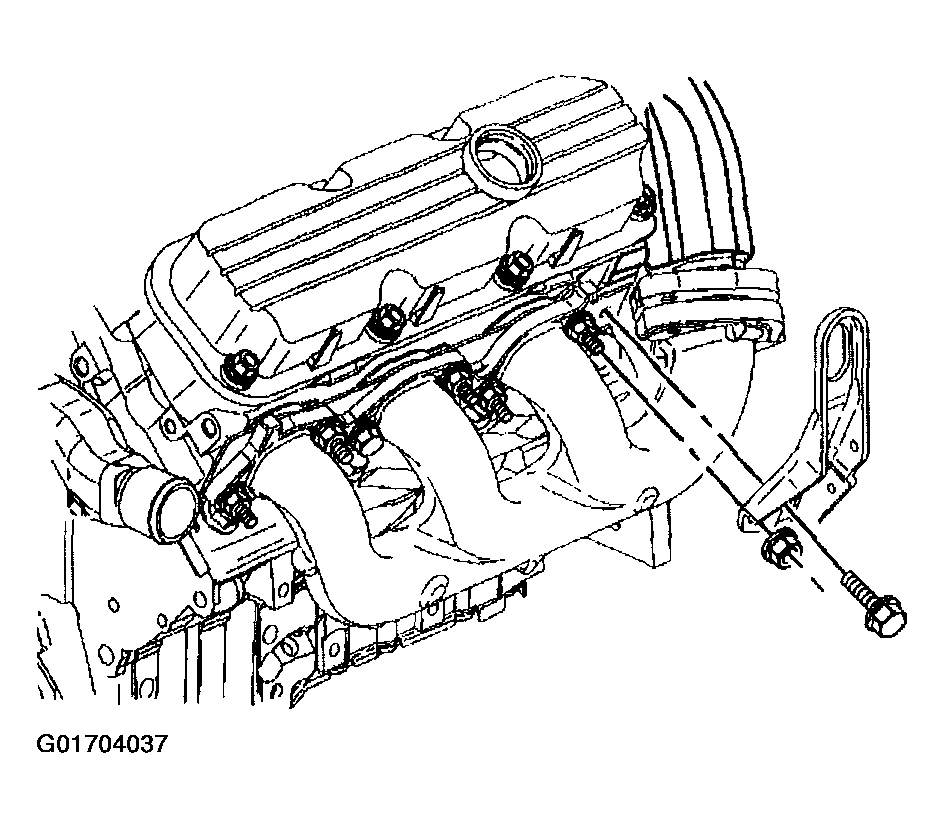

    7. Fig 1: Left Engine Lift Bracket, Bolt & Nut
    G01704037Courtesy of GENERAL MOTORS CORP.
  7. Remove the left exhaust manifold heat shield nuts.
  8. Remove the left exhaust manifold heat shield.

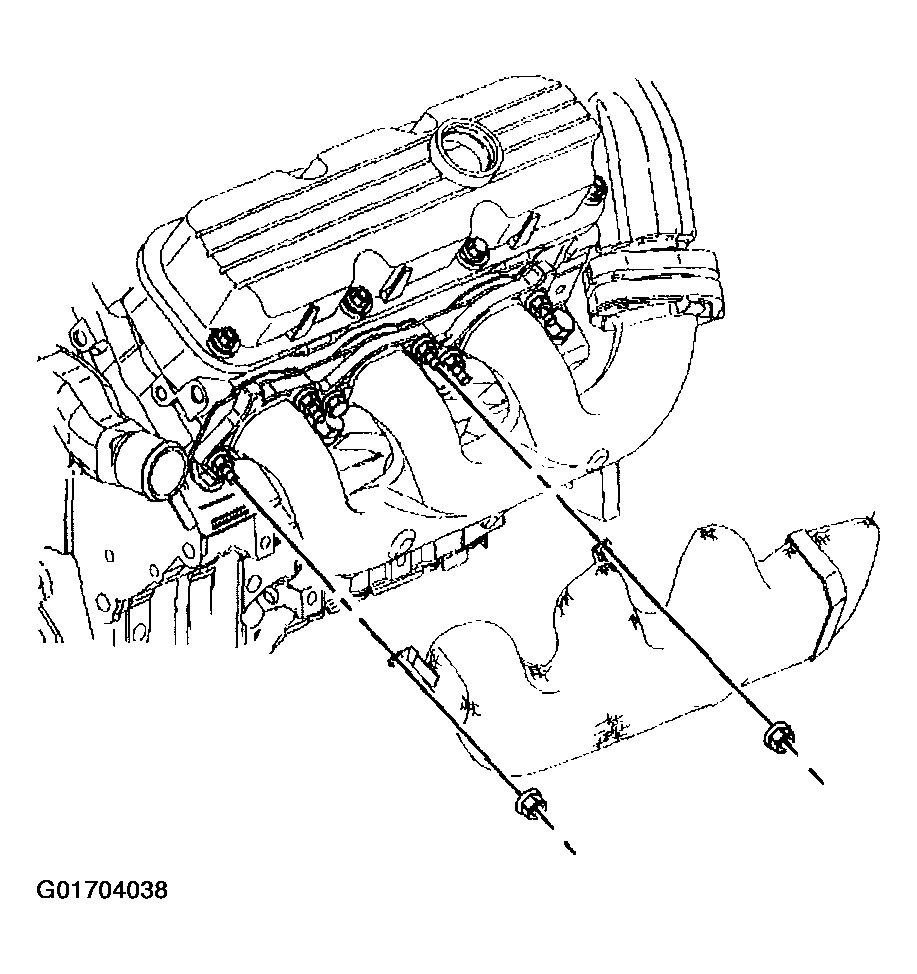

    Fig 2: Left Exhaust Manifold Heat Shield & Nuts
    G01704038Courtesy of GENERAL MOTORS CORP.
  9. Remove the left exhaust manifold retaining bolts, nuts and studs from the left exhaust manifold.
  10. Remove the left exhaust manifold.
  11. Remove the left exhaust manifold gasket.

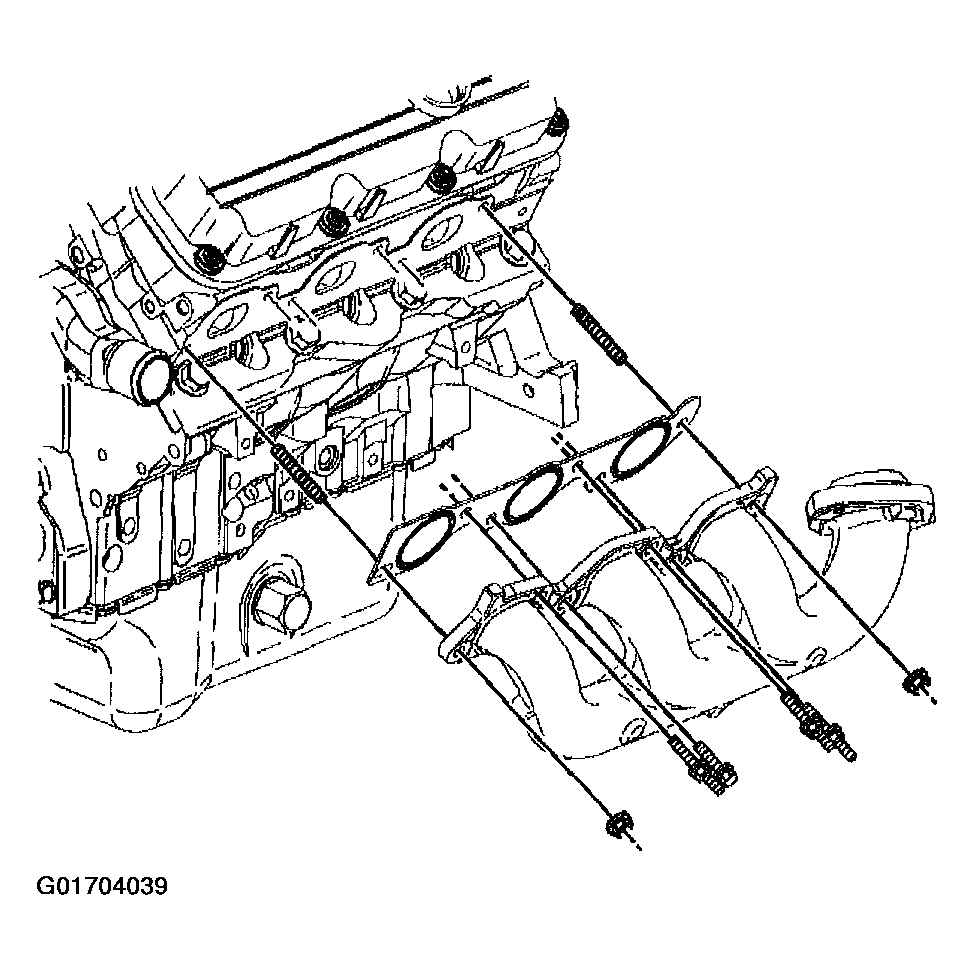

    Fig 3: Left Exhaust Manifold, Gasket, Bolts, Nuts & Studs
    G01704039Courtesy of GENERAL MOTORS CORP.
