Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust crossover pipe seal to the exhaust crossover pipe at the right exhaust manifold connection.
  2. Install the exhaust crossover pipe.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the exhaust crossover pipe bolts and studs.

    Tighten

    Tighten the exhaust crossover pipe bolts and studs to 18 N.m (13 lb ft).

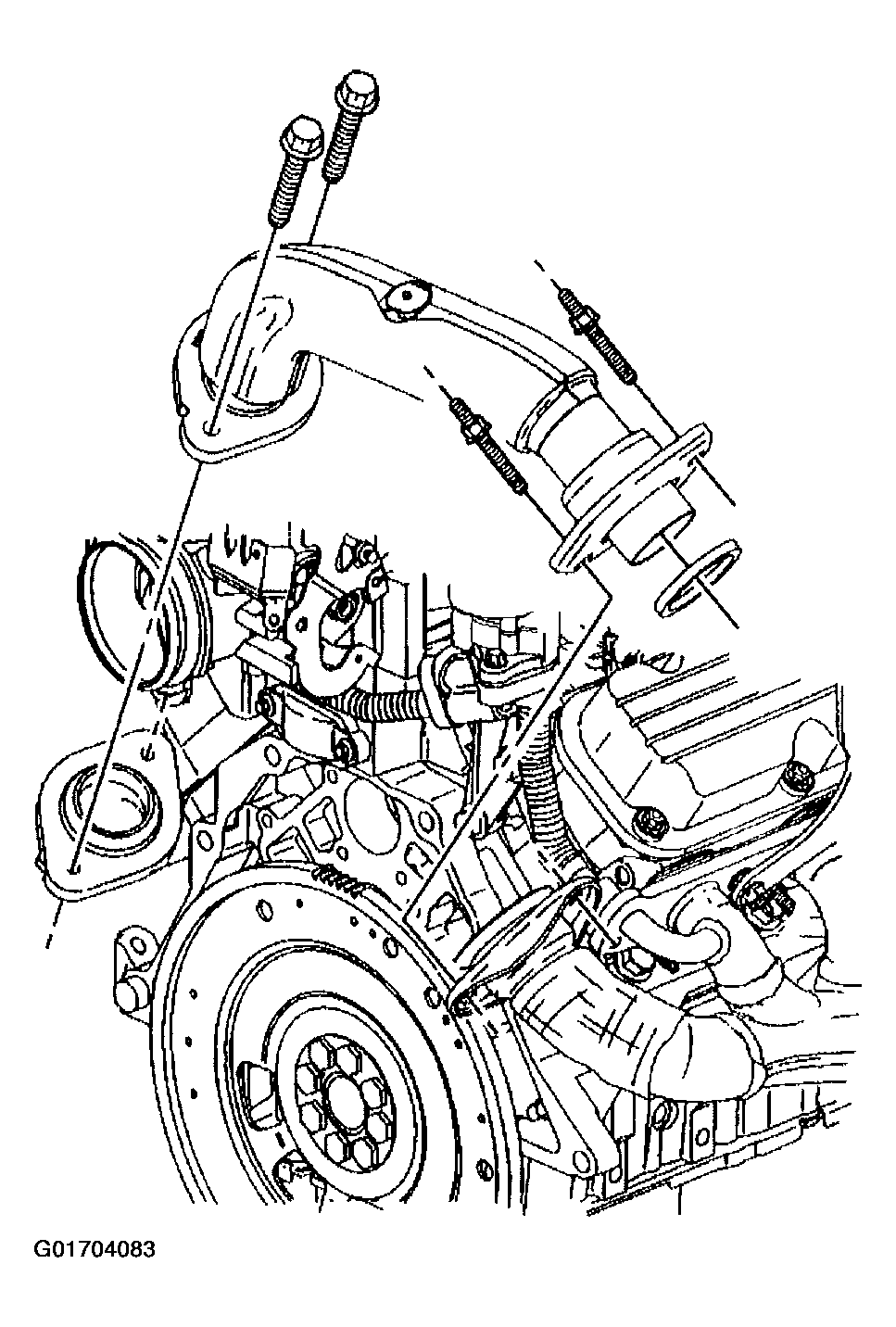

    Fig 1: Exhaust Crossover Pipe, Seal, Bolts & Studs
    G01704083Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust crossover heat shield.
  5. Install the exhaust crossover heat shield nuts.

    Tighten

    Tighten the exhaust crossover heat shield nuts to 20 N.m (15 lb ft).

  6. Install the throttle body air intake duct. Refer to AIR CLEANER INTAKE DUCT .
  7. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .

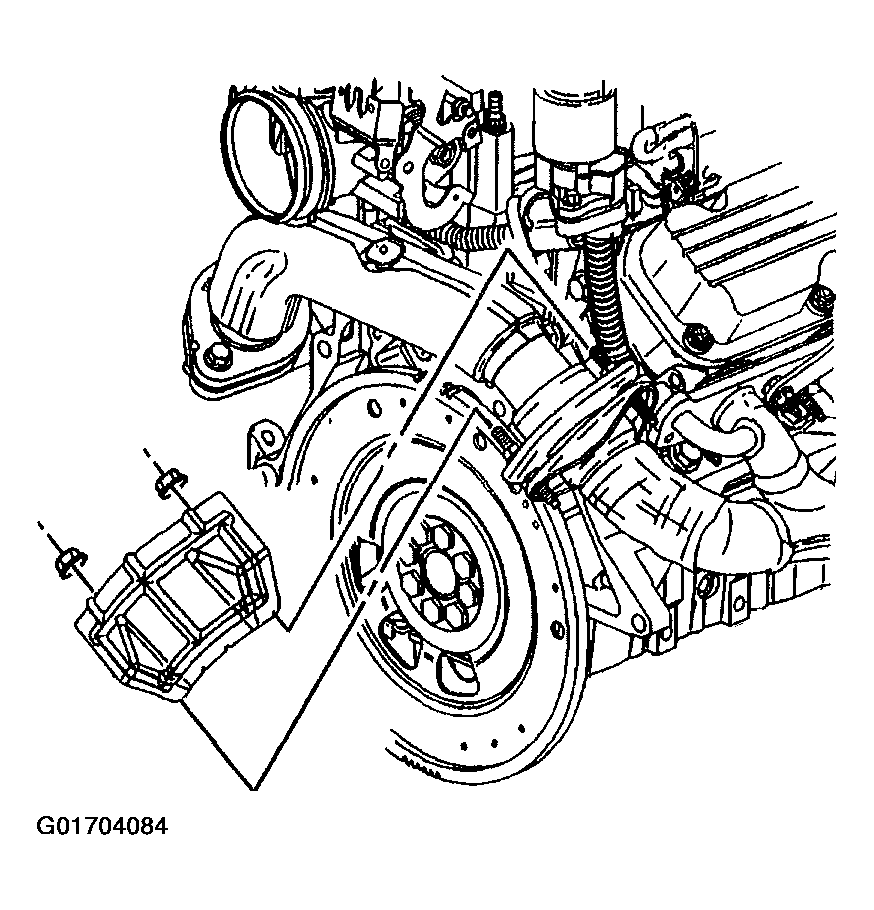

    Fig 2: Exhaust Crossover Heat Shield & Nuts
    G01704084Courtesy of GENERAL MOTORS CORP.
