Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air intake duct. Refer to AIR CLEANER INTAKE DUCT .
  2. Remove the exhaust crossover heat shield bolts.
  3. Remove the exhaust crossover heat shield.

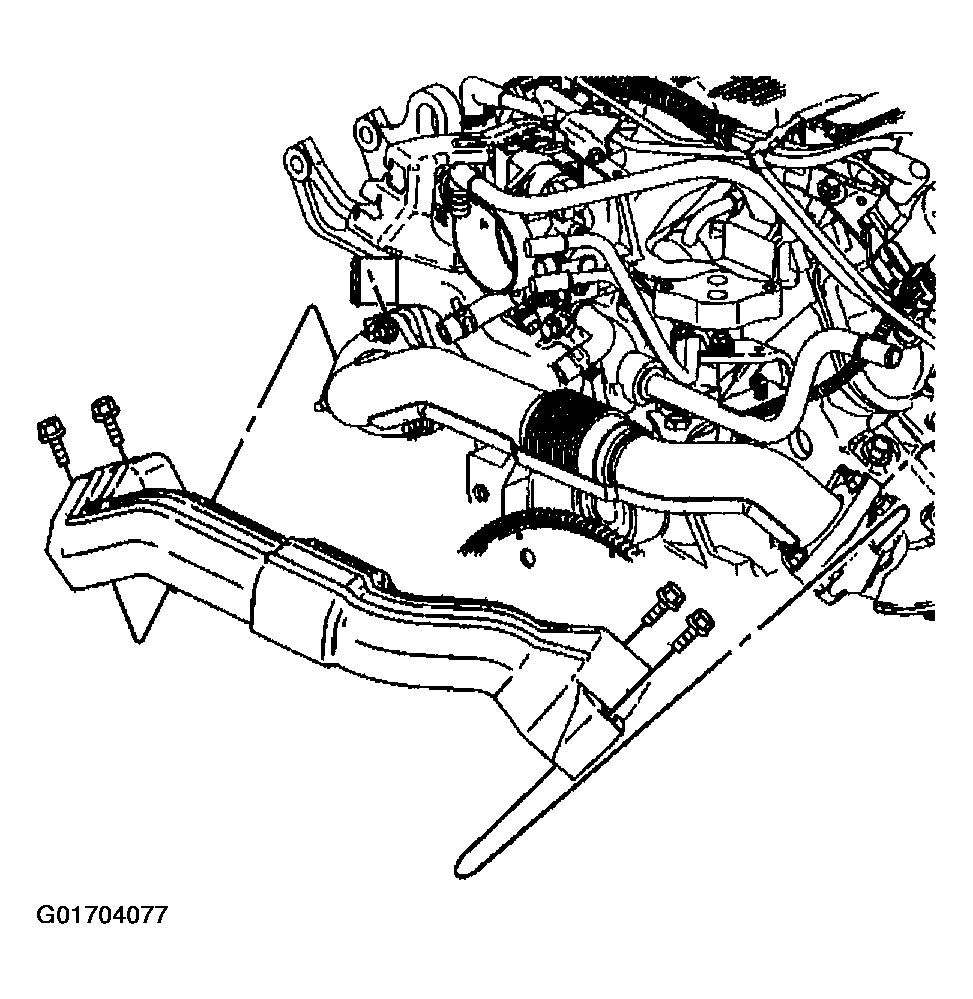

    Fig 1: Exhaust Crossover Heat Shield & Bolts
    G01704077Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust crossover pipe bolts.
  5. Remove the exhaust crossover pipe.

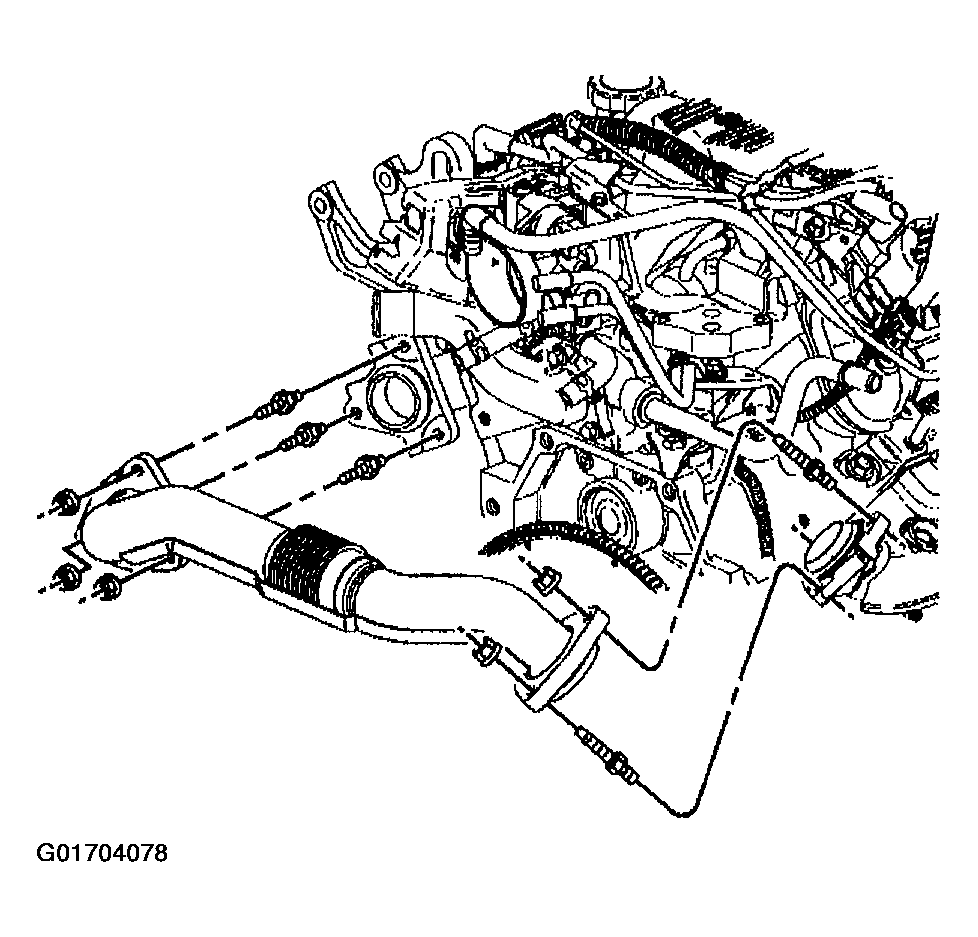

    Fig 2: Exhaust Crossover Pipe & Bolts
    G01704078Courtesy of GENERAL MOTORS CORP.
