Water Outlet Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

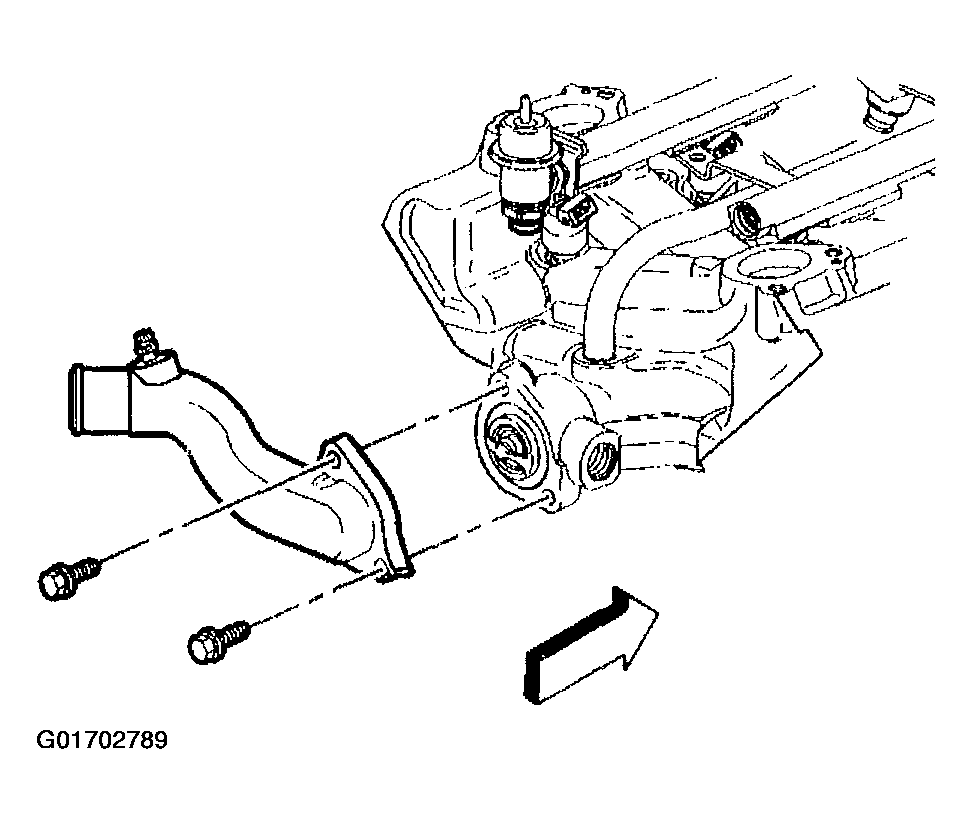

    Fig 1: Water Outlet
    G01702789Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

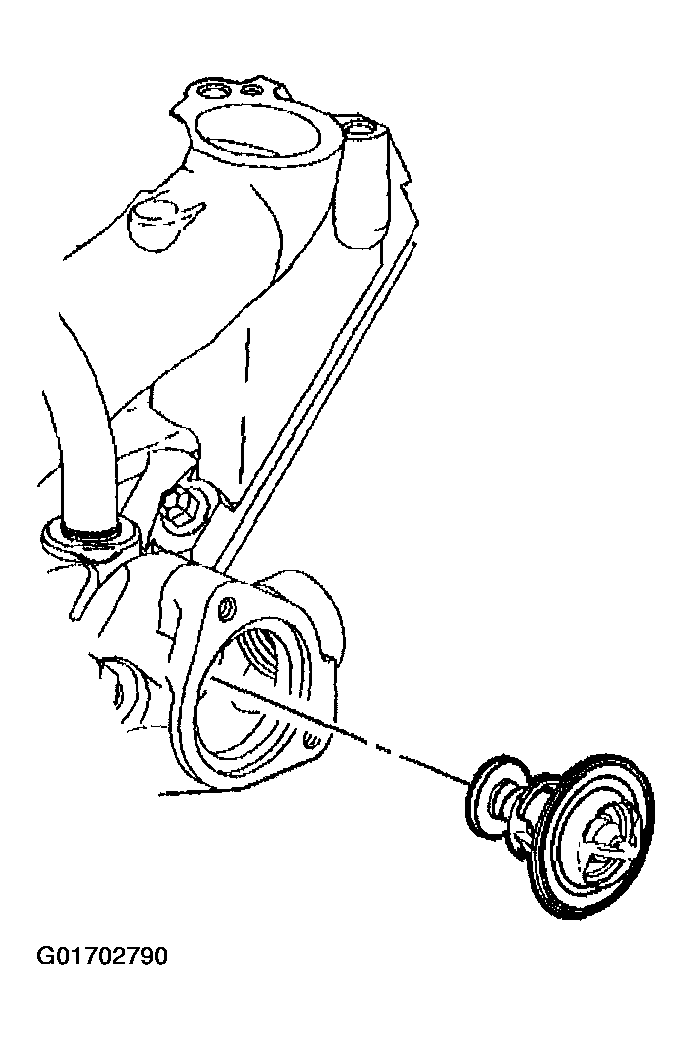

    Fig 2: Thermostat
    G01702790Courtesy of GENERAL MOTORS CORP.
