Water Outlet Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.

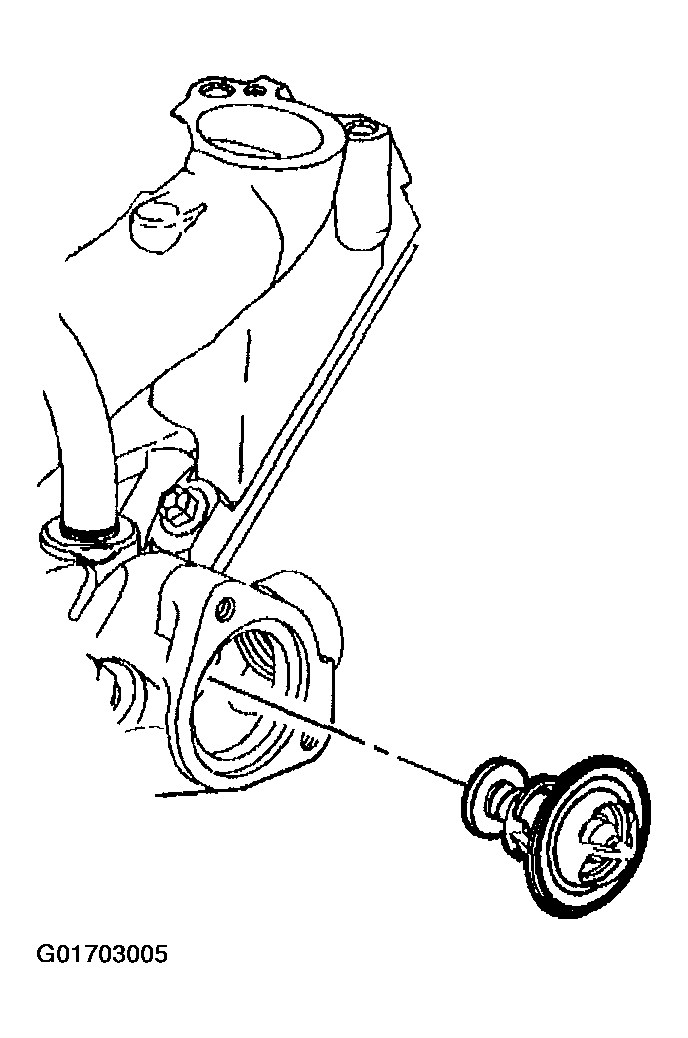

    Fig 1: Thermostat
    G01703005Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 lb ft).

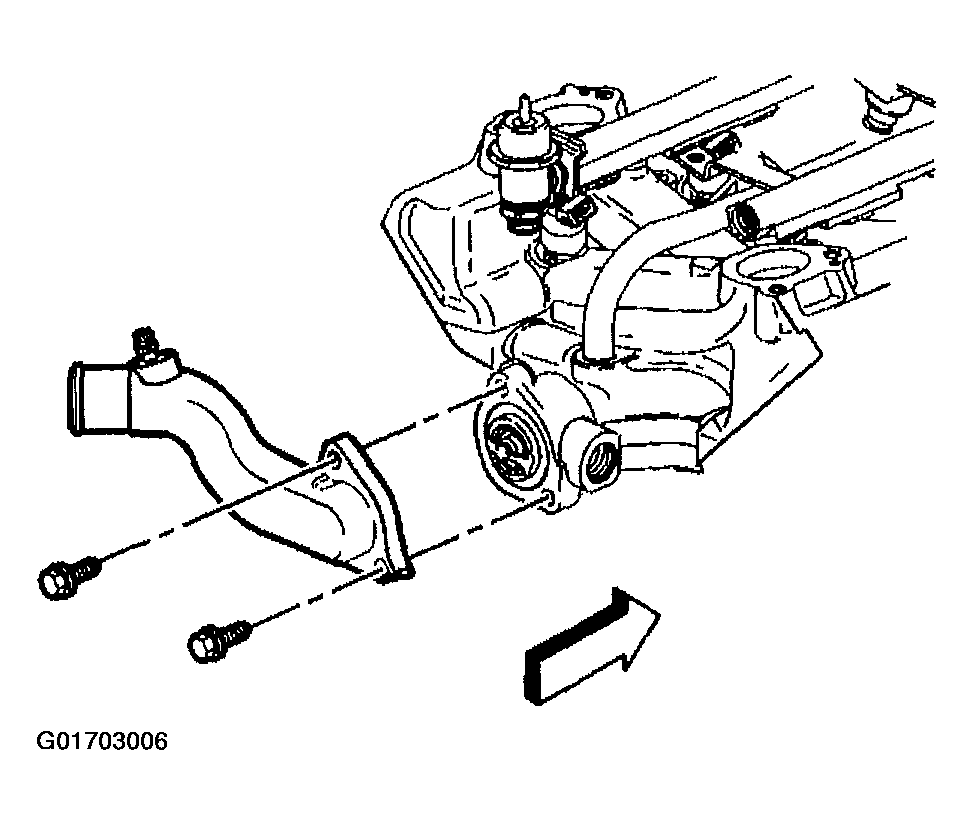

    Fig 2: Water Outlet
    G01703006Courtesy of GENERAL MOTORS CORP.
