Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.
    IMPORTANT: Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they were removed.
  2. Remove the valve rocker arms.

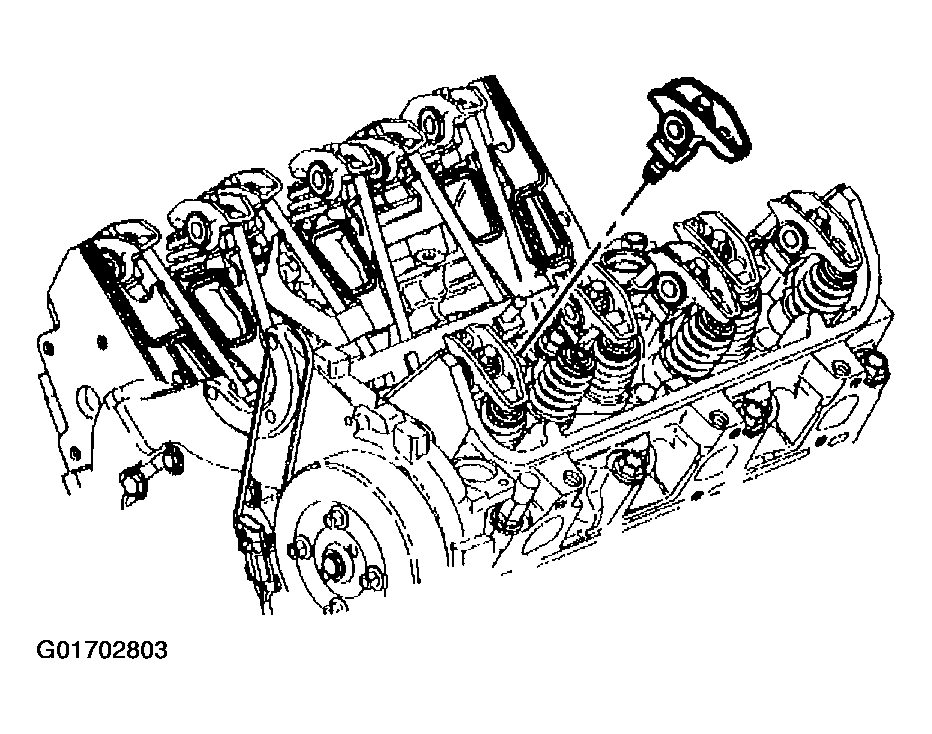

    Fig 1: Valve Rocker Arm
    G01702803Courtesy of GENERAL MOTORS CORP.
  3. Remove the push rods.
    • The intake push rods measure 146 mm (5.75 in).
    • The exhaust push rods measure 152.51 mm (6.0 in).

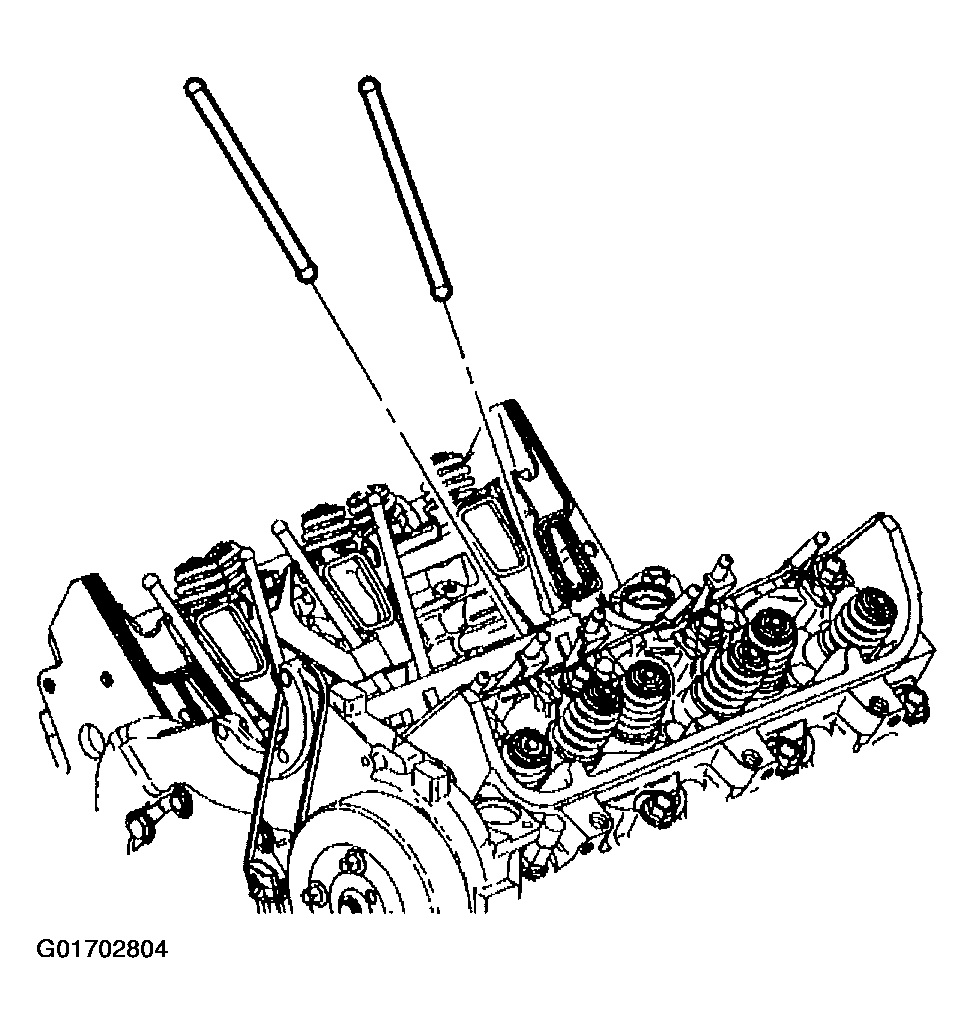

      Fig 2: Push Rods
      G01702804Courtesy of GENERAL MOTORS CORP.
  4. Remove the intake manifold gaskets.

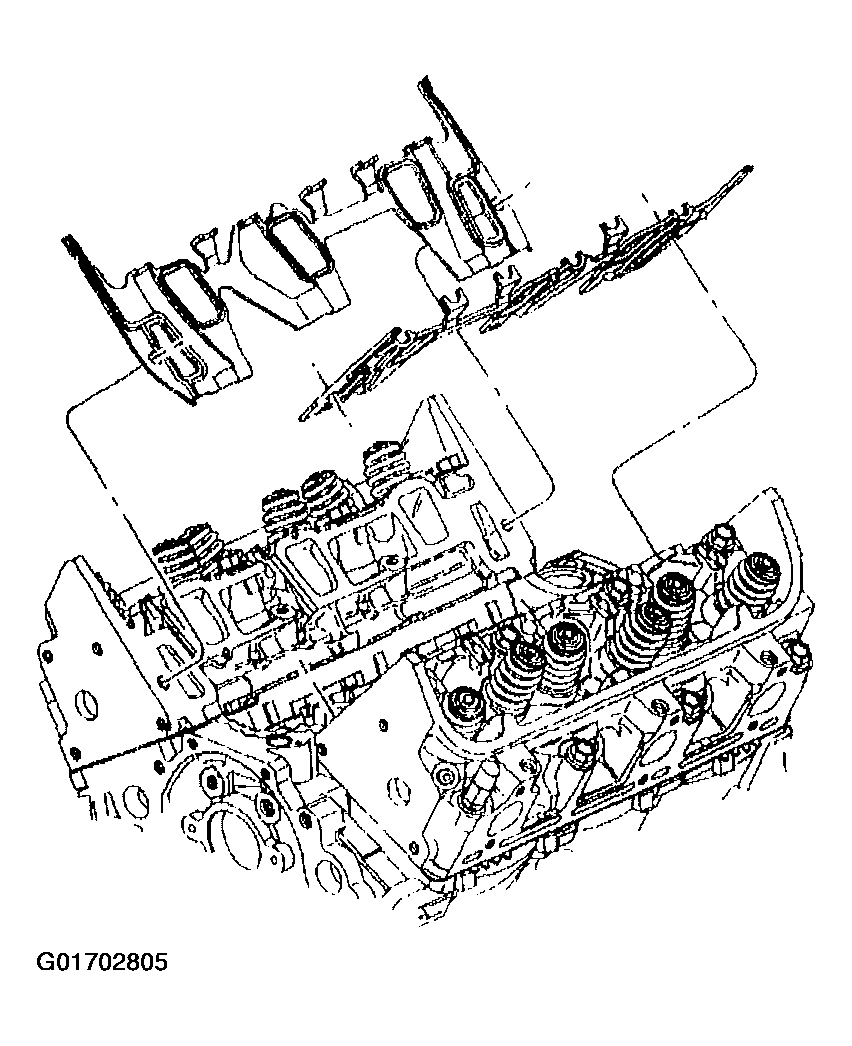

    Fig 3: Intake Manifold Gaskets
    G01702805Courtesy of GENERAL MOTORS CORP.
