Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover and gasket.

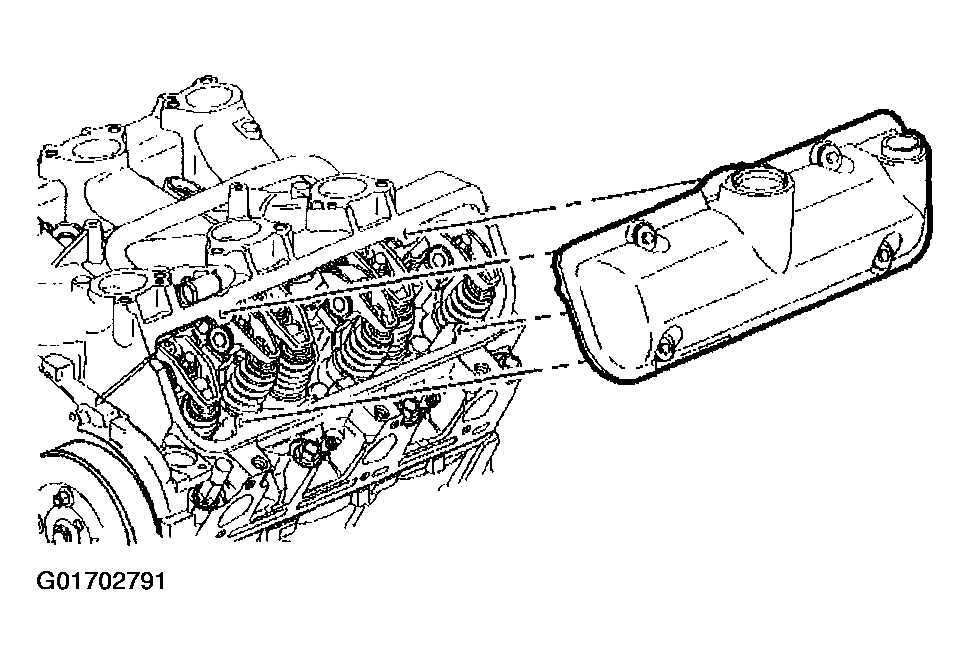

    Fig 1: Left Valve Rocker Arm Cover
    G01702791Courtesy of GENERAL MOTORS CORP.
