Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

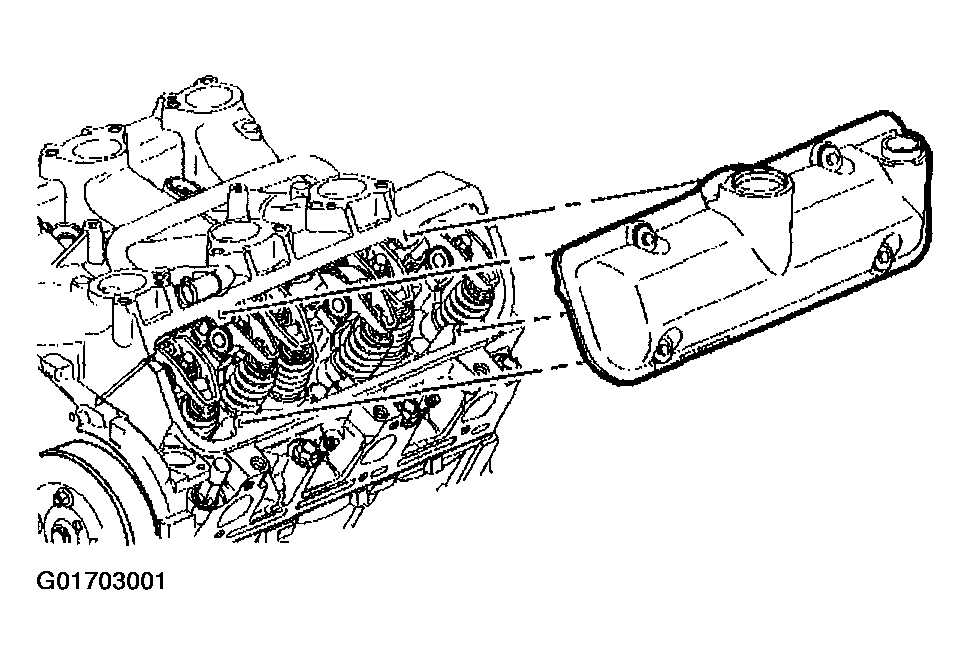

    Fig 1: Left Valve Rocker Arm Cover
    G01703001Courtesy of GENERAL MOTORS CORP.
