Valve Lifter Removal
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

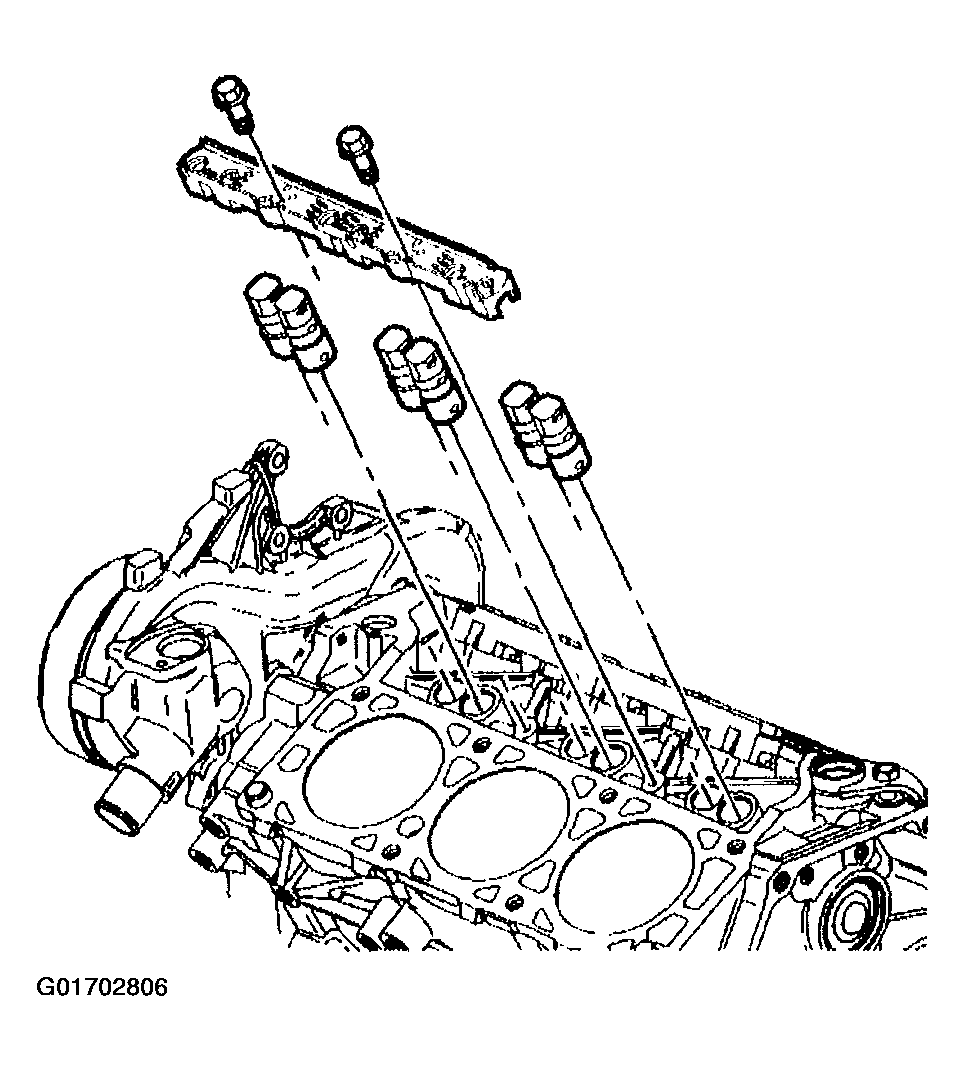

- Remove the valve lifter guide bolts.
- Remove the valve lifter guides.
IMPORTANT:
Once removed, place the valve lifters in an organized order so the valve lifters can be installed into the original locations.
- Remove the valve lifters.
Courtesy of GENERAL MOTORS CORP.
