Oil Pump Removal
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

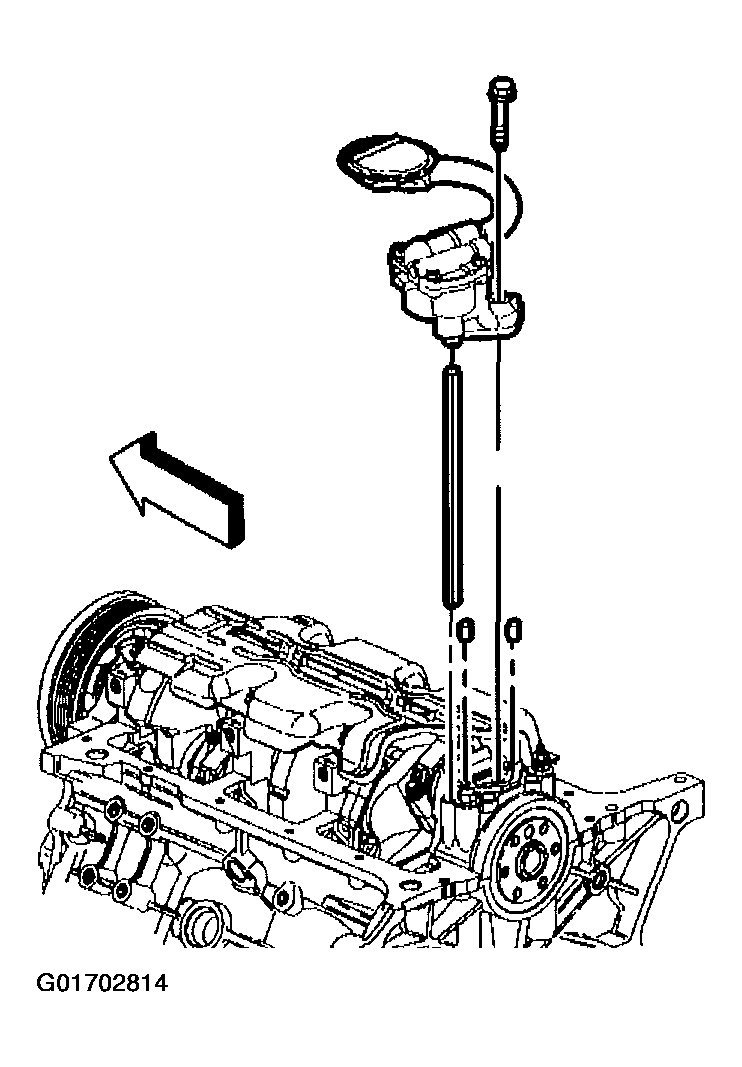

- Remove the oil pump bolt.
- Remove the oil pump and oil pump drive shaft.
Courtesy of GENERAL MOTORS CORP.

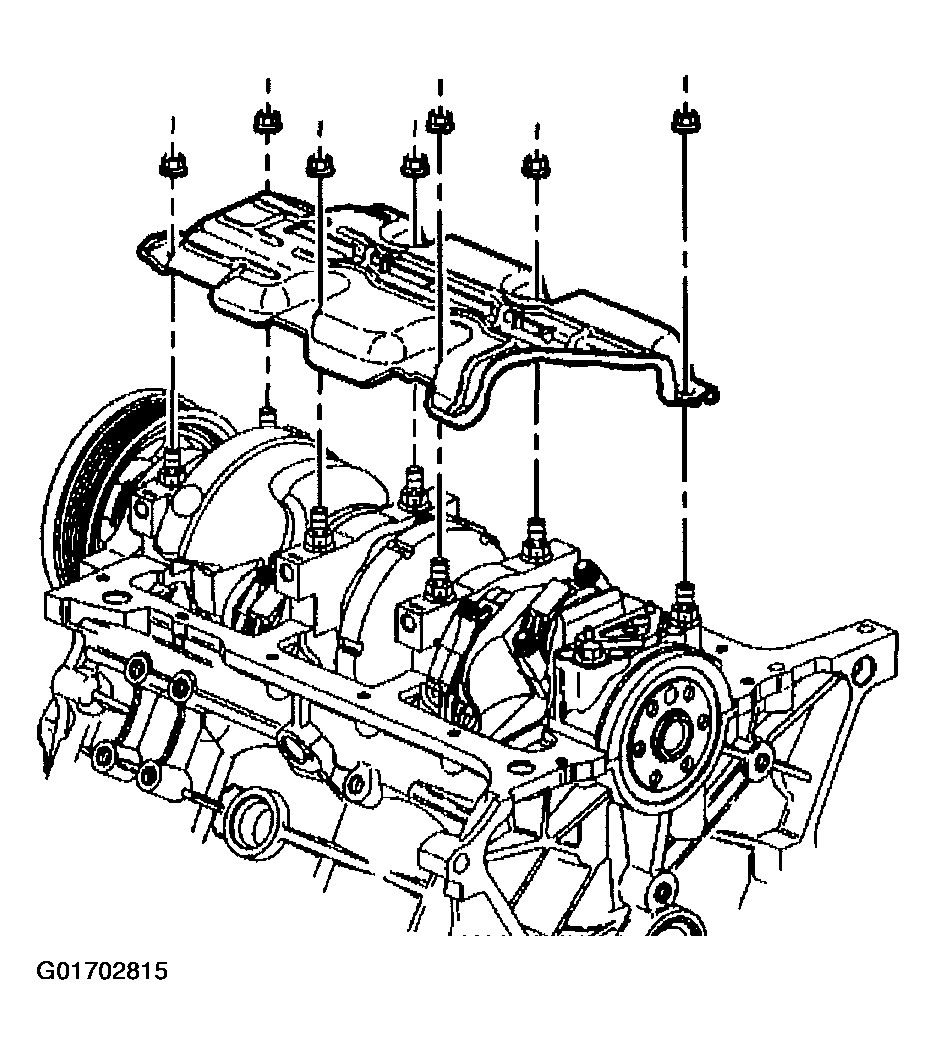

- Remove the crankshaft oil deflector nuts.
- Remove the crankshaft oil deflector.
Courtesy of GENERAL MOTORS CORP.
