Oil Pan Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level pressure sensor and sensor bolt.
  2. Remove the oil pan side bolts.
  3. Remove the oil pan bolts.
  4. Remove the oil pan.
  5. Remove the oil pan gasket.

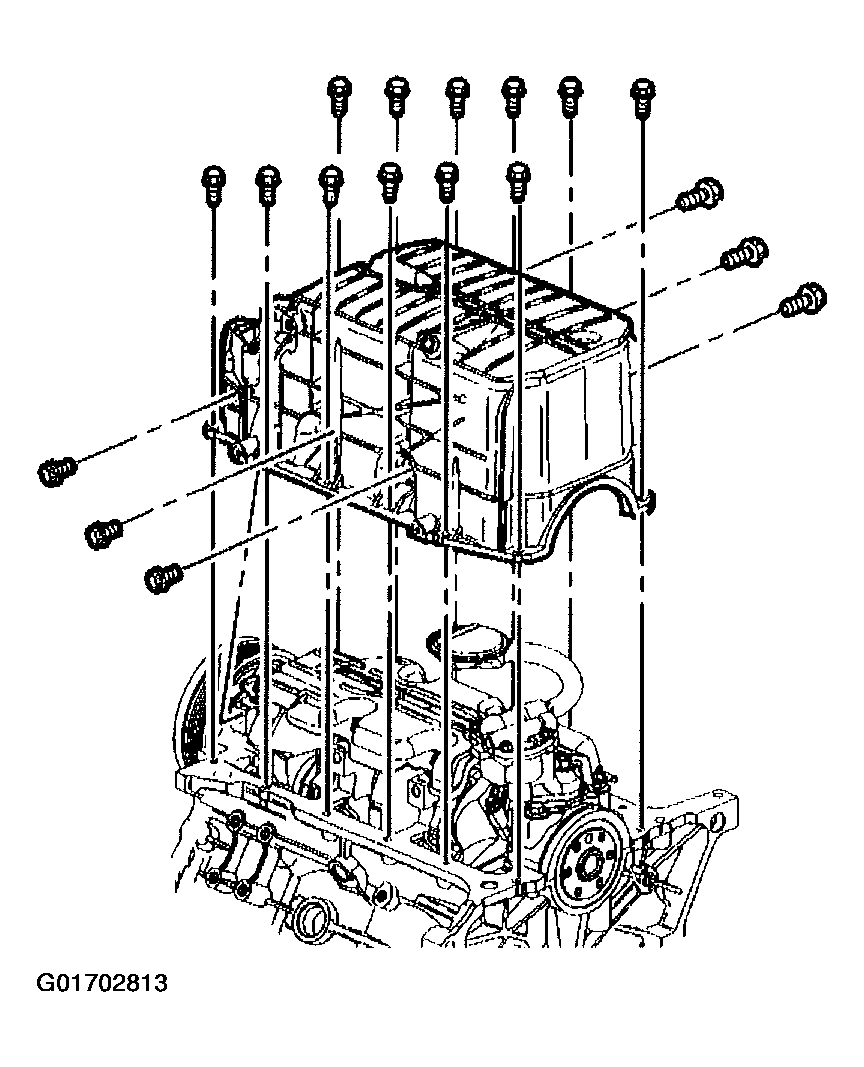

    Fig 1: Oil Pan
    G01702813Courtesy of GENERAL MOTORS CORP.
