Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil level indicator and oil level indicator tube.
NOTE: Refer to FASTENER NOTICE .
Install the oil level indicator tube bolt.
Tighten

Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

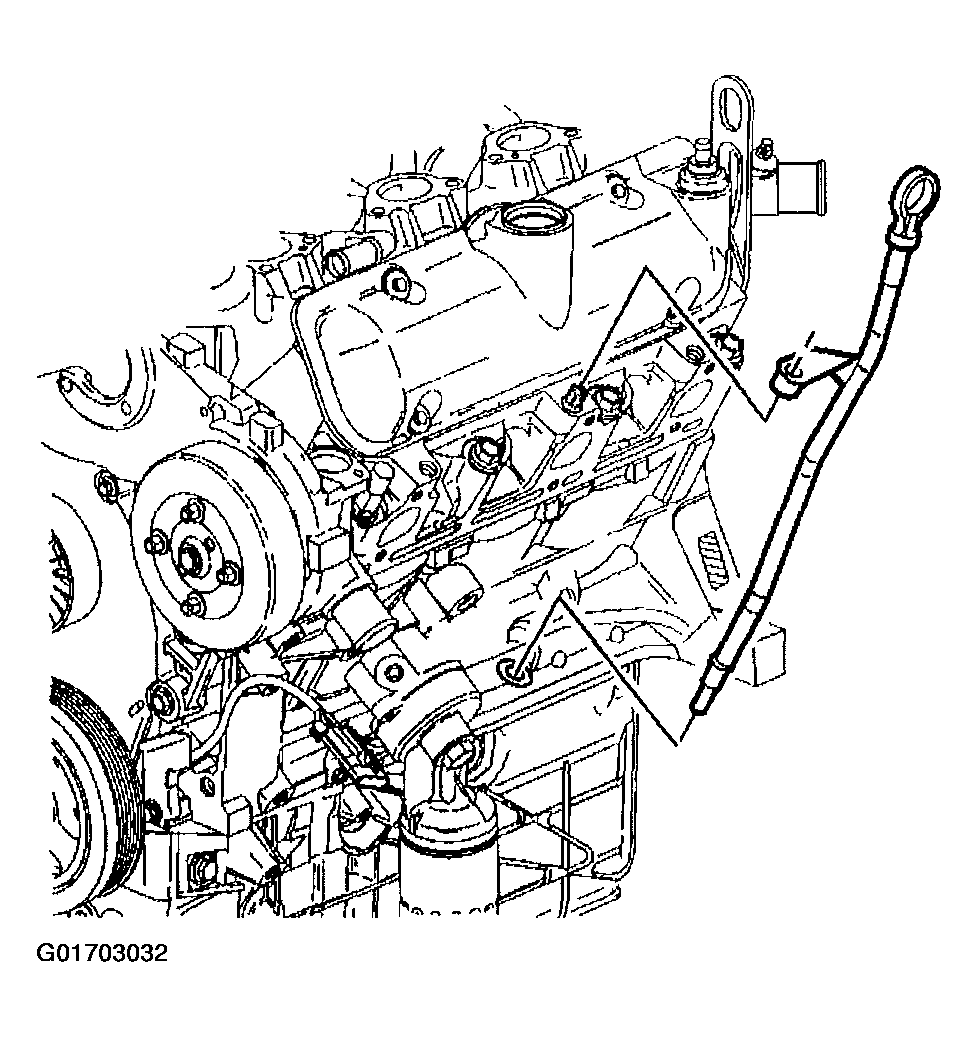

Fig 1: Oil Level Indicator Tube
Courtesy of GENERAL MOTORS CORP.
Install the thermostat bypass pipe.
Install the thermostat bypass pipe hose.

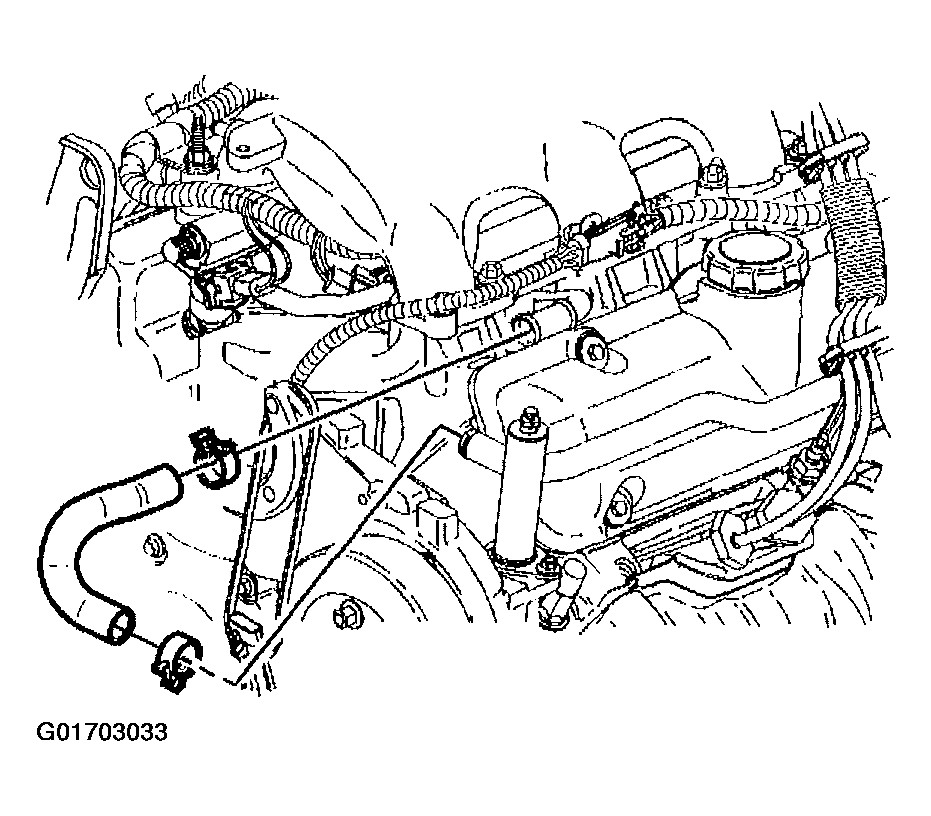

Fig 2: Thermostat Bypass Pipe Hose
Courtesy of GENERAL MOTORS CORP.
Install the thermostat bypass pipe hose clamps (5).
Install the thermostat bypass pipe to engine front cover bolt (4).
Tighten

Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 lb in).

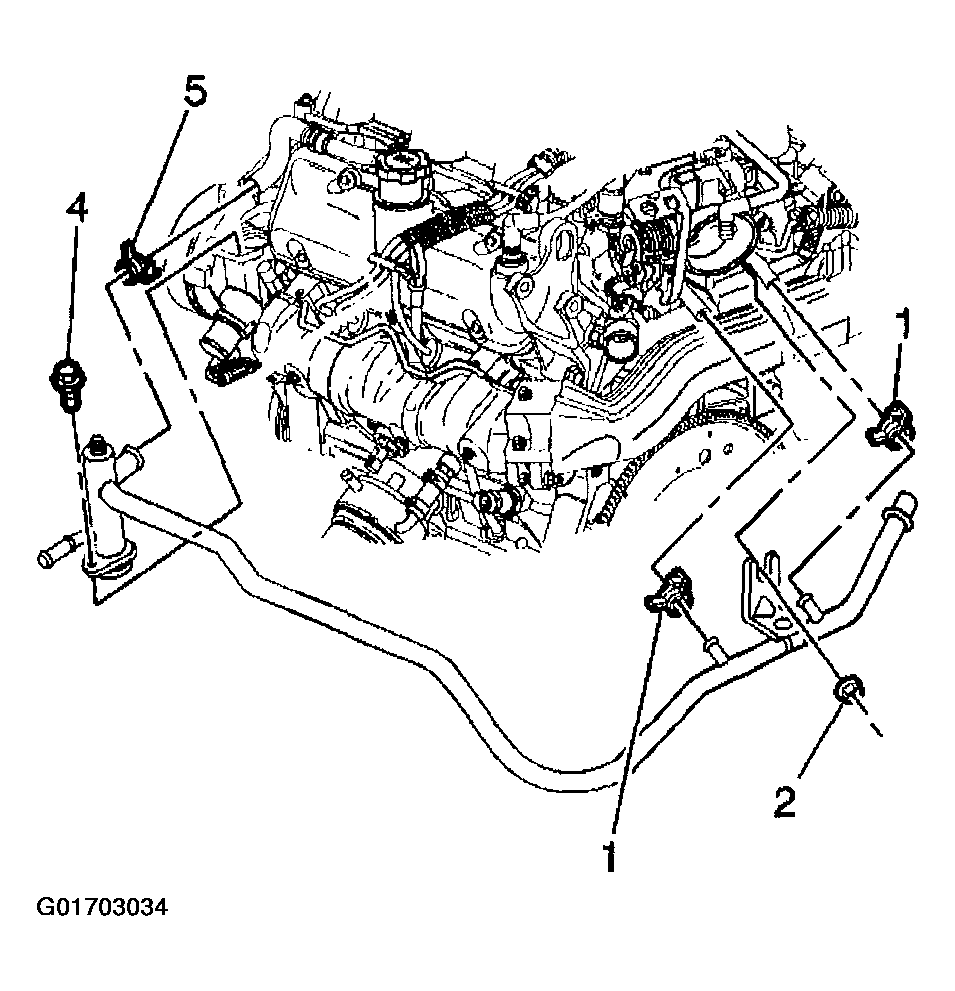

Fig 3: Thermostat Bypass Pipe
Courtesy of GENERAL MOTORS CORP.
Install the thermostat bypass pipe to throttle body hose clamps.
Install the thermostat bypass pipe to throttle body nut.
Tighten

Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 lb ft).

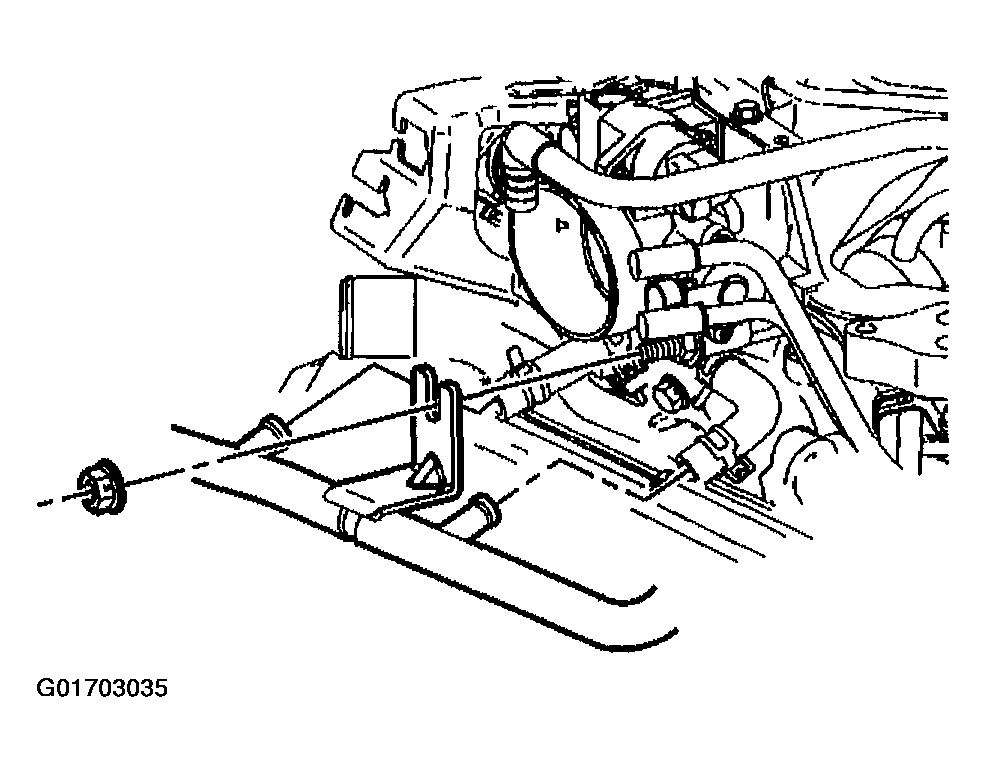

Fig 4: Thermostat Bypass Pipe-To-Throttle Body Nut
Courtesy of GENERAL MOTORS CORP.
