Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield bolts.
  2. Remove the exhaust manifold heat shield.

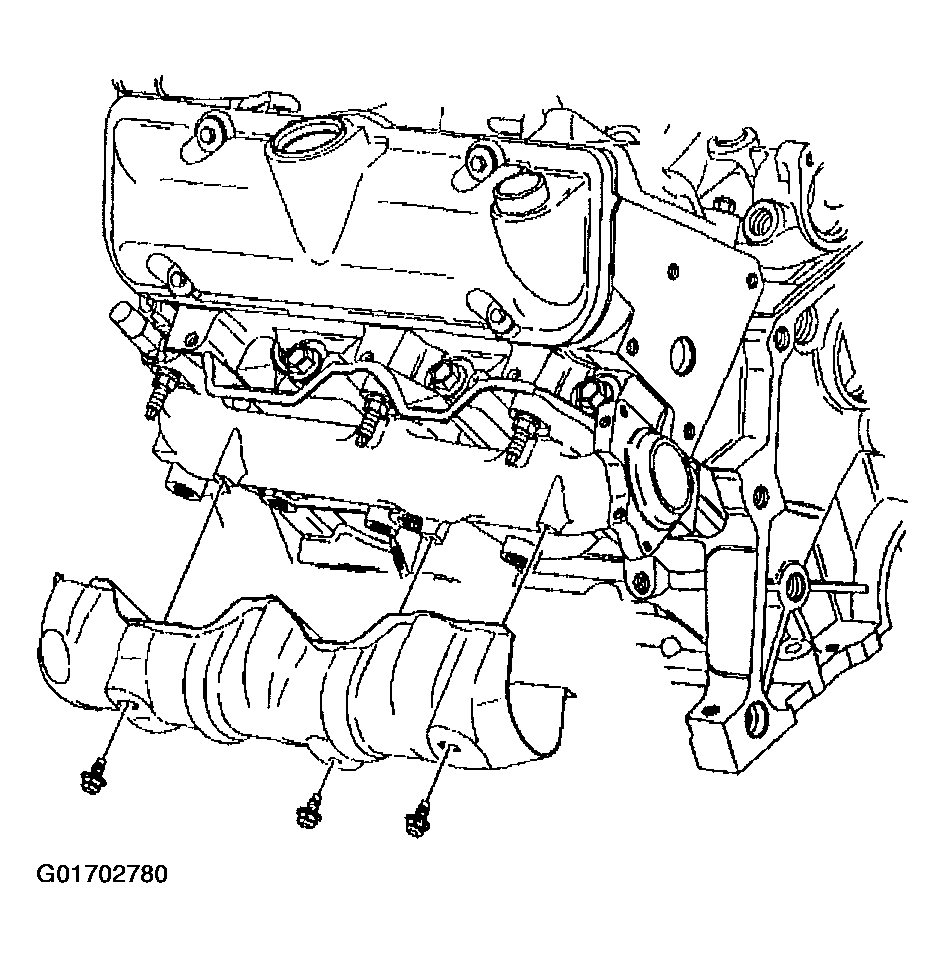

    Fig 1: Left Exhaust Manifold Heat Shield
    G01702780Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold nuts.
  4. Remove the exhaust manifold.
  5. Remove the exhaust manifold gasket.
  6. Remove the exhaust studs, if required.

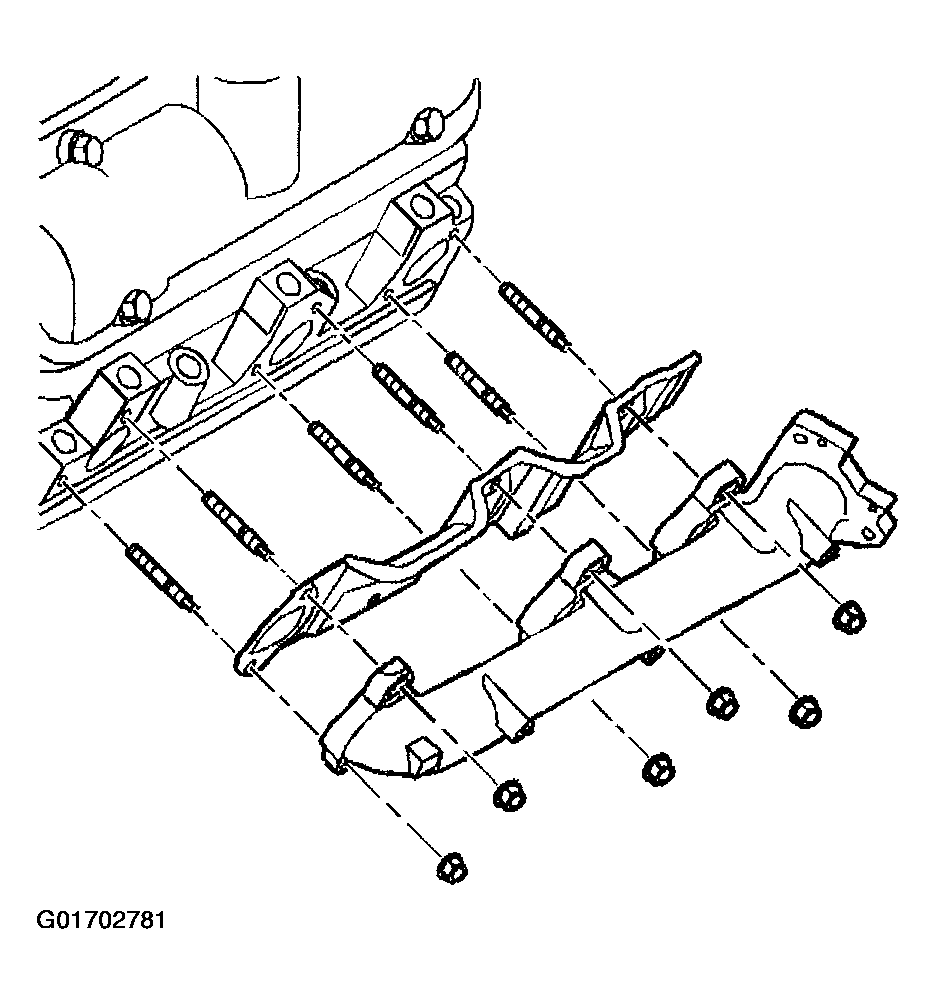

    Fig 2: Left Exhaust Manifold
    G01702781Courtesy of GENERAL MOTORS CORP.
