Engine Mount Support and Strut Bracket Installation (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount support.
NOTE: Refer to FASTENER NOTICE .
Install the engine mount support bolts.
Tighten
1. 2.1. Tighten the engine mount support bolt (1) to 55 N.m (41 lb ft).
2. 2.2. Tighten the engine mount support bolts (2) to 27 N.m (20 lb ft).
3. 2.3. Tighten the engine mount support bolt (3) to 55 N.m (41 lb ft).

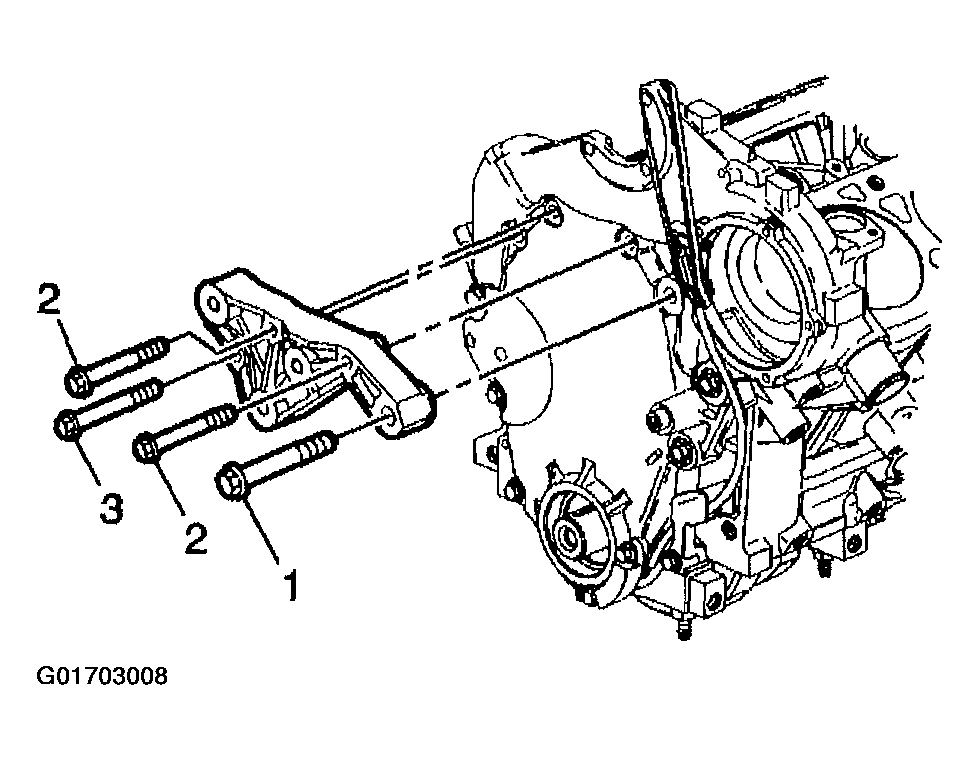

  Fig 1: Engine Mount Support & Bolts
  Courtesy of GENERAL MOTORS CORP.
