Engine Lift Bracket and Generator Bracket Removal (W Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-4).
  2. Remove the generator bracket.
  3. Remove the front engine lift bracket.

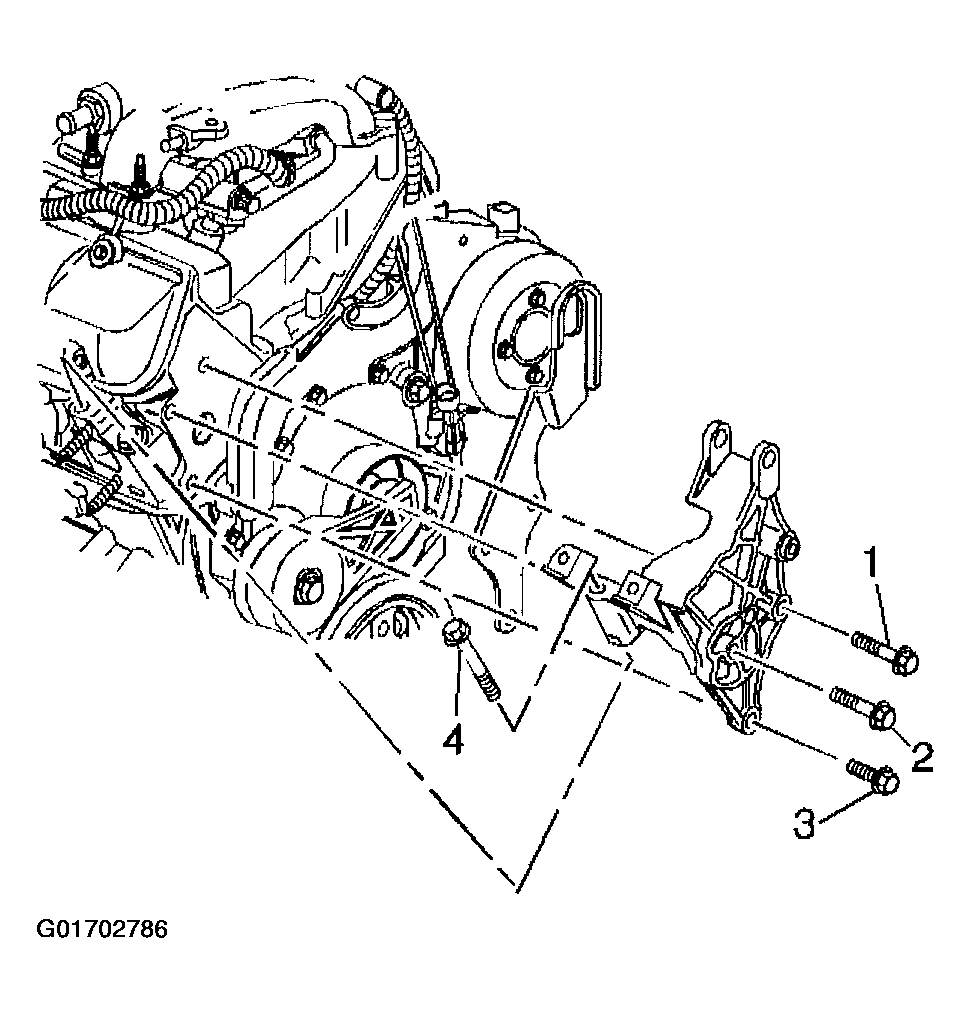

    Fig 1: Generator Bracket & Bolts (W Car)
    G01702786Courtesy of GENERAL MOTORS CORP.
