Engine Lift Bracket and Generator Bracket Removal (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-3).
  2. Remove the generator bracket.
  3. Remove the front engine lift hook.

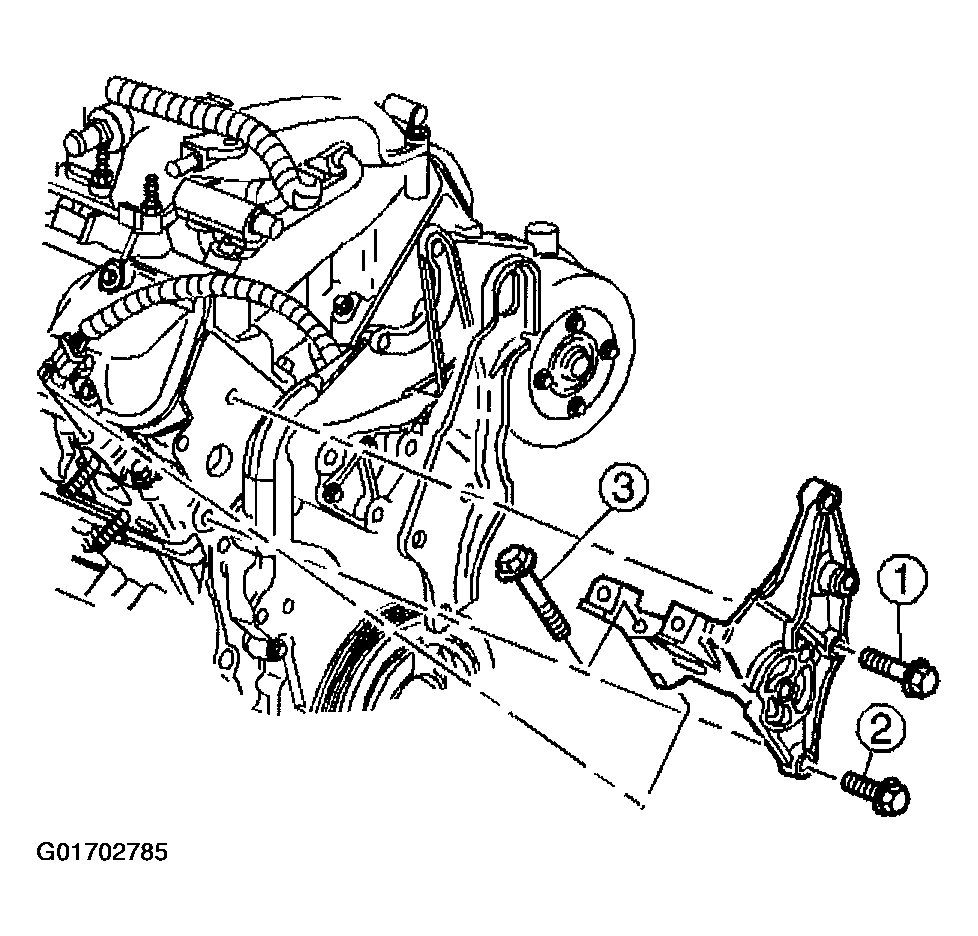

    Fig 1: Generator Bracket & Bolts (N Car)
    G01702785Courtesy of GENERAL MOTORS CORP.
