Engine Lift Bracket and Generator Bracket Installation (W Car)
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front engine lift hook.
- Install the generator bracket.NOTE: Refer to FASTENER NOTICE .
- Install the generator bracket bolts.
Tighten

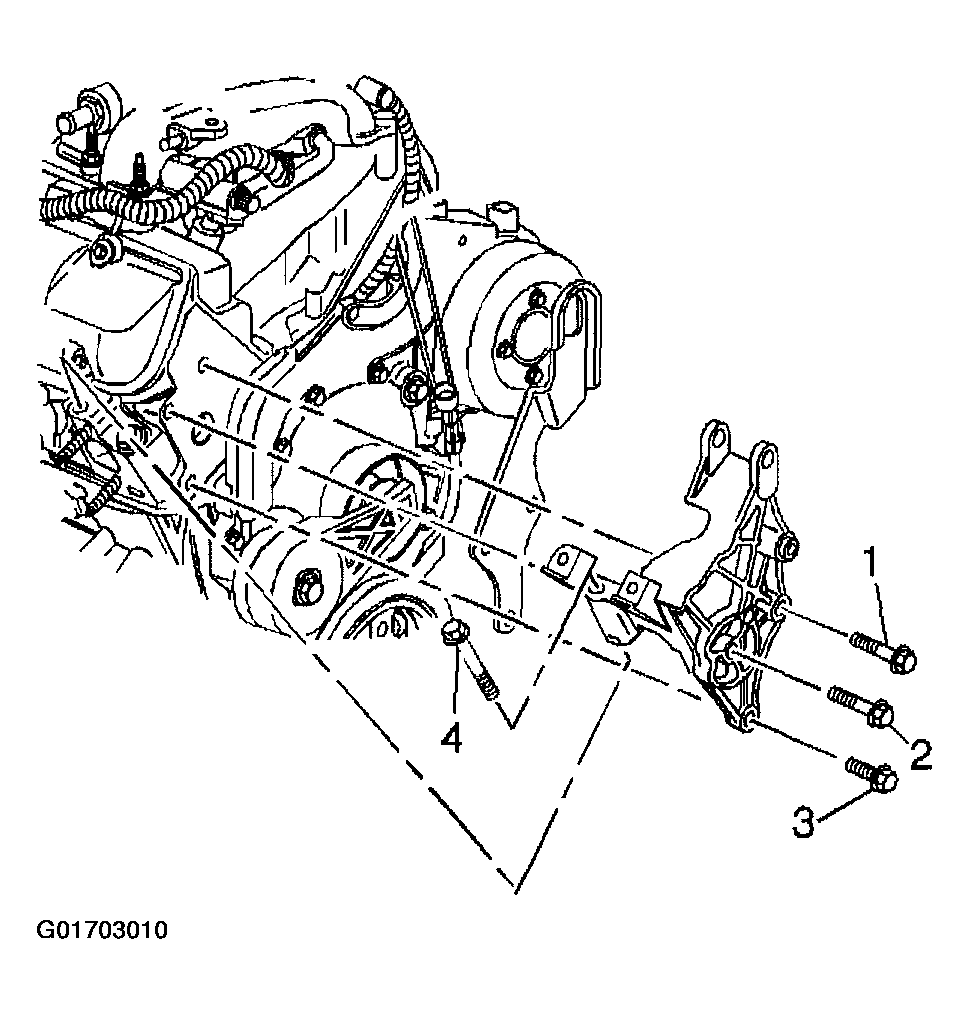

Tighten the generator bracket bolts in sequence (1, 2, 3, 4) to 50 N.m (37 lb ft).
