Engine Lift Bracket and Generator Bracket Installation (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the front engine lift hook.
Install the generator bracket.
NOTE: Refer to FASTENER NOTICE .
Install the generator bracket bolts.
Tighten

Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 lb ft).

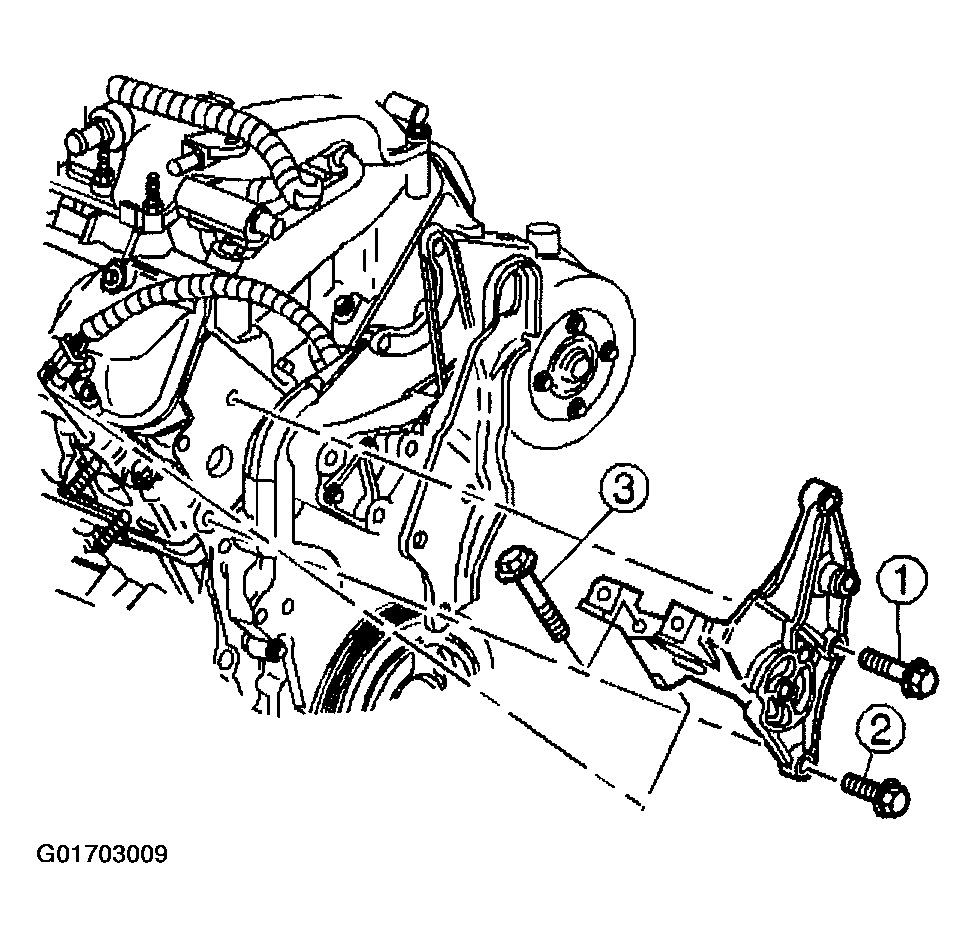

Fig 1: Generator Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
