Engine Front Cover Removal (W Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolts (1, 2, 3).
  2. Remove the engine front cover.
  3. Remove the engine front cover gasket.

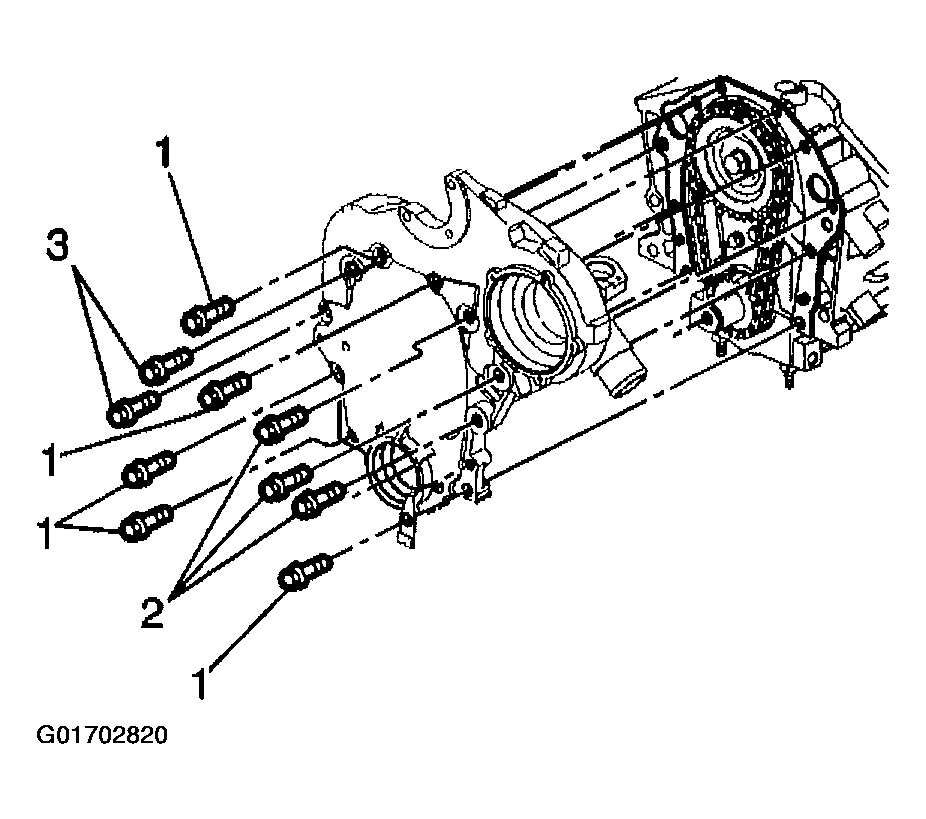

    Fig 1: Engine Front Cover (W Car)
    G01702820Courtesy of GENERAL MOTORS CORP.
