Engine Front Cover Installation (W Car)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine front cover gasket.
Apply sealer GM P/N United States 12346004, GM P/N Canada 10953480 or equivalent to both sides of the lower tabs of the engine front cover gasket.

Fig 1: Apply Sealer To Lower Tabs Of Engine Front Cover Gasket
Courtesy of GENERAL MOTORS CORP.
Install the engine front cover.
NOTE: Refer to FASTENER NOTICE .
Install the engine front cover bolts (3).
Tighten

Tighten the engine front cover bolts (3) to 55 N.m (41 lb ft).
Install the engine front cover bolts (1).
Tighten

Tighten the engine front cover bolts (1) to 55 N.m (41 lb ft).
Install the engine front cover bolts (2).
Tighten

Tighten the engine front cover bolts (2) to 27 N.m (20 lb ft).

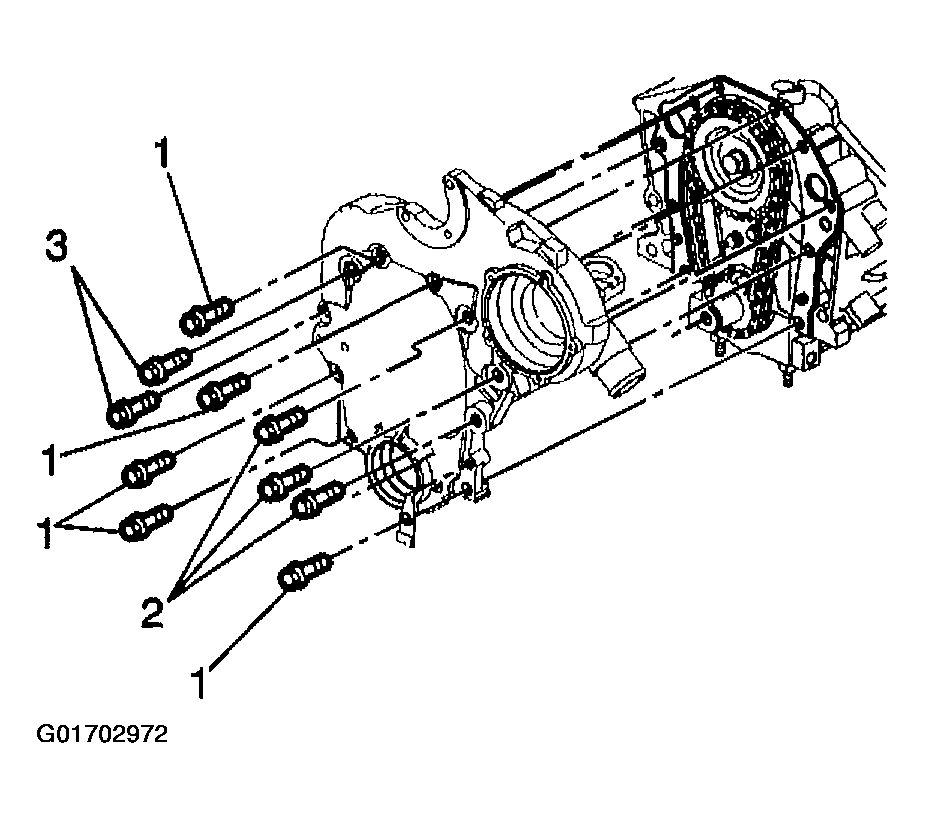

Fig 2: Engine Front Cover & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the crankshaft position sensor wiring bracket.
Install the crankshaft position sensor wiring bracket bolt.
Tighten

Tighten the crankshaft position sensor wiring bracket bolt to 40 N.m (30 lb ft).

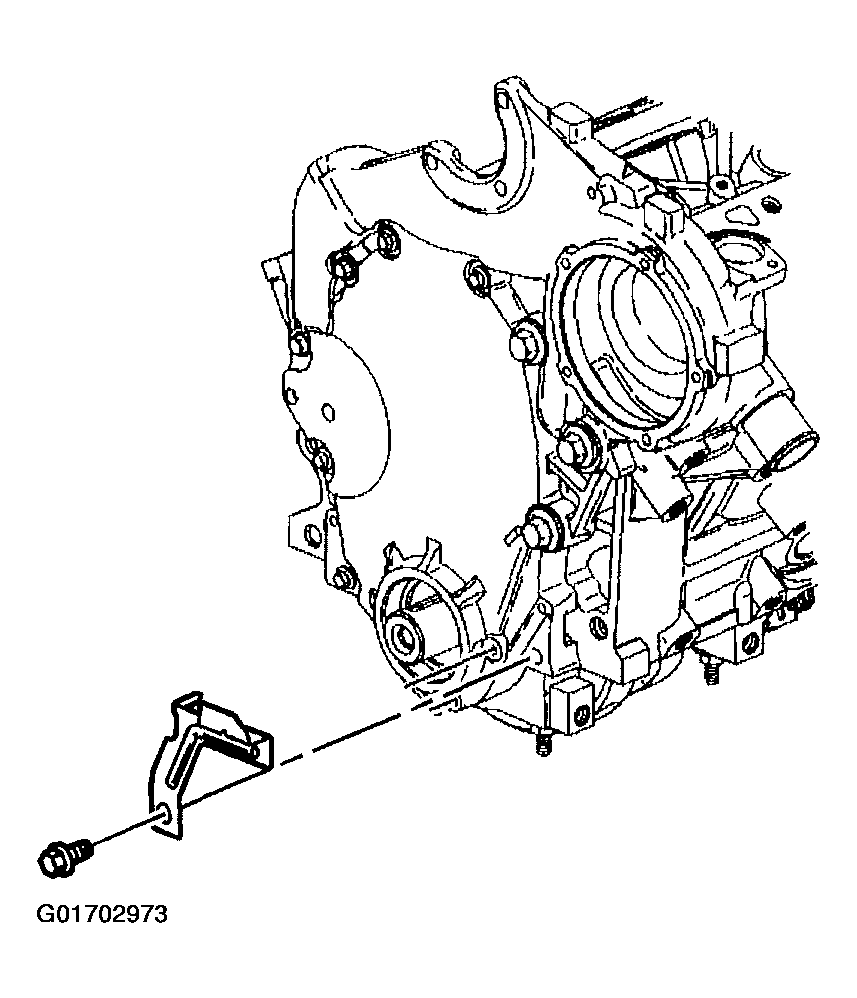

Fig 3: Crankshaft Position Sensor Wiring Bracket
Courtesy of GENERAL MOTORS CORP.
