Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs.
  2. Remove and discard the cylinder head bolts.
  3. Remove the cylinder head.

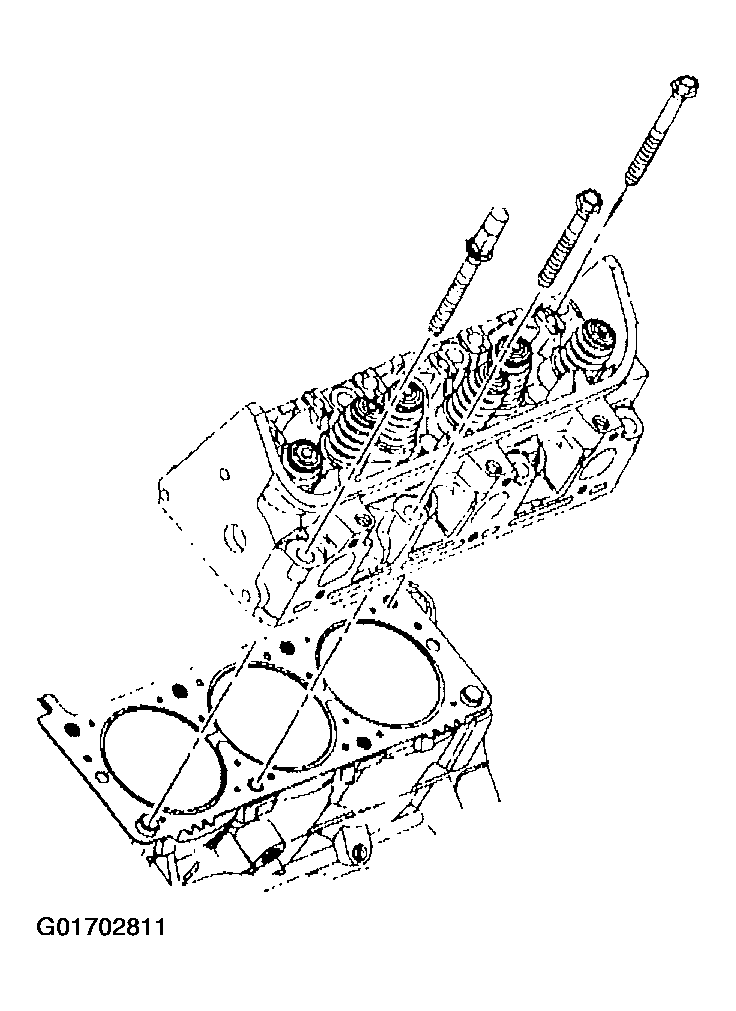

    Fig 1: Right Cylinder Head
    G01702811Courtesy of GENERAL MOTORS CORP.
  4. Remove the cylinder head gasket.
  5. Remove the dowel pins - cylinder head locator, if required.

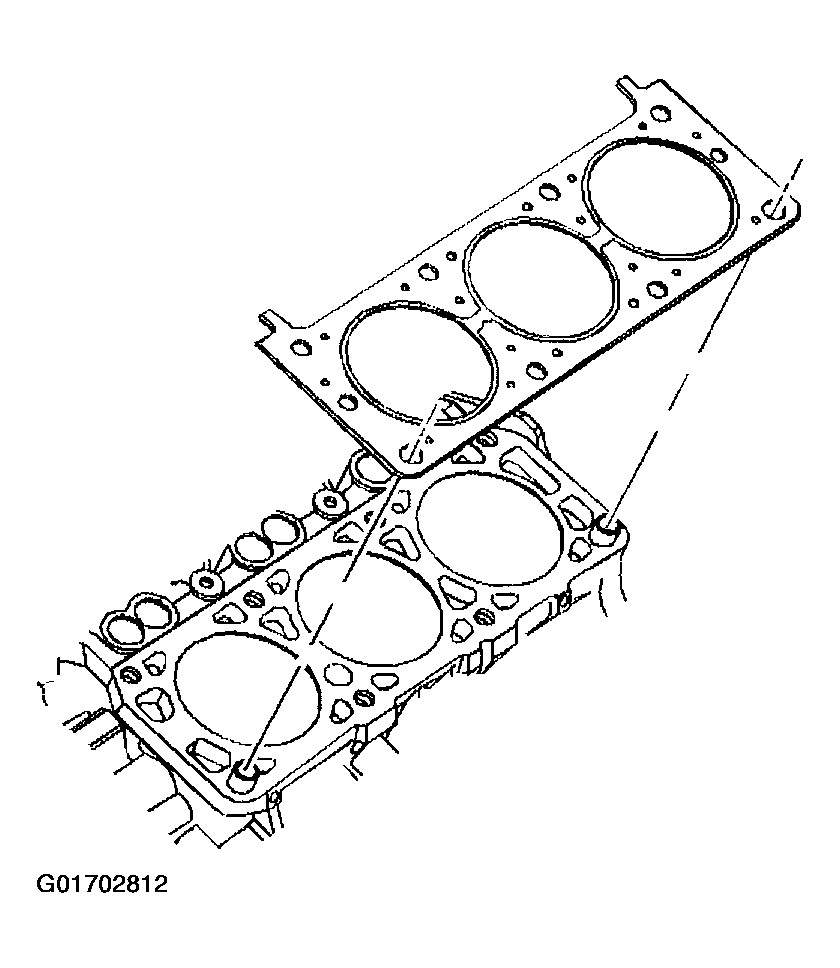

    Fig 2: Right Cylinder Head Gasket
    G01702812Courtesy of GENERAL MOTORS CORP.
