Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24420-C Crankshaft Balancer Puller

Remove the crankshaft balancer retaining bolt and washer.

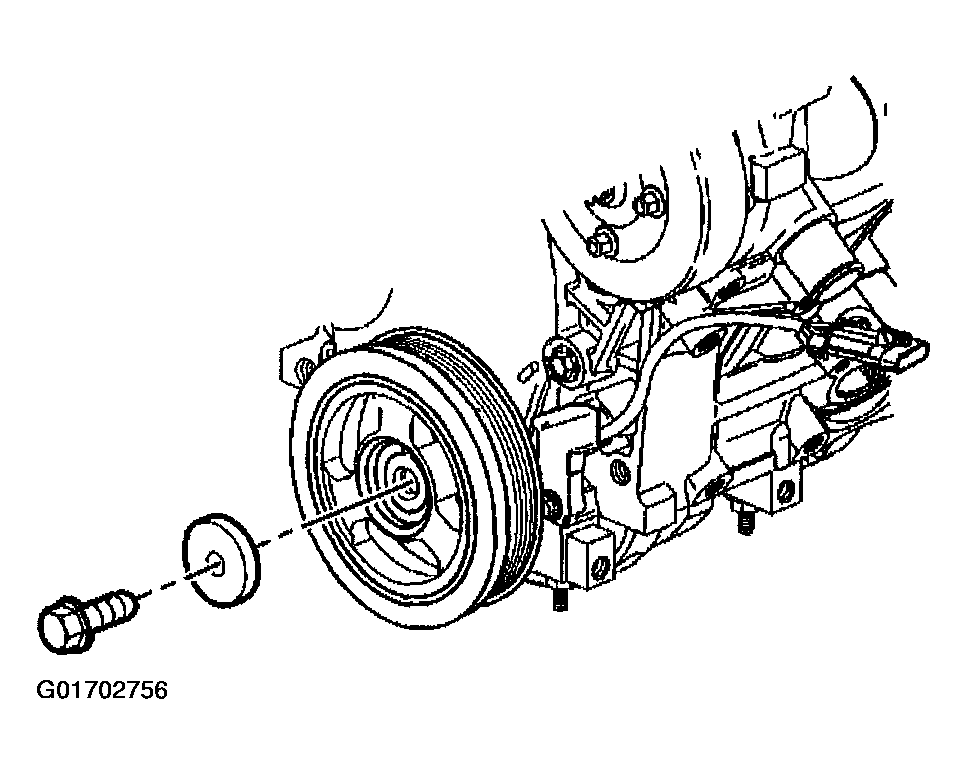

Fig 1: Crankshaft Balancer Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft balancer using the J 24420-C .

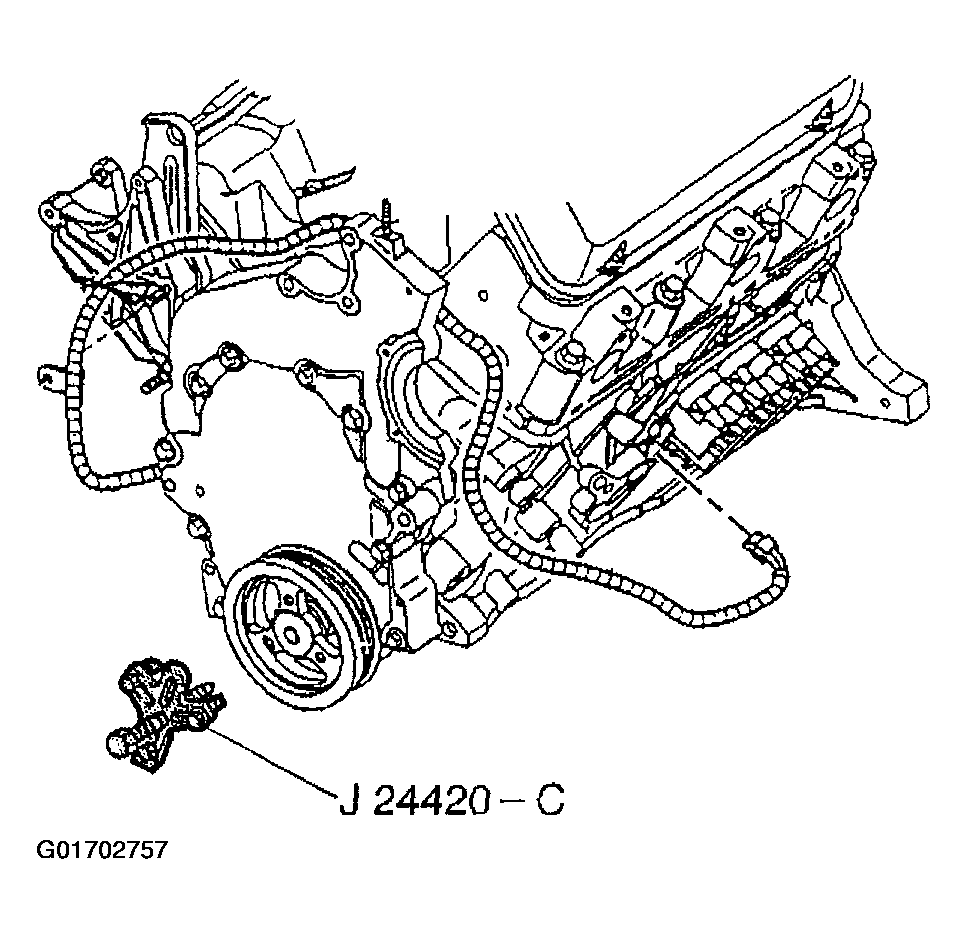

Fig 2: Removing The Crankshaft Balancer Using J 24420-C
Courtesy of GENERAL MOTORS CORP.
