Crankshaft Balancer Installation

Tools Required

• J 29113  Crankshaft Balancer Installer
• J 36660-A  Torque Angle Meter

1. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the keyway of the crankshaft balancer.
2. Place the crankshaft balancer into position over the key in the crankshaft.
3. Install the J 29113  onto the crankshaft.

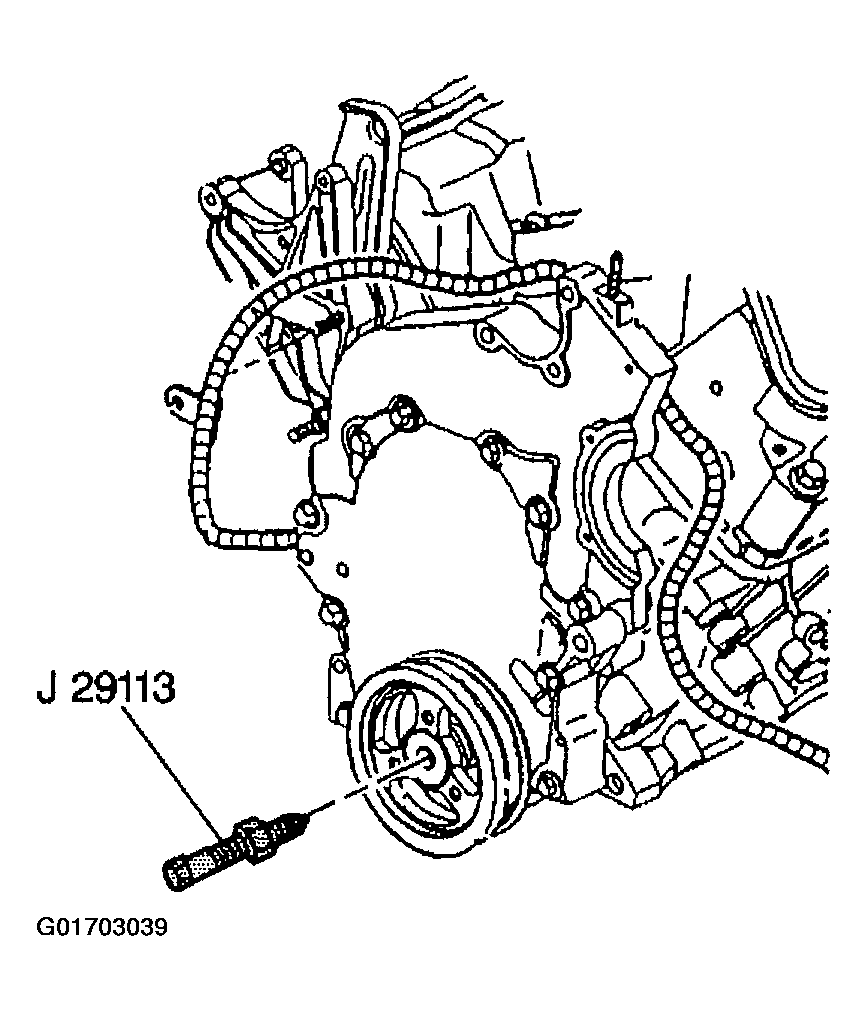

   Fig 1: Installing Crankshaft Balancer Using J 29113

   Courtesy of GENERAL MOTORS CORP.
4. Pull the crankshaft balancer into position.
5. Remove the J 29113  from the crankshaft balancer.
   NOTE: Refer to FASTENER NOTICE .
6. Install the crankshaft balancer washer and bolt.

   Tighten

   • Tighten the crankshaft balancer bolt a first pass to 70 N.m (52 lb ft).
   • Tighten the crankshaft balancer bolt a final pass to 85 degrees using the J 36660-A  .

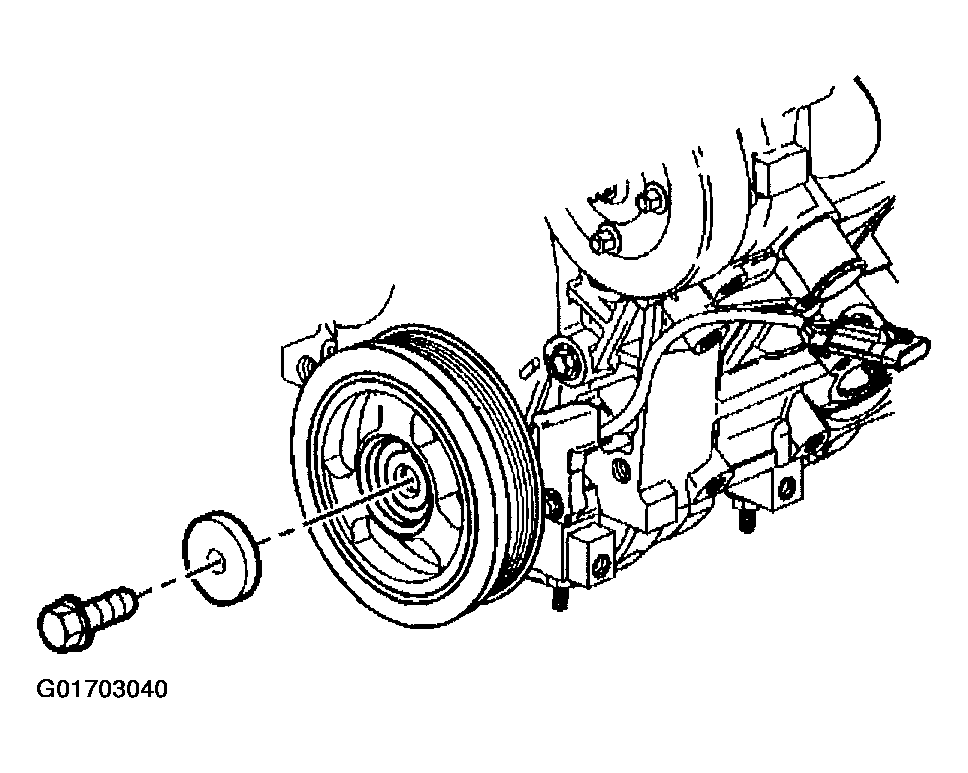

     Fig 2: Crankshaft Balancer Washer & Bolt

     Courtesy of GENERAL MOTORS CORP.
