Air Injection Check Valve Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove air injection vacuum hose.

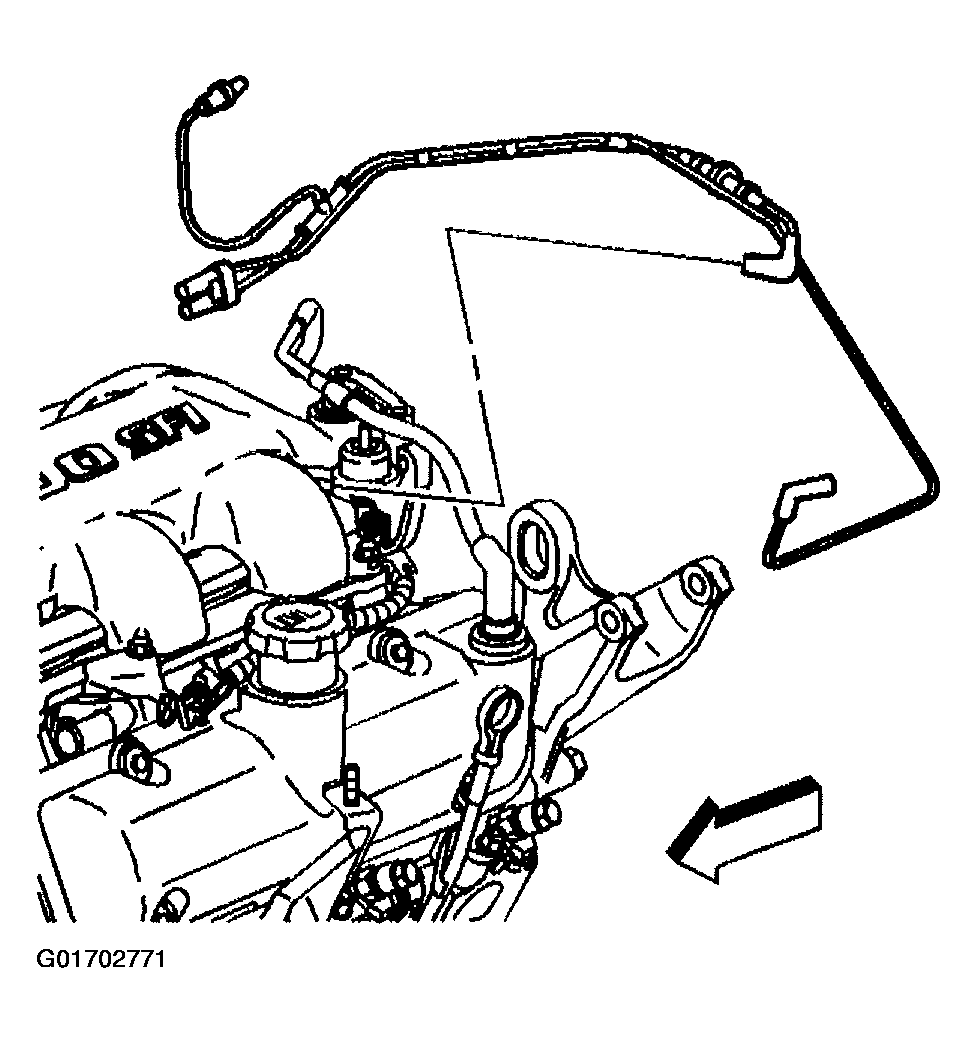

Fig 1: Air Injection Vacuum Hose
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe, clamps, and bolt.

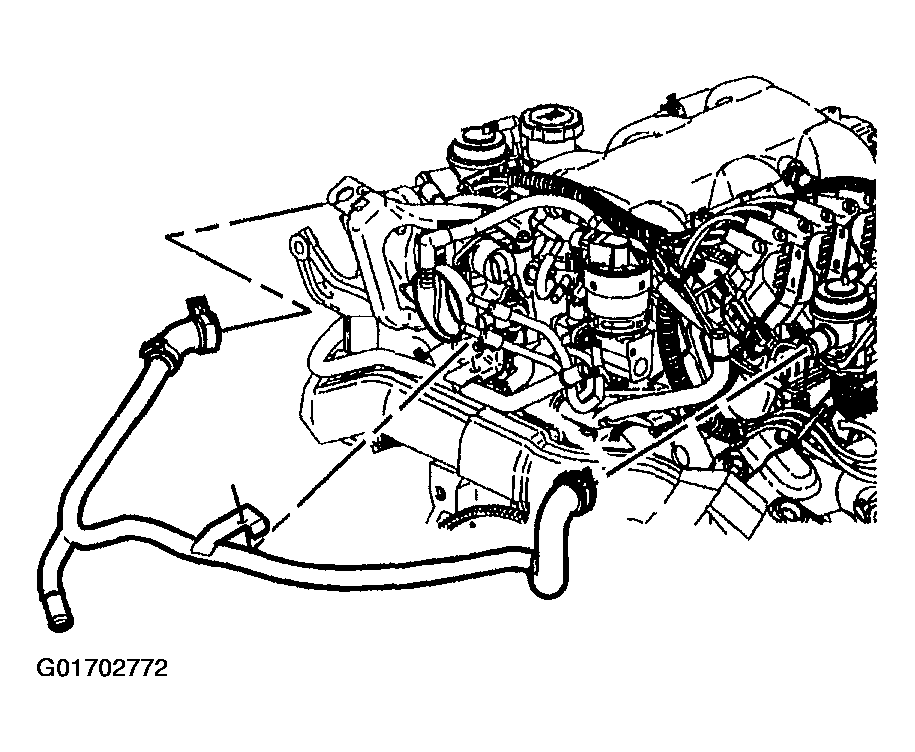

Fig 2: Air Injection Check Valve Pipe
Courtesy of GENERAL MOTORS CORP.
Remove air injection solenoid switch and bolt.

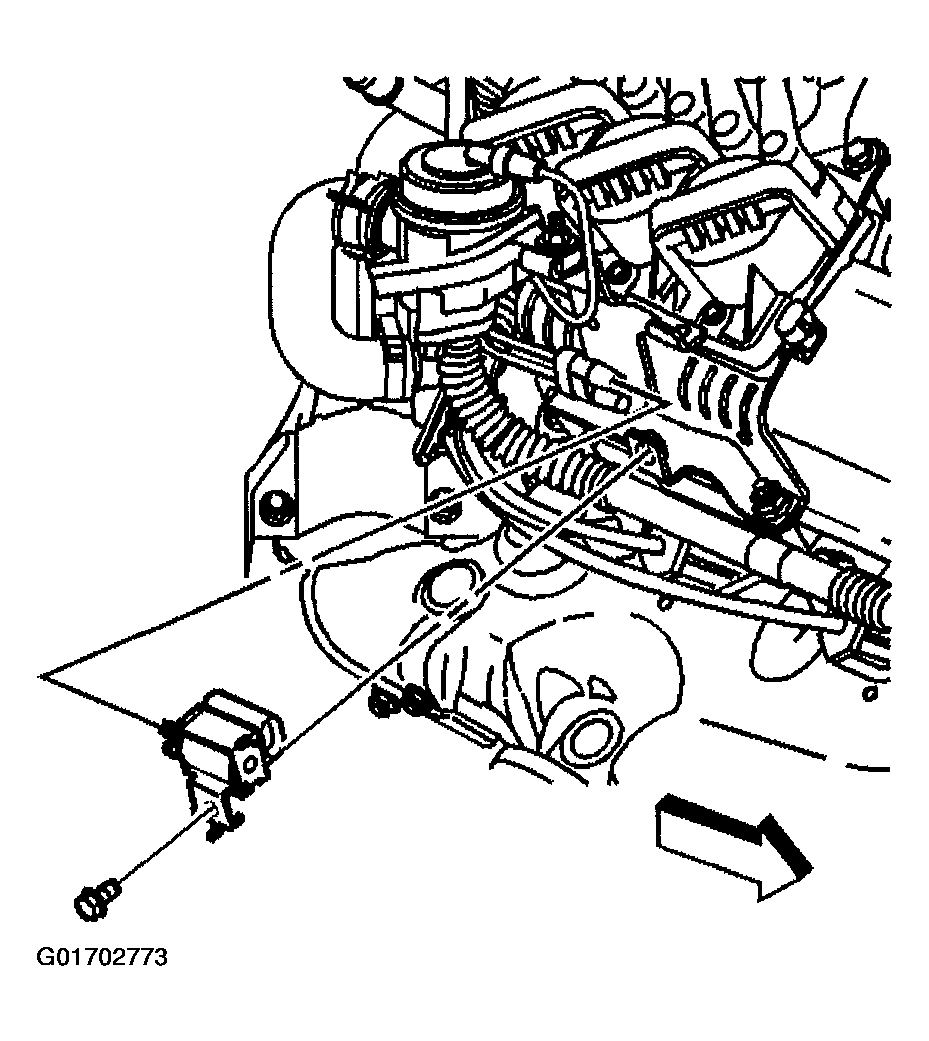

Fig 3: Air Injection Solenoid Switch
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve front nuts.

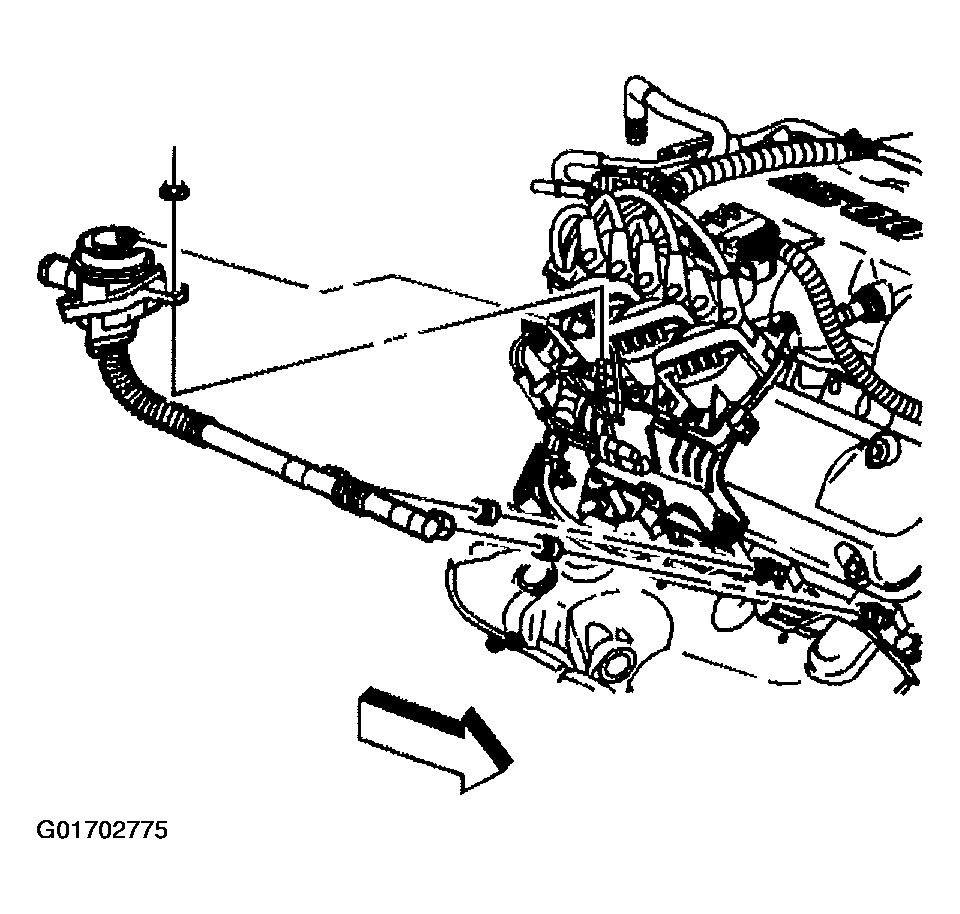

Fig 4: Air Injection Check Valve Front Nuts
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve rear nuts.

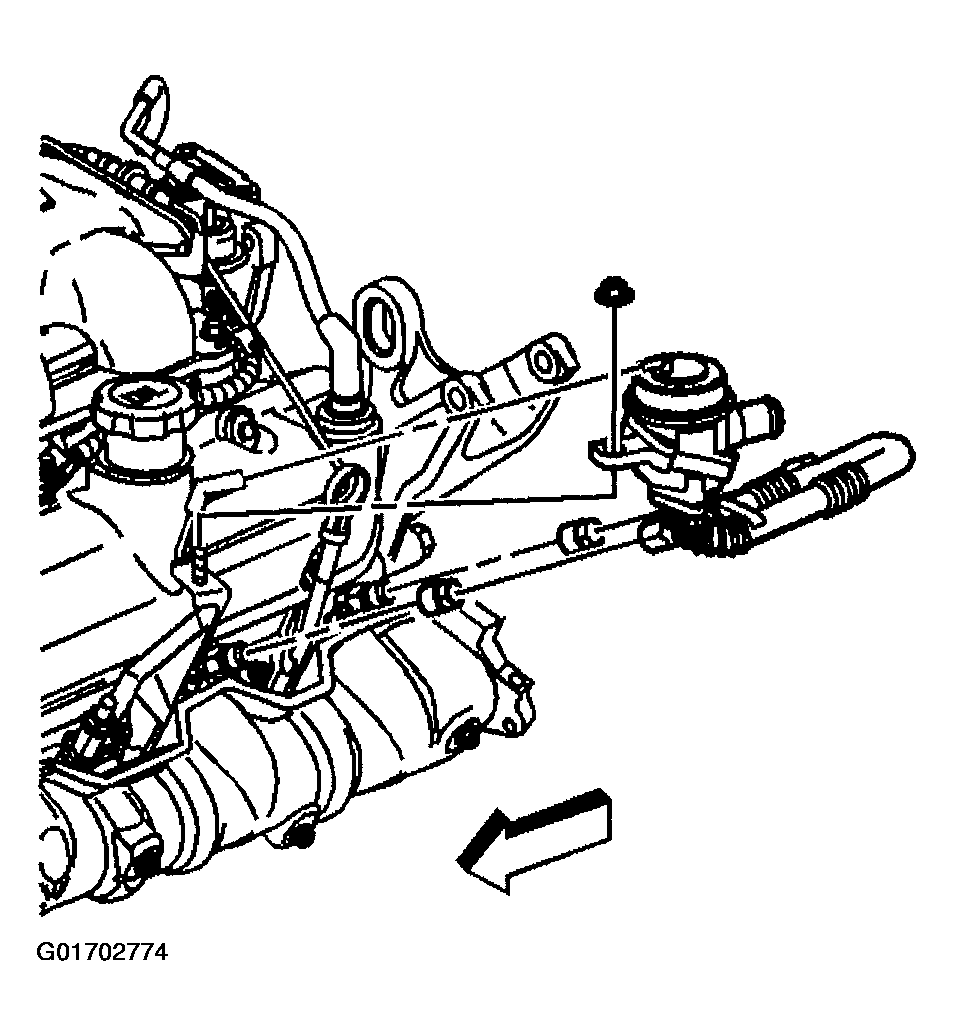

Fig 5: Air Injection Check Valve Rear Nuts
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve front bracket and bolt.

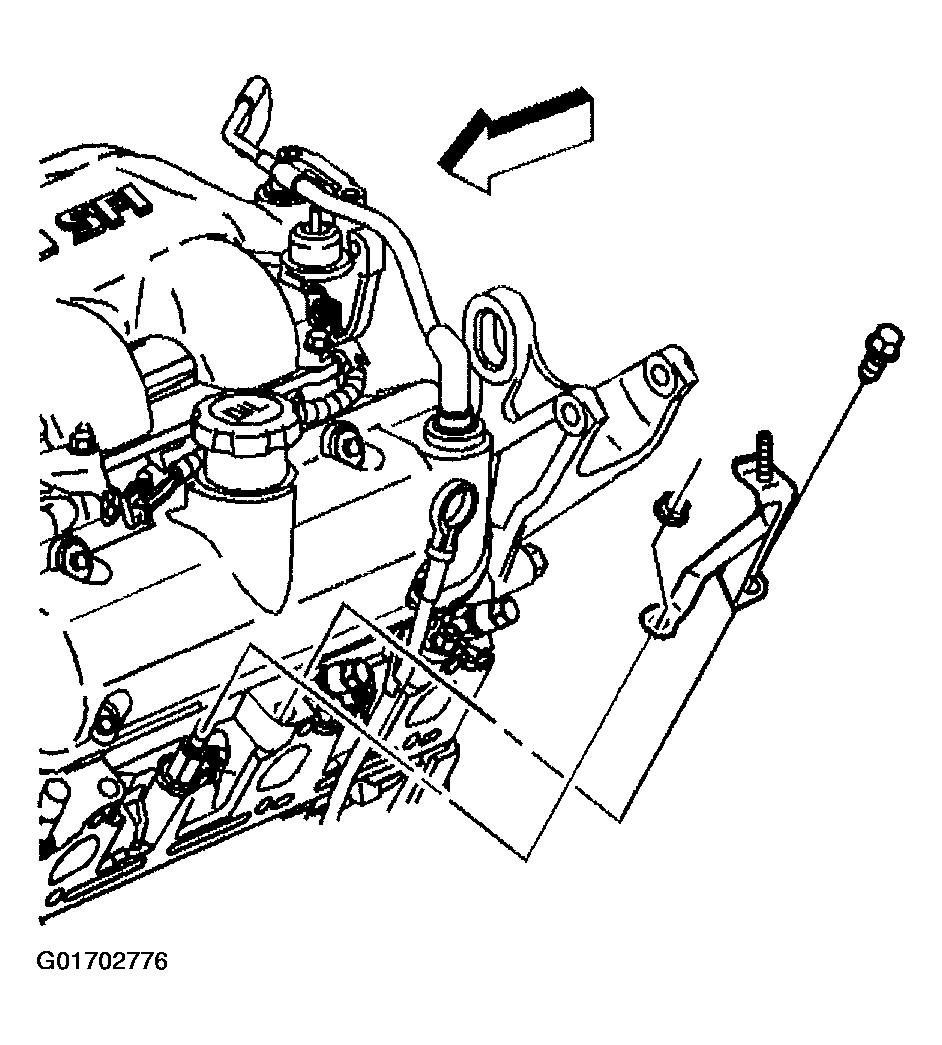

Fig 6: Air Injection Check Valve Front Bracket
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve rear bracket and nuts.

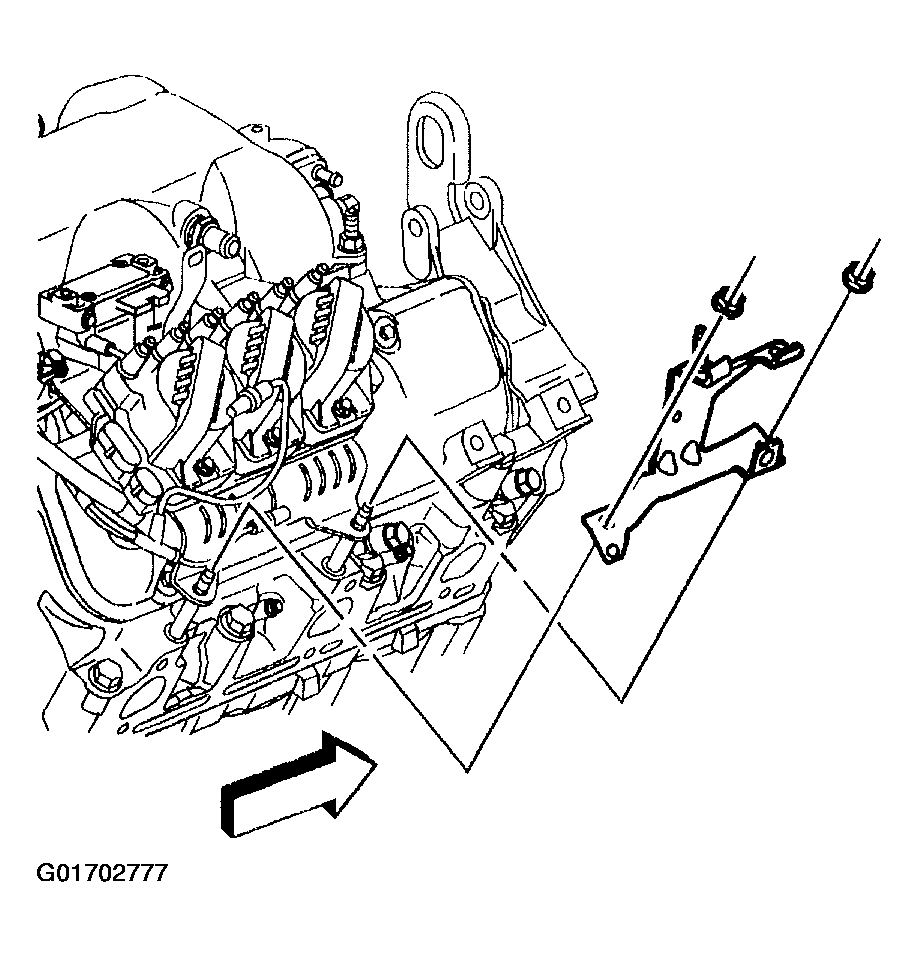

Fig 7: Air Injection Check Valve Rear Bracket
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe adapters, front.

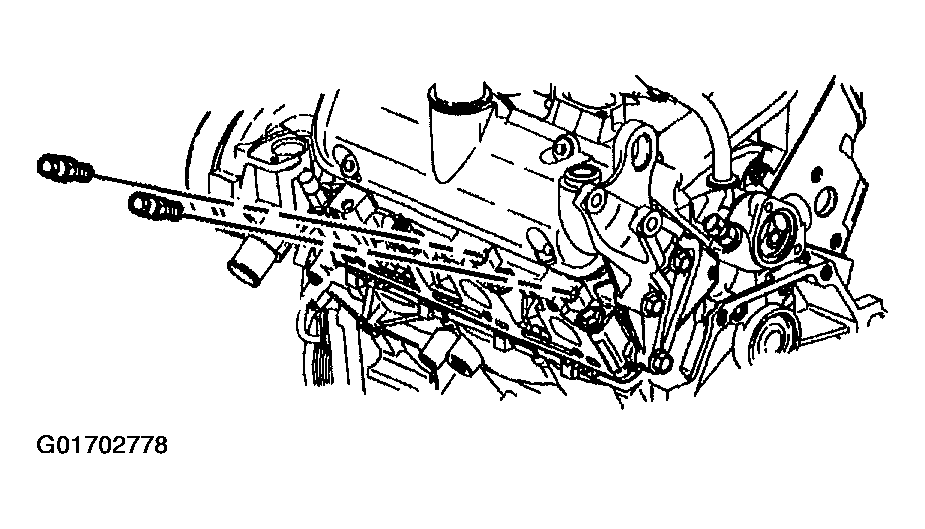

Fig 8: Air Injection Check Valve Pipe Front Adapters
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe adapters, rear.

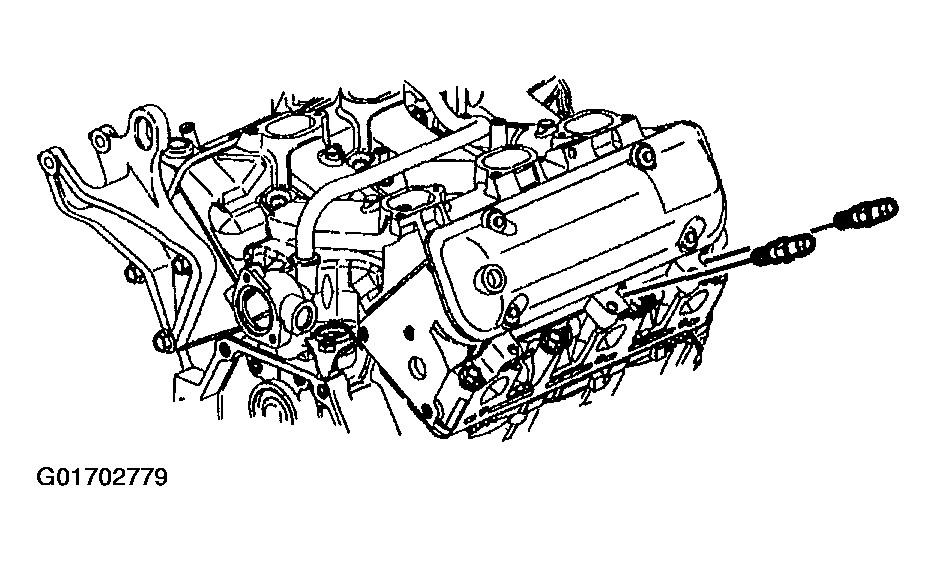

Fig 9: Air Injection Check Valve Pipe Rear Adapters
Courtesy of GENERAL MOTORS CORP.
