Transfer Case Control Component Views

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

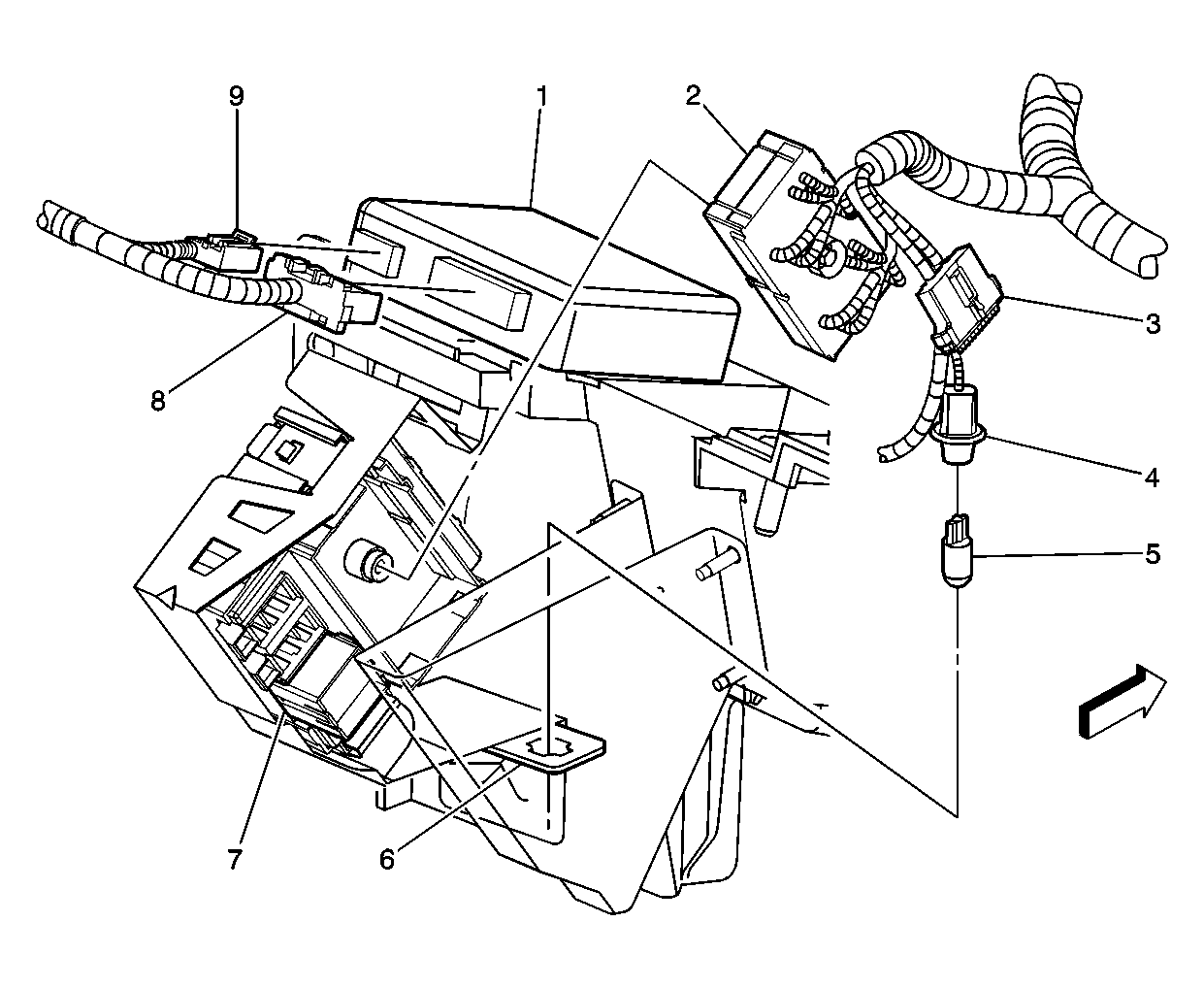

Fig 1: Behind the Lower Left of the I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Fuse Block Connector
3	Splice Pack 205 (SP205)
4	Courtesy Lamp Socket
5	Bulb
6	Courtesy Lamp IP Bracket
7	Fuse Block
8	Transfer Case Shift Control Connector - C1
9	Transfer Case Shift Control Connector - C2

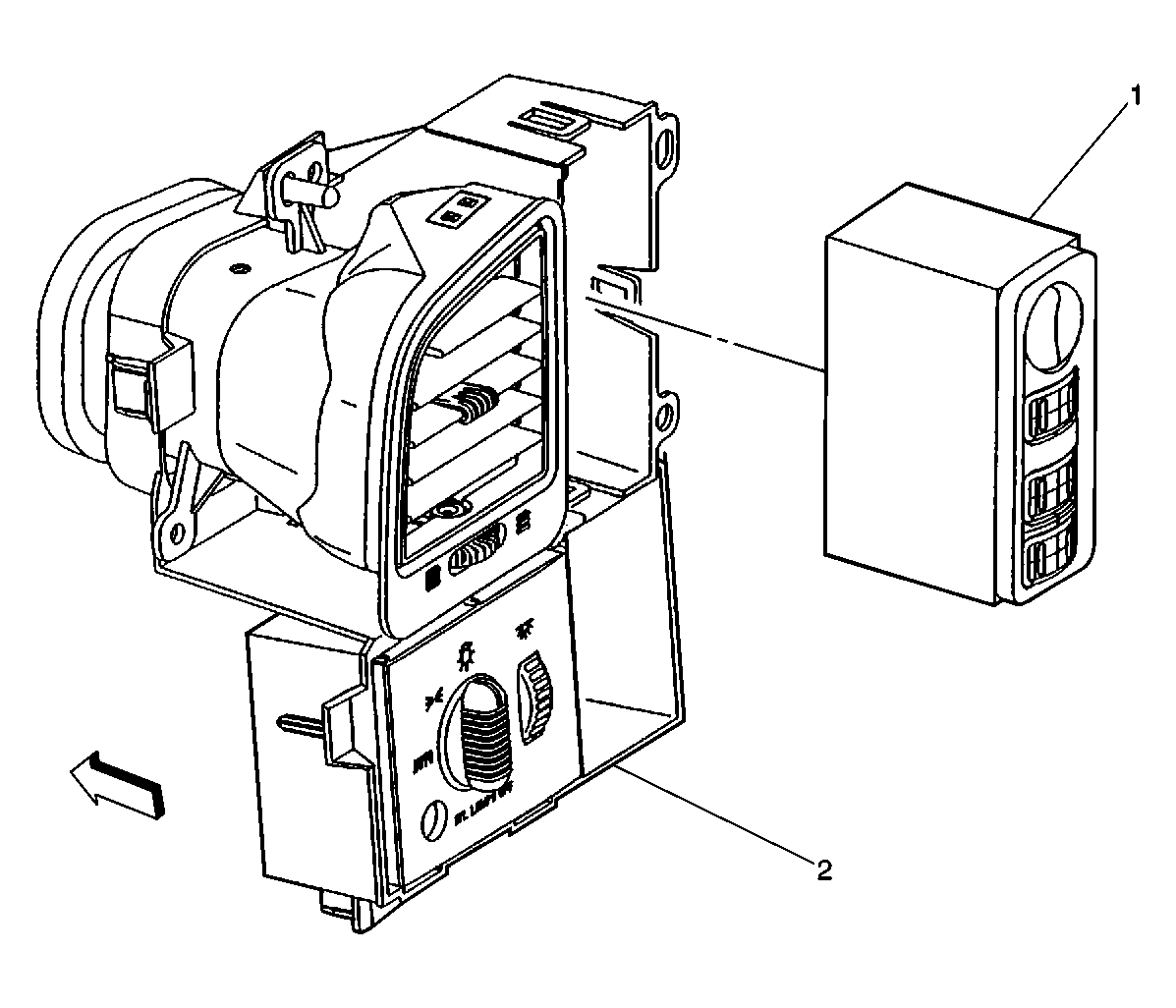

Fig 2: Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch
2	Instrument Panel Switch and Deflector Housing

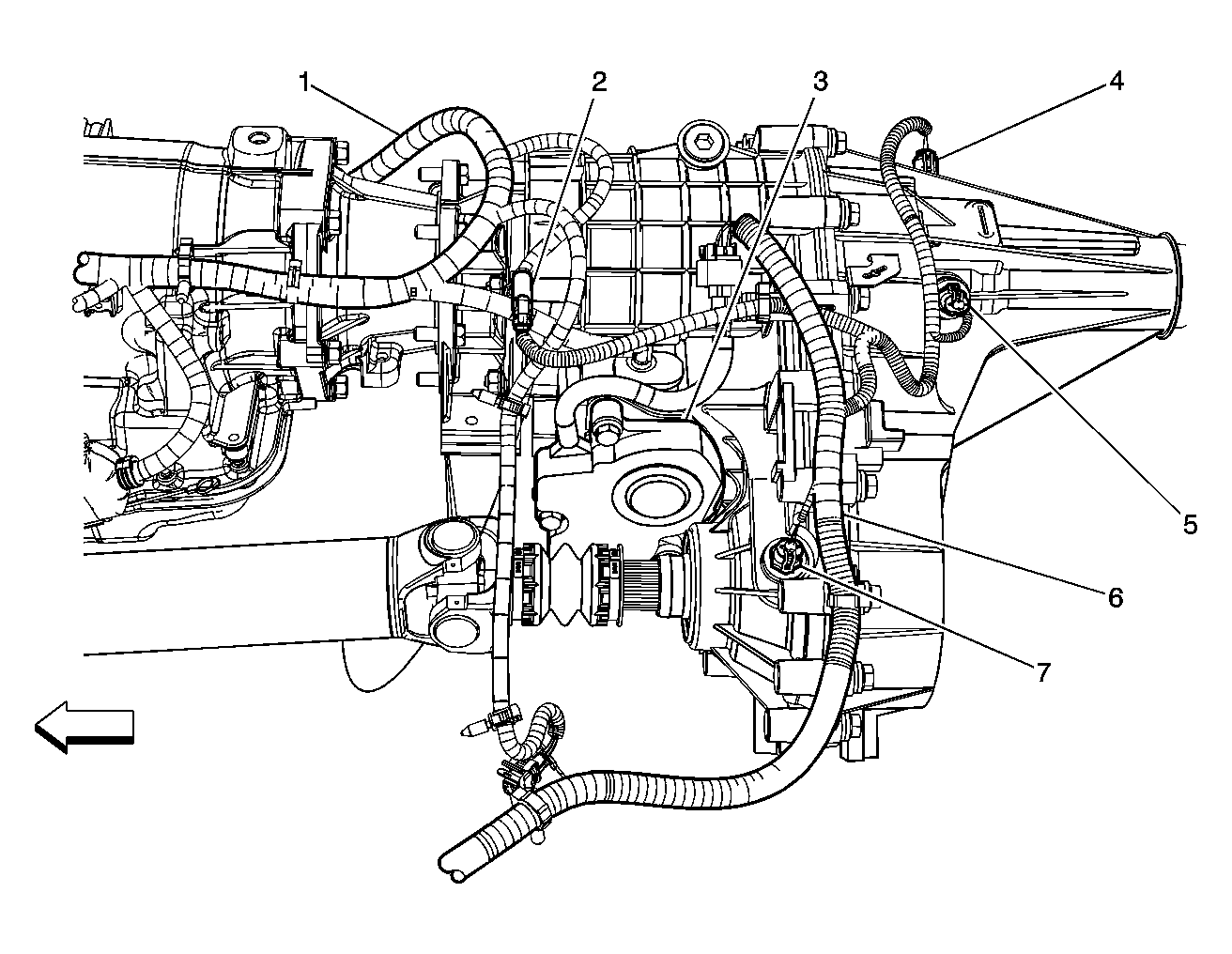

Fig 3: Transfer Case (NVG 236/246 NP8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	C350 Transfer Case Harness to Engine Harness
3	Transfer Case Encoder Motor
4	Vehicle Speed Sensor (VSS)
5	Propshaft Speed Sensor-Rear
6	Transfer Case Harness
7	Propshaft Speed Sensor-Front

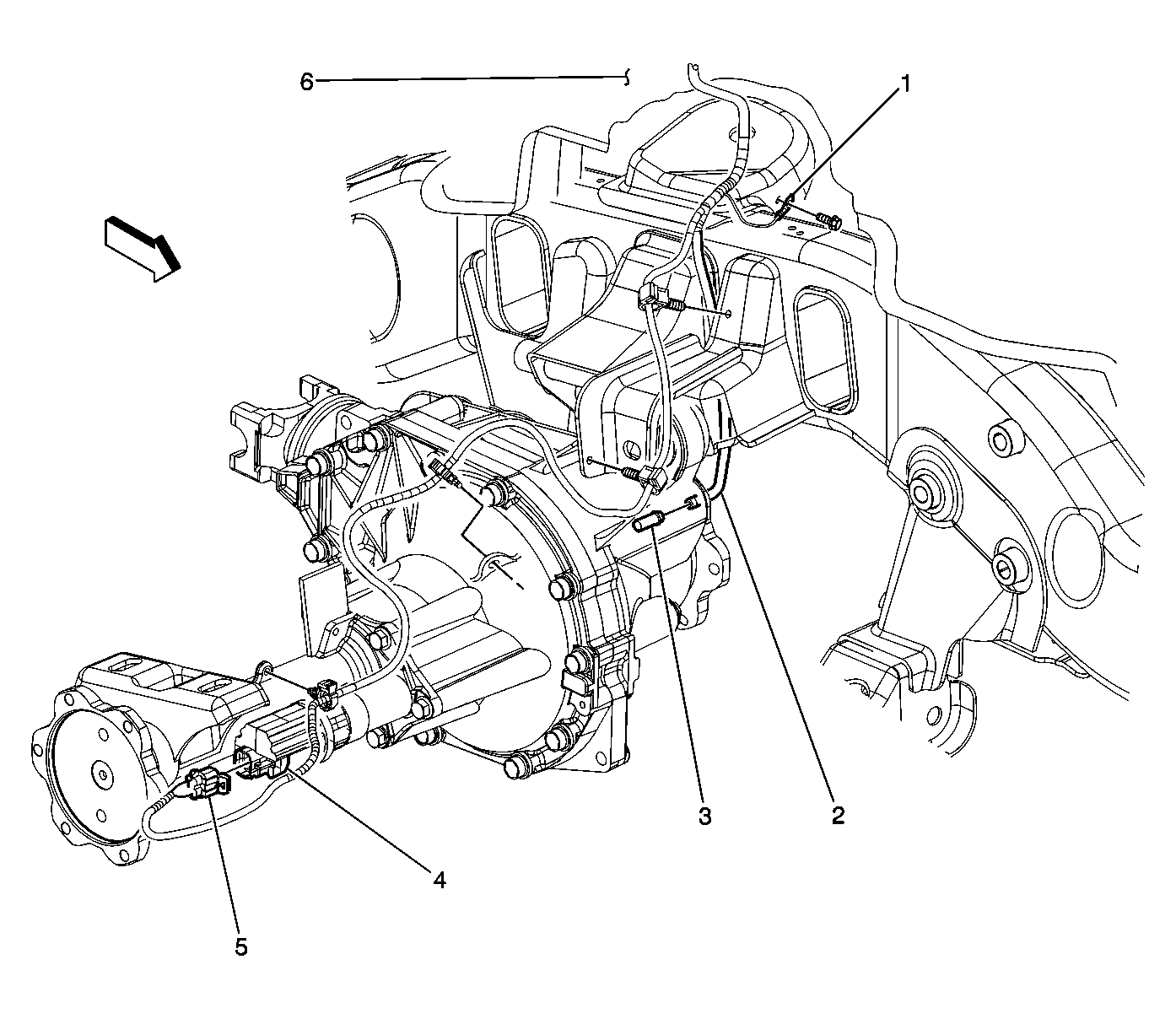

Fig 4: Front Drive Axle Harness Routing (K25 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground 110 (G110)
2	Vent Tube
3	Vent Tube Connection
4	Front Axle Actuator
5	Front Axle Actuator Connector
6	Left Inner Fender

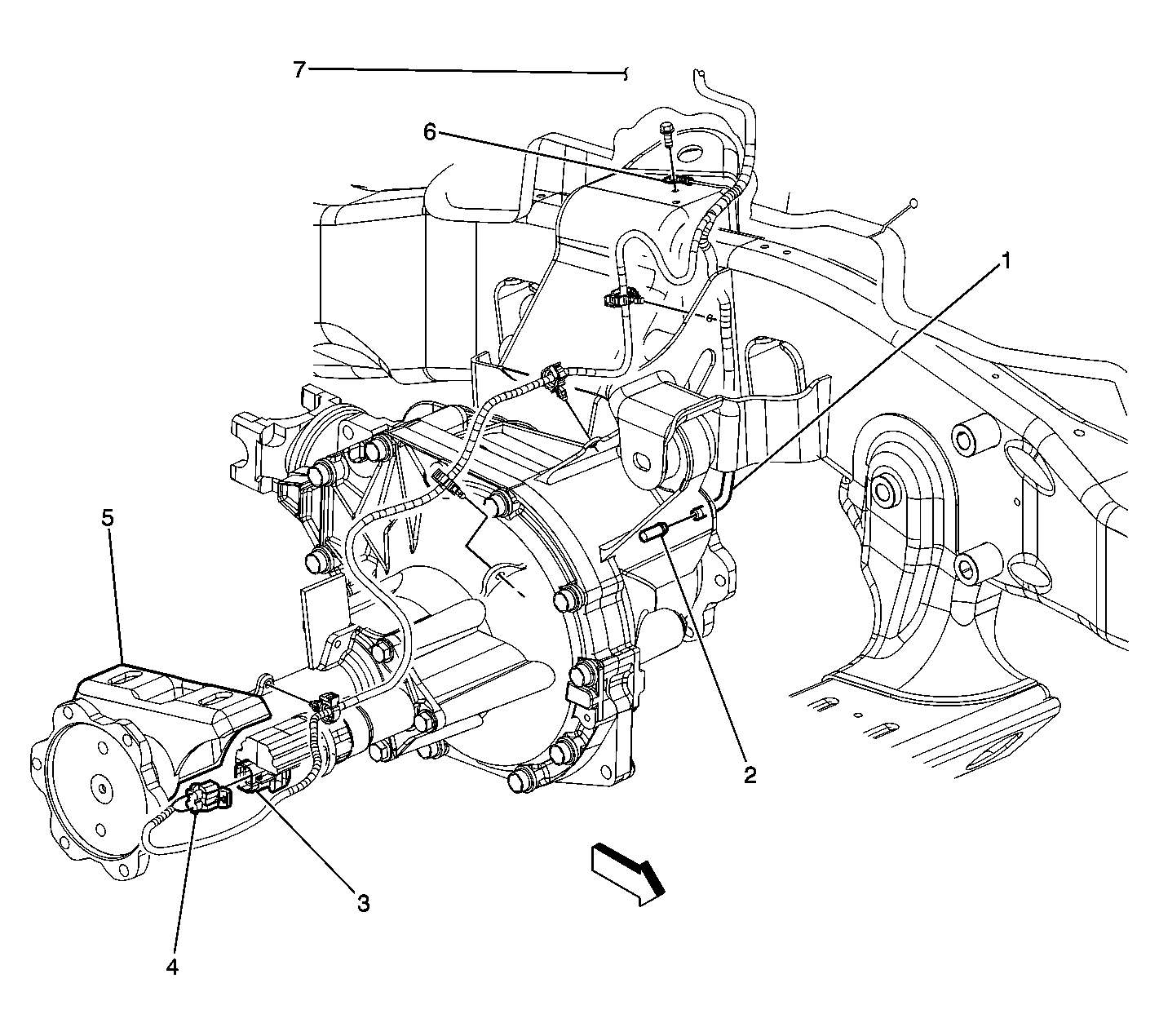

Fig 5: Front Drive Axle Harness Routing (K15 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vent Tube
2	Vent Tube Connection
3	Front Axle Actuator
4	Front Axle Actuator Connector
5	Front Drive Axle Assembly (Mount)
6	Ground 110 (G110)
7	Left Inner Fender
